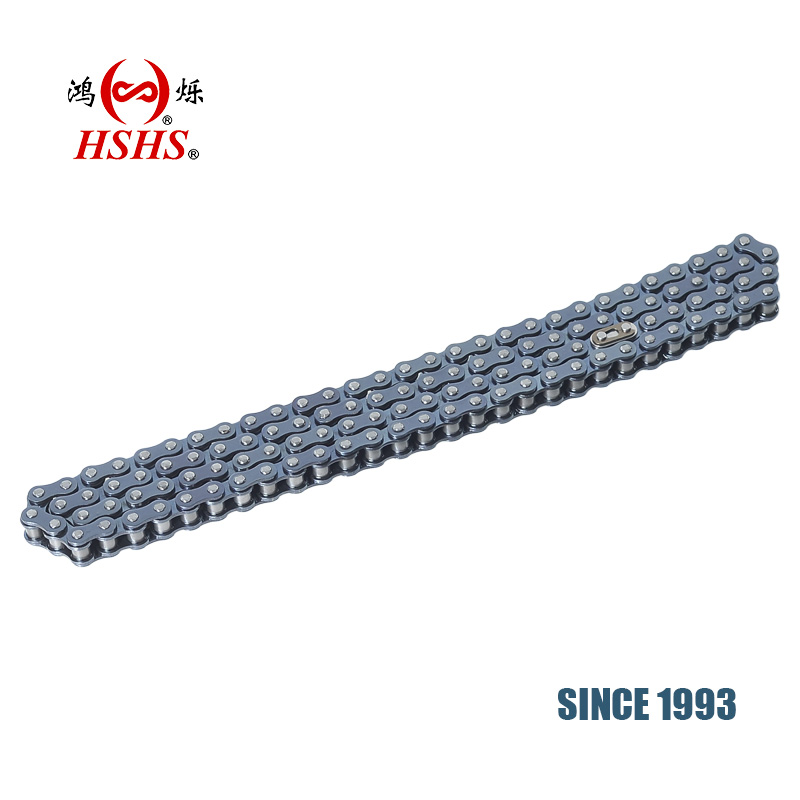

Motorcycle Transmission Roller Chain
This motorcycle transmission roller chain is designed for efficient power transfer and durability. The chain is constructed with precision-engineered rollers and side plates to ensure smooth operation and reduced friction.
Technical Specifications
Overview
High-Performance Transmission Chain
This motorcycle transmission roller chain is precision-engineered for efficient power transfer and enhanced durability. Designed to meet or exceed standard requirements, it ensures smooth operation and reduced friction under demanding riding conditions. Built from high-quality materials, this chain is an ideal solution for replacing worn components to maintain reliable motorcycle performance.
Technical Specifications
Chain Dimensions Table
| Metric | Value |
|---|---|
| Pitch (p) | 12.70 mm |
| Width Between Inner Plates (b1) | 7.85 mm |
| Roller Diameter (d1) | 8.51 mm |
| Plate Thickness (t/T) | 2.00 mm |
| Plate Height (h2) | 11.80 mm |
| Pin Diameter (d2) | 4.45 mm |
| Pin Length (L) | 18.80 mm |
| Connect Pin Length (Lc) | 19.90 mm |
Performance Metrics
Tensile Strength
20.6 kN
Min Tensile Strength
23.4 kN
Average Tensile Strength
- Approx. Unit Weight
- 0.79 kg/m
General Information
Material Options
Carbon SteelStainless Steel
- Certifications
- ISO 9001:2015
- Standard
- 428H-1R
Logistics
- Supply Ability
- 10000 Meters Per Month
- Lead Time
- Within 45 Days
