Motor Thermal Overload Relay
Thermal overload relays protect electric motors from overheating, preventing damage from overload or phase failure. These relays feature adjustable current settings, trip indication, and reset functions for reliable motor protection in industrial applications.
Technical Specifications
Product Overview
Industrial Motor Protection
These thermal overload relays are designed to protect electric motors from critical overheating caused by overload or phase failure. Featuring adjustable current settings, these units offer precise protection tailored to various motor sizes. The inclusion of test and reset functions, along with trip indication, ensures reliable performance and easier maintenance in demanding industrial control systems.
Technical Specifications
Auxiliary Contacts
- 95-NC-96
- 97-NO-98

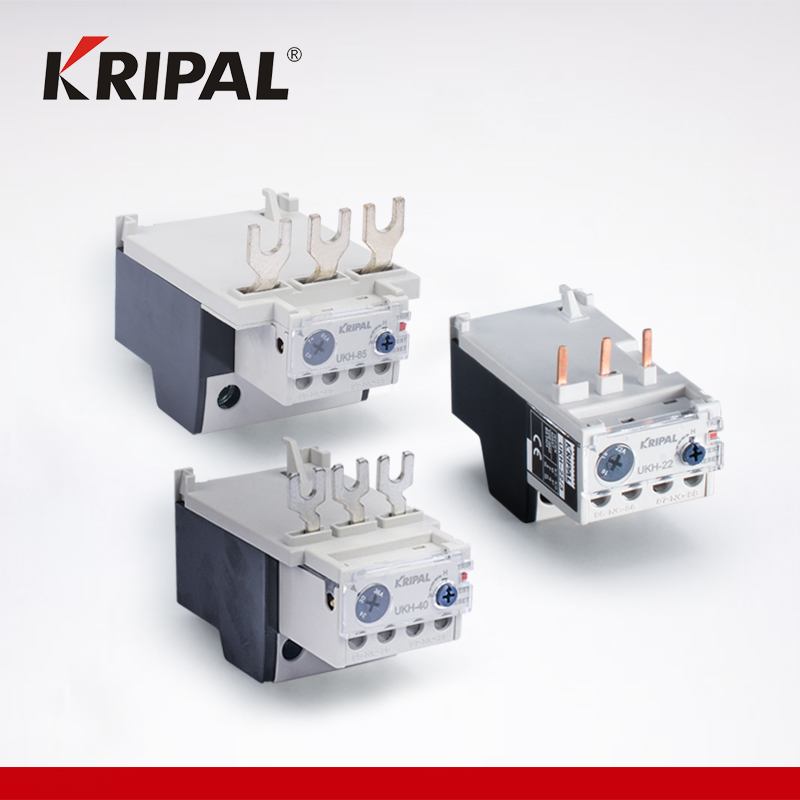

Model Configurations
| Model ID | Current Range |
|---|---|

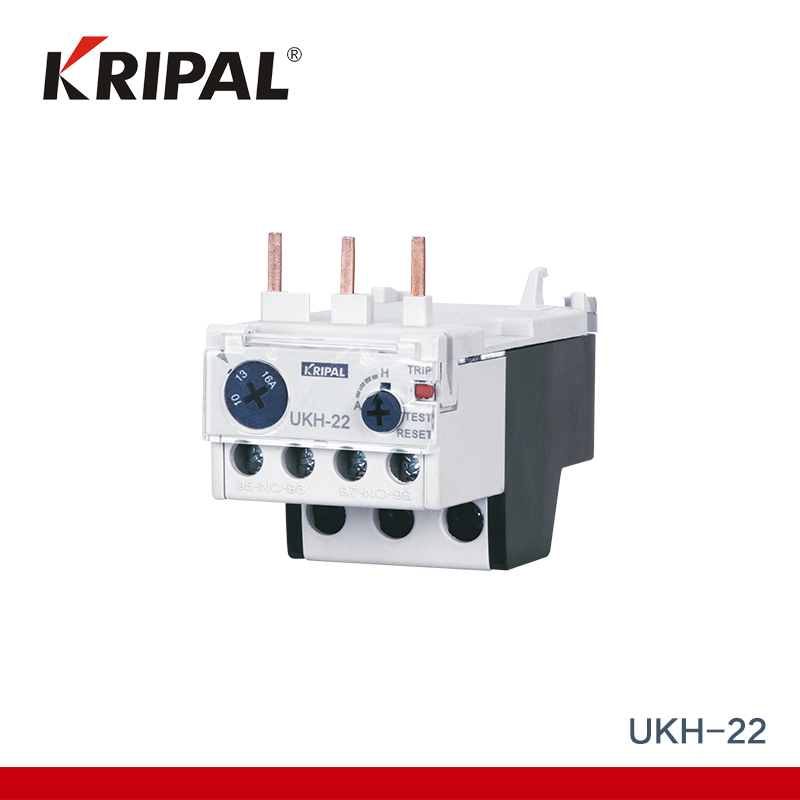

| UKH-22 | 10-16A |
| UKH-40 | 28-40A |
| UKH-85 | Not specified |
- Protection Capabilities
- Overload ProtectionPhase Failure ProtectionTrip IndicationManual ResetAutomatic ResetTest Function
