Motor Control Kit for Switchgear Systems
This motor control kit is designed for use with SafeRing, Safeplus, and Safeair systems. It facilitates remote control and monitoring of electrical equipment, enhancing safety and operational efficiency.
Technical Specifications
Overview
Intelligent Motor Control Kit

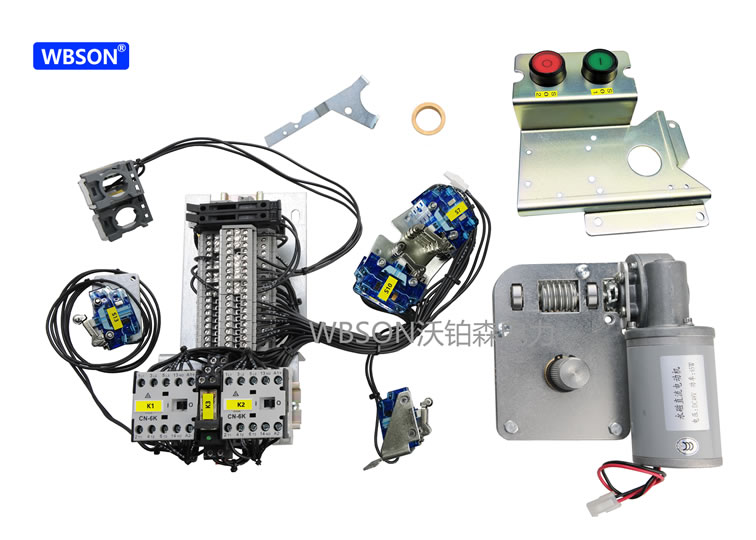

This motor control kit is designed for intelligent gas-insulated medium-voltage switchgear systems. It enables both electric and manual energy storage for switchgear mechanisms, supporting remote and local switching operations. The solution includes a motor unit, transmission device, control unit, and patch cord unit, facilitating quick installation and integration with DTU/RTU systems.
Technical Specifications
- Applicable Voltage
- DC 24VDC 48VDC 110VDC 220VAC 110VAC 220V
- Electric Operating Device Code
- WBS010
Compatibility
Supported Mechanism Types
| Code | Description |
|---|---|
| C | Incoming line |
| F | Outgoing line |
| V | Circuit breaker |
| SL | Bus |
Model Variants
| Model | Installation Target |
|---|---|

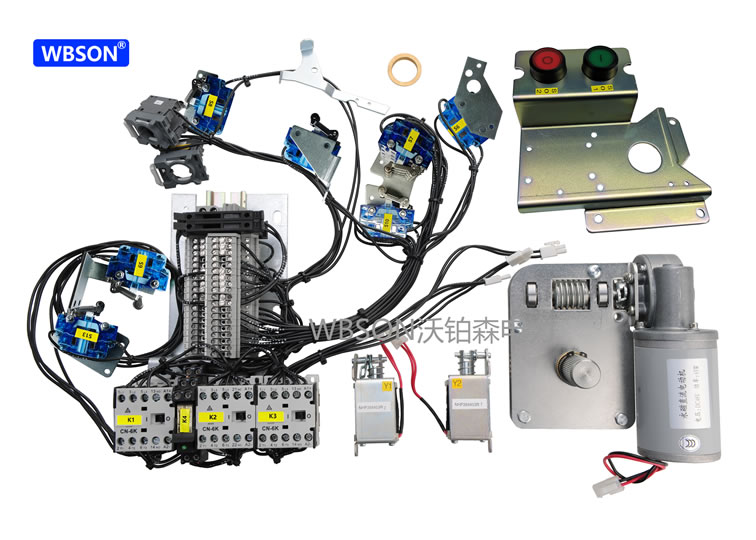

| WBS010-C | SafeRing/Safeplus/Safeair-C |
| WBS010-F | SafeRing/Safeplus/Safeair-F |

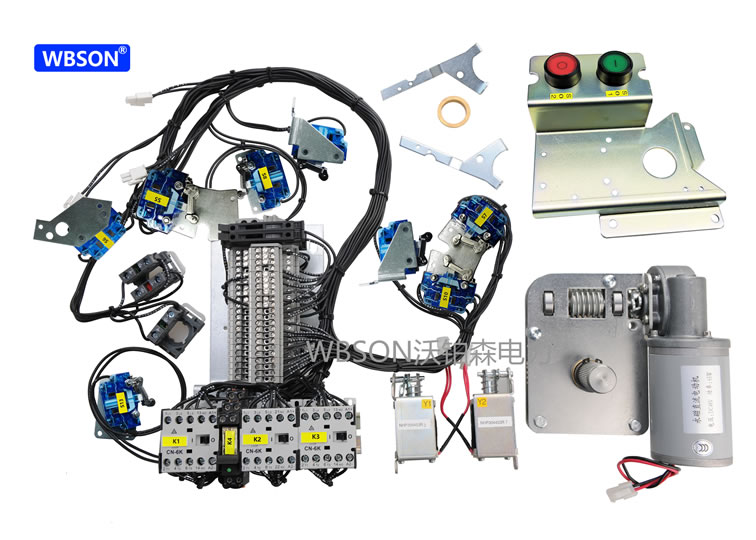

| WBS010-V | SafeRing/Safeplus/Safeair-V |
| WBS010-SL | SafeRing/Safeplus/Safeair-SL |
| WBS010-SvBr | SafeRing/Safeplus/Safeair-SvBr |
- Compatible Switchgear Series
- SafeRingSafeplusSafeair
Features
Key Operational Capabilities
- Remote and local switching
- Local opening and closing operations
- Local indication of switch status
- Remote signaling of load, grounding, and fuse status
- Direct application to DTU and RTU
