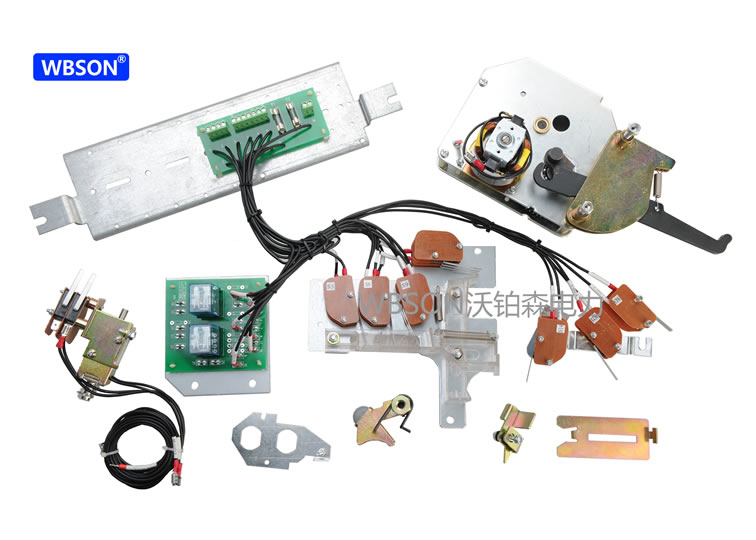

Motor Control Kit for SM6 Switchgear
This motor control kit enables electric operation of energy storage spring mechanisms in SM6 switchgear and SC6 load switches. It supports remote and local switching while indicating the status of load switches, grounding switches, and fuses.
Technical Specifications
Overview
Advanced Motor Control Solution
This motor control kit is specifically engineered for SM6 and SC6 switchgear systems, facilitating reliable electric opening and closing of energy storage spring operating mechanisms. Designed with precision, it features an independently developed motor with high torque and a durable transmission system made from engineering plastics. The control unit utilizes an integrated circuit board with plug-in wiring, ensuring efficient installation and simplified secondary wiring work for professional operators.
Technical Specifications
Supported Voltages
- DC 24V
- DC 48V
- DC 110V
- DC 220V
- AC 110V
- AC 220V
- Device Code
- WBS030
Application & Compatibility
Compatible Cabinets
| Cabinet Type | Model Code |
|---|---|

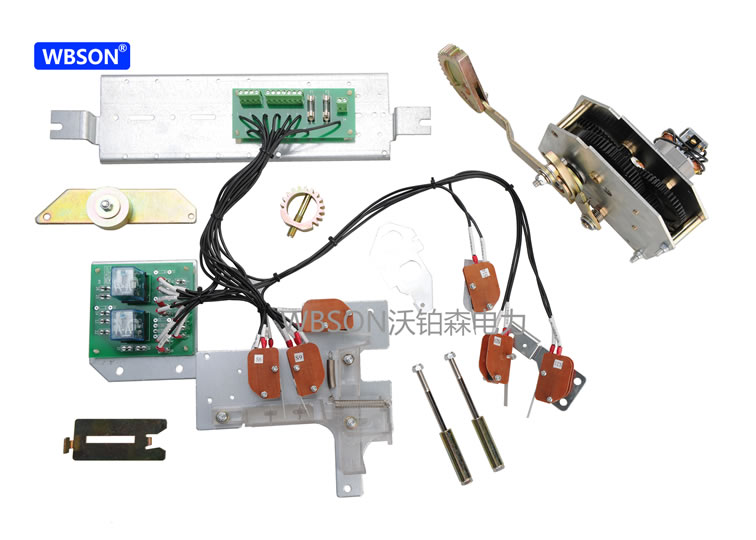

| Incoming Line | IM |
| Outgoing Line | QM |
Features
Status Monitoring
- Load switch status
- Grounding switch status
- Fuse status
- Operational Capabilities
- Remote SwitchingLocal SwitchingLocal IndicationRemote Signaling
