Advanced Motor Control Solution

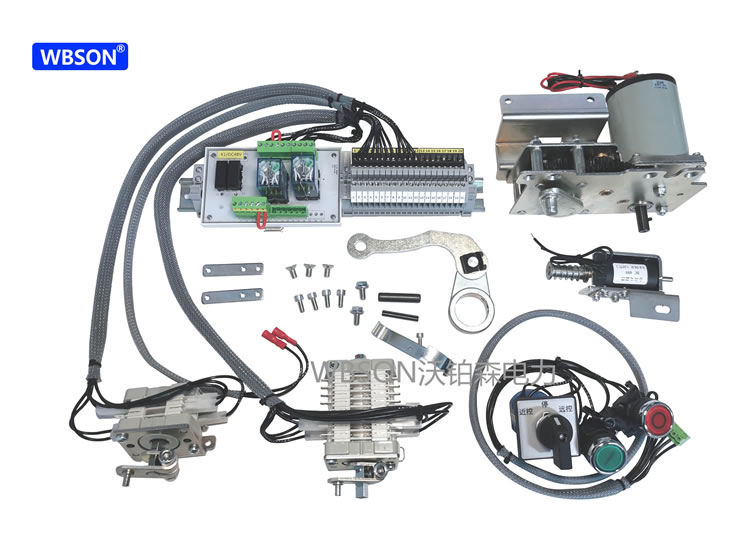

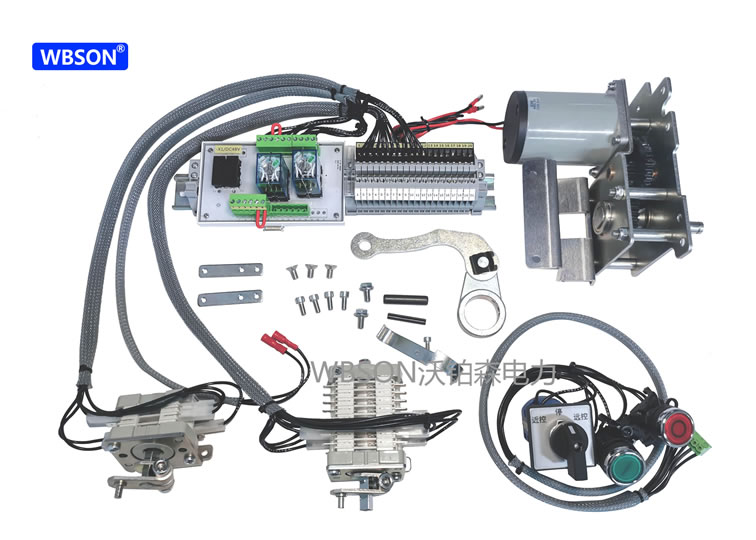

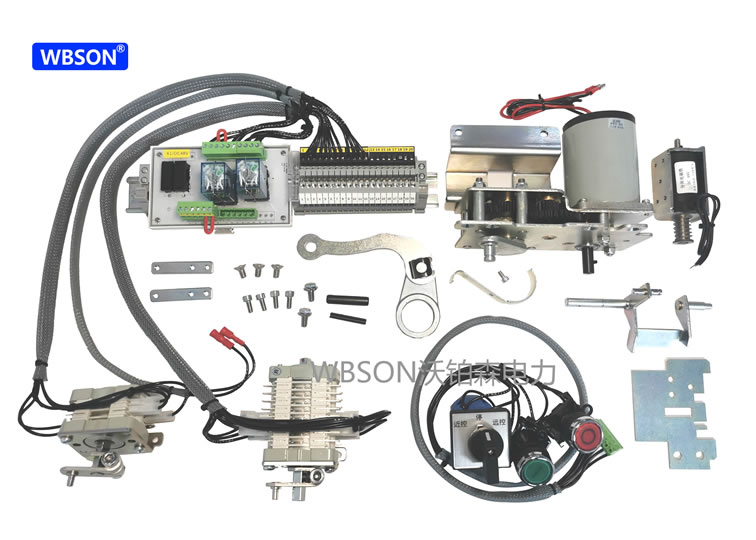

This motor control kit is specifically engineered for Schneider RM6-S intelligent SF6 insulated medium voltage ring main units. Designed for efficiency and durability, the system features a high-torque motor and robust transmission components made from aluminum alloy and engineering plastics. It enables seamless remote and local switching, as well as real-time status monitoring for load switches, grounding switches, and fuses, significantly enhancing operational automation.
Technical Specifications
- Device Code
- WBS041
- Applicable Voltages
- DC 24VDC 48VDC 110VDC 220VAC 110VAC 220V
Compatibility
RM6-S Cabinet Compatibility
| Model Variant | Compatible Cabinet Type |
|---|---|
| WBS041-I | RM6-S-I (Incoming Line) |
| WBS041-Q | RM6-S-Q (Outgoing Line) |
| WBS041-B | RM6-S-B (Circuit Breaker) |
Operational Features
Control Functions
- Remote/local switching
- Local opening and closing operations
- Load switch status monitoring
- Grounding switch status monitoring
- Fuse status monitoring
- Remote signaling for RTU integration
Installation Advantages
- Plug-in wiring method for high efficiency
- No adjustment required during installation
- Simplified secondary wiring process
- Integrated circuit board control
