Motor Control Kit for 8DJH/SIMOSEC12 Systems

This motor control kit is designed for intelligent gas-insulated medium-voltage SIMOSEC12/8DJ20 switchgear. It is equipped with a motor unit, transmission device, control unit, and plug-in unit.

Request a Quote Download PDFPDF

Motor Control Kits WBS060,Apply to 8DJH/SIMOSEC12 - Image 1

Technical Specifications

Overview

Intelligent Motor Control Solution

This motor control kit is engineered for intelligent gas-insulated medium-voltage switchgear, facilitating the electrical opening and closing of energy storage mechanisms. It provides a comprehensive solution for remote and local switching operations, as well as remote signaling for load switches, grounding switches, and fuse status. Designed for rapid deployment, the system allows for simplified secondary wiring, significantly reducing installation time.

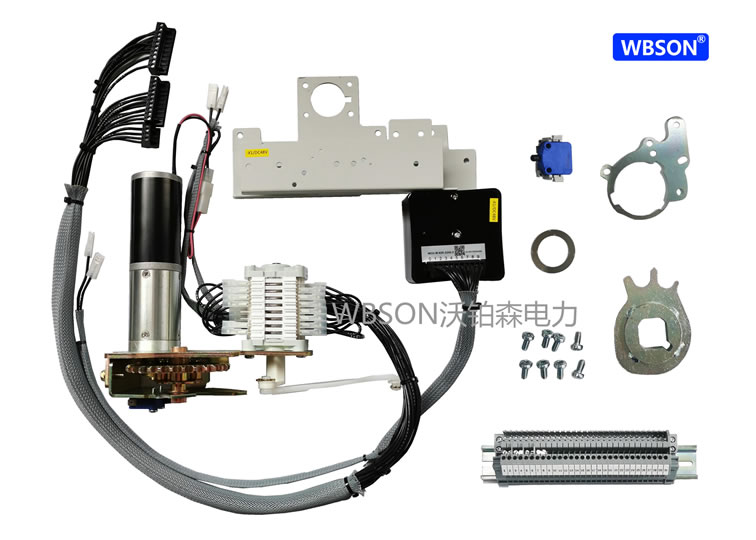

Motor control kit components including motor, control unit, and wiring harness — Comprehensive motor control kit components for 8DJH/SIMOSEC12 systems.

Technical Parameters

Operating Voltage: DC 24VDC 48VDC 110VDC 220VAC 110VAC 220V
Device Code: WBS060

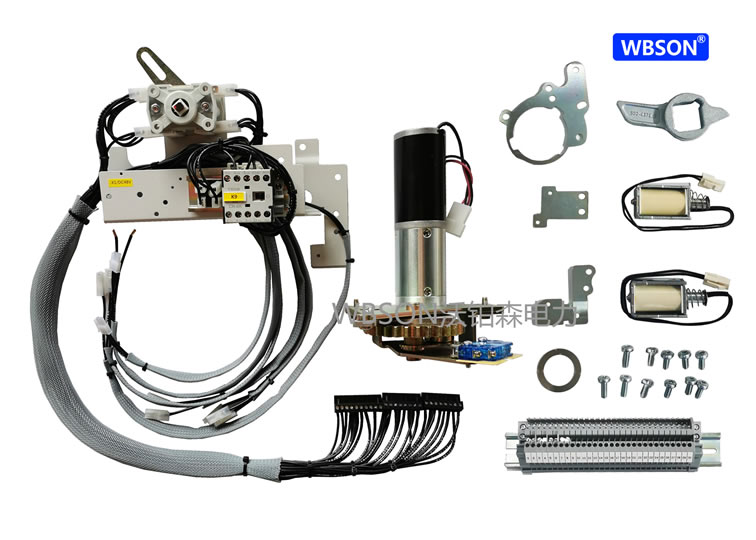

Motor control kit showing solenoid actuators and terminal blocks — Detailed view of the motor control kit hardware, including solenoid actuators and terminal blocks.

Compatibility

Mechanism Types

Code	Function
R	Incoming Line
T	Outgoing Line
L	Circuit Breaker

Supported Series: 8DJH / SIMOSEC12

Features

Operational Capabilities

Remote/local switching operation
Local opening and closing control
Local status indication
Remote signaling of load switch status
Remote signaling of grounding switch status
Remote signaling of fuse status
Direct application to DTU and RTU

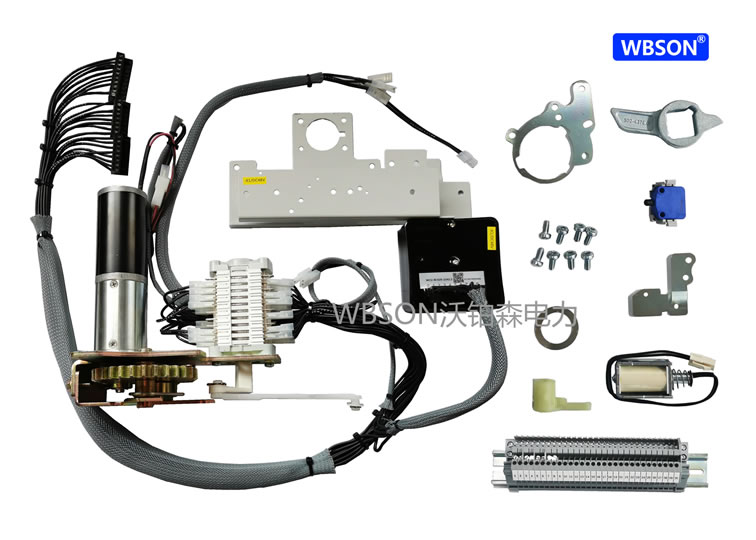

Motor control kit showing gear assembly and control module — Precision motor control unit and gear assembly for transmission and distribution applications.
