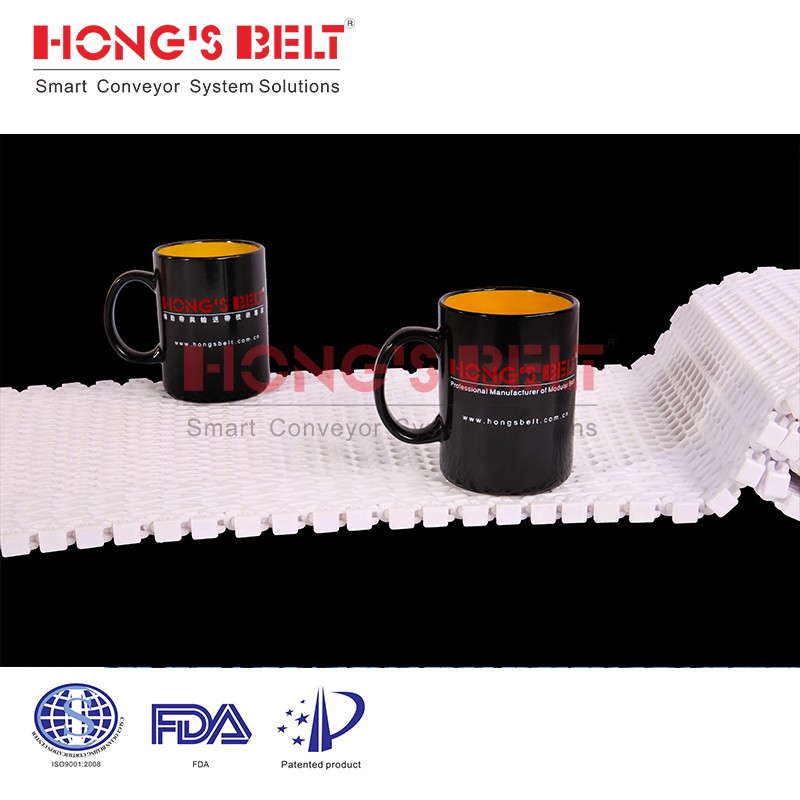

Modular Plastic Radius Conveyor Belt for Food Processing
This modular plastic conveyor belt features a radius flush grid design. It is suitable for food processing applications, offering easy assembly, disassembly, and maintenance.
Technical Specifications
Overview
High-Performance Radius Conveyor Belt
This modular plastic conveyor belt is engineered specifically for demanding food processing environments. Featuring a radius flush grid design, it allows for smooth transfers and curved layouts, optimizing production floor space. Constructed from durable, food-grade materials, the belt is easy to clean, maintenance-free, and capable of handling significant loads up to 1.2 tons per square meter.
Physical Specifications
Available Colors
WhiteBlueGrayNatureDark-brown
- Pitch
- 25.4 mm
- Thickness
- 12.7 mm
- Minimum Width
- 301 mm
- Open Area
- 42 %
- Rod Diameter
- 4.5 mm
- Available Materials
- PPPOMPEPA
Performance & Compliance
Maximum Load Capacity
1.2 tons/m²
Max Load
- Working Temperature
- -40°C to 260°C
- Compliance
- FDA ApprovedEU Compliant
Configuration
Sprocket Dimensions
- 12T
- 18T
- 24T
- Bore Types
- Square BoreRound Bore
Applications
Industry Applications
| Sector | Details |
|---|---|
| Food Industry | Meat, Poultry, Seafood, Bakery, Snacks, Produce |
| Non-food Industry | Automotive, Packaging, Paper, Postal, Textile |
