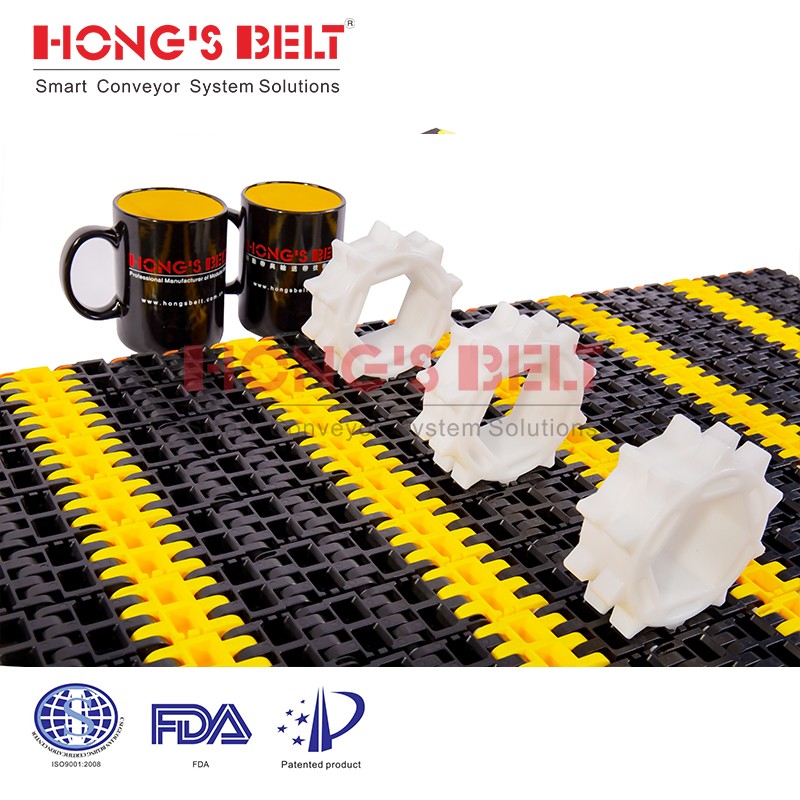

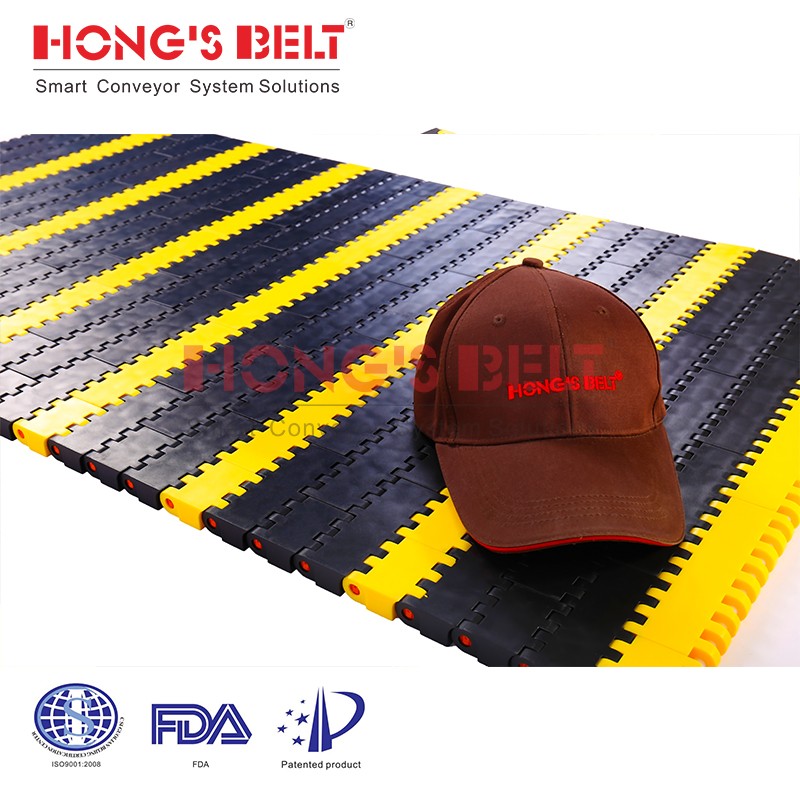

Modular Plastic Conveyor Belt HS-6800A
The HS-6800A is a modular plastic conveyor belt designed for the automotive industry. It features a 38.1mm pitch, is 19mm thick, and is constructed from materials including PP, POM, PE, and PA.
Technical Specifications
Product Overview
High-Performance Modular Conveyor Belt
This modular plastic conveyor belt is engineered for demanding industrial environments, particularly within the automotive and food processing sectors. Its robust interlocking design allows for easy customization and maintenance, while the high-quality plastic construction ensures exceptional durability and load-bearing capabilities. Designed for seamless integration, this system offers reliable performance, chemical resistance, and a long service life, helping to optimize production workflows and minimize downtime.
Technical Specifications
Available Colors
WhiteBlueGrayNatureDark-brown
- Pitch
- 38.1 mm
- Thickness
- 19 mm
- Minimum Width
- 50.2 mm
- Open Area
- 0%
- Rod Diameter
- 8 mm
- Material Composition
- PPPOMPEPA
Performance Metrics
Maximum Load Capacity
1.2 tons/sqm
Max Load
- Working Temperature
- -40°C to 260°C
- Regulatory Compliance
- FDAEU
Configuration
Sprocket Dimensions
- Sprocket Size: 10T
- Bore Types: Square and Round
Design Features
| Feature | Status |
|---|---|
| Flight | No |
| Side Guard | No |
| Curve | No |
Applications
Suitable Industries
- Food Industry (Meat, Poultry, Seafood, Bakery, Snack Food, Produce)
- Automotive Manufacturing
- Tire Manufacturing
- Packaging
- Printing & Paper
- Postal Services
- Corrugated Cardboard
- Can Manufacturing
- PET Manufacturing
- Textile
