Technical Specifications
Overview

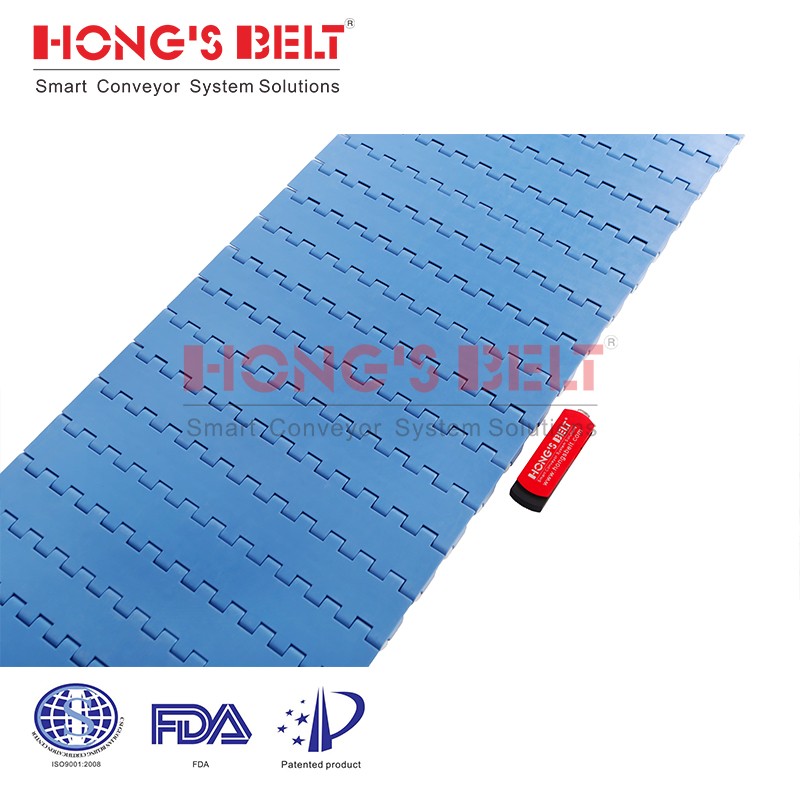

Modular Plastic Conveyor Belt
This modular plastic conveyor belt is engineered specifically for demanding food processing environments. Designed for efficiency and hygiene, it features a robust modular construction that allows for easy assembly, disassembly, and maintenance, significantly reducing operational downtime. With food-grade materials and a design that supports thorough cleaning, it provides a reliable solution for conveying everything from raw meat and poultry to bakery and snack food items.
Technical Specifications
- Model Type
- HS-2500A
- Pitch
- 25.4 mm
- Thickness
- 10 mm
- Minimum Width
- 50 mm
- Rod Diameter
- 4.9 mm
- Open Area
- 0%
- Available Materials
- PPPOMPEPA
- Available Colors
- WhiteBlueGrayNatureDark-brown
Performance
Maximum Load Capacity
1.2 tons/m²
Max Load
- Working Temperature
- -40°C to 260°C
Features
Standards Compliance
FDA ApprovedEU Approved
Key Features
- Floating in water
- Food defrosting capable
- Maintenance-free
- Easy to clean
- Flight included
- No side guard
- Non-curving
Compatibility

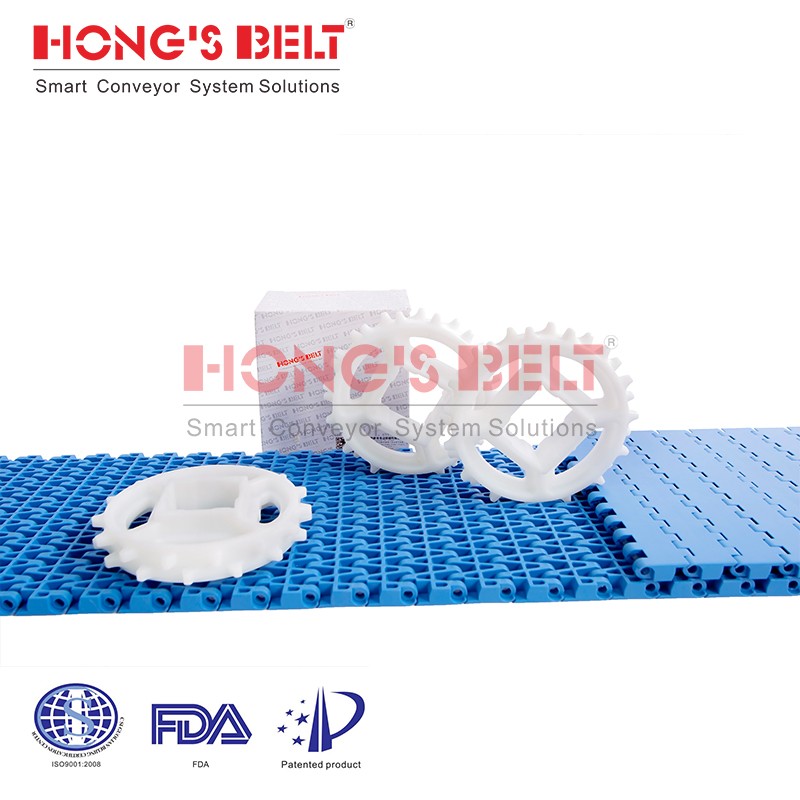

Sprocket Dimensions
| Specification | Details |
|---|---|
| Sprocket Sizes | 8T-2R, 10T-2R, 12T-2R, 15T-2R, 18T-2R, 20T-2R, 20T-2R-Split |
| Bore Types | Square bore, Round bore |
Applications
Suitable Industries
- Meat (beef & pork)
- Poultry
- Sea Food
- Bakery
- Snack Food
- Fruit & vegetables
- Automotive
- Tire manufacturing
- Packaging
- Printing/Paper
- Postal
- Corrugated cardboard
- Can manufacturing
- PET manufacturing
- Textile
