Technical Specifications
Overview

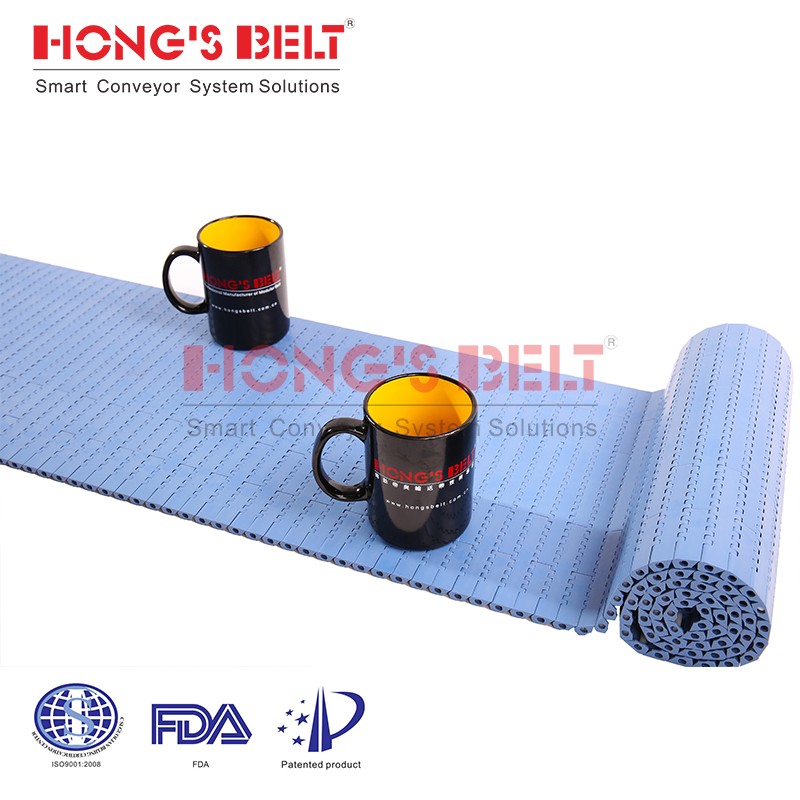

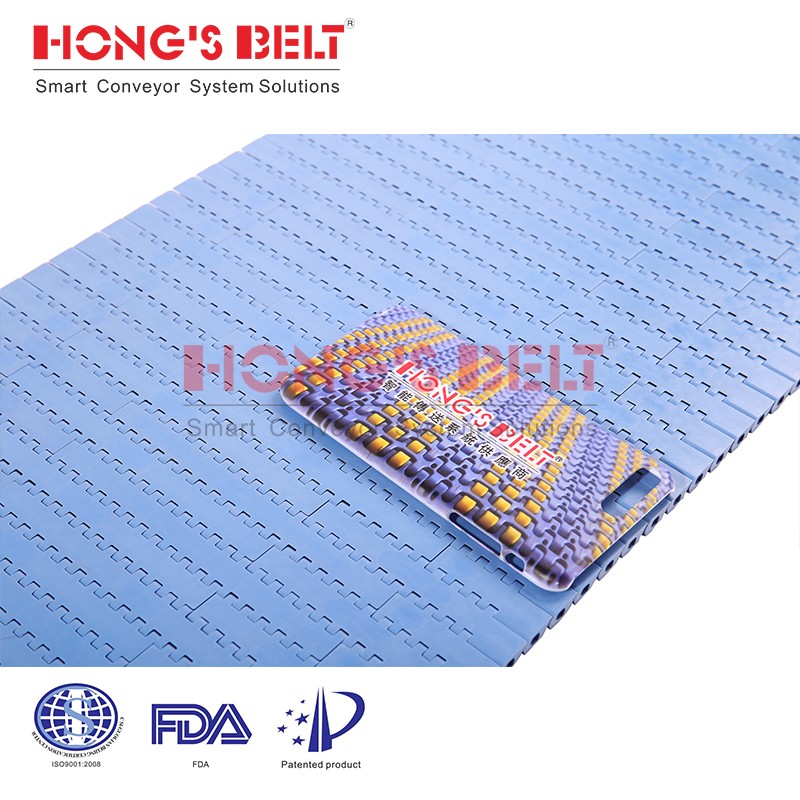

High-Performance Modular Conveyor Belt
This modular plastic conveyor belt is engineered for demanding food industry environments, offering exceptional durability and hygiene. Its design facilitates easy cleaning and maintenance, with a non-porous surface that prevents bacterial buildup. Capable of handling loads up to 1.2 tons per square meter, this belt provides a reliable solution for conveying everything from raw ingredients to finished packaged goods.
Technical Specifications
Belt Dimensions
15.2 mm
Pitch
8.8 mm
Thickness
152 mm
Minimum Width
4.5 mm
Rod Diameter
Performance Metrics
0 %
Open Area
1.2 tons/m²
Max Load Capacity
Available Sprocket Dimensions
- 12T
- 16T
- 24T
- 32T
- 18T-2R
- 32T-2R
- Working Temperature
- -40°C to 260°C
Features & Materials
Available Colors
WhiteBlueGrayNatureDark-brown
Certifications
FDAEU Approved
Design Features
| Feature | Status |
|---|---|
| Flight | Yes |
| Side Guard | No |
| Curve | No |
- Material Options
- PPPOMPEPA
Applications
Industry Applications
| Category | Industries |
|---|---|
| Food Industry | Meat, Poultry, Sea Food, Bakery, Snack Food, Fruit & Vegetables |
| Non-food Industry | Automotive, Tire, Packaging, Printing, Postal, Corrugated, Can, PET, Textile |
