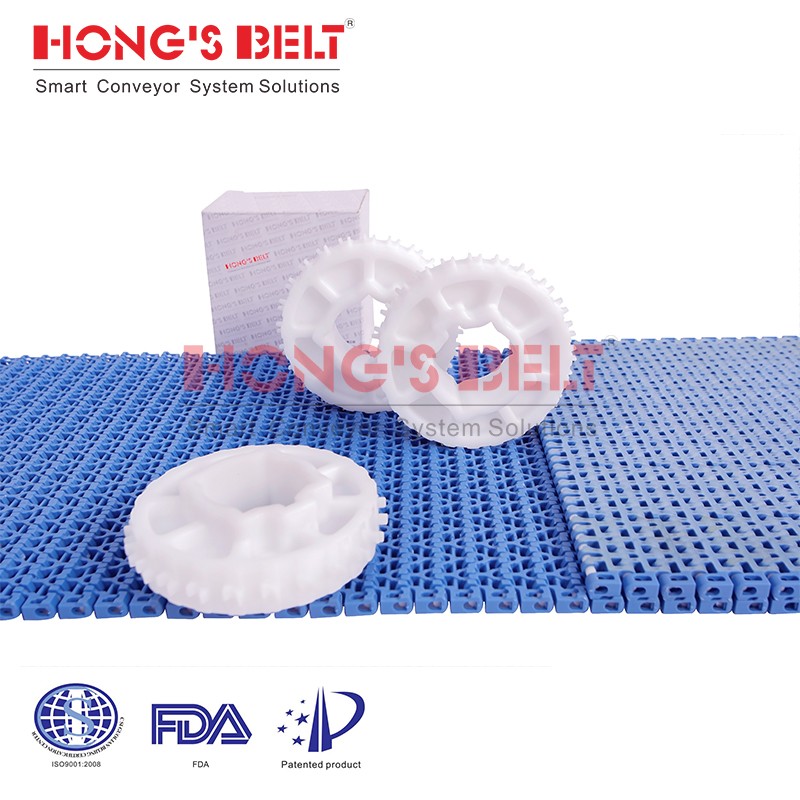

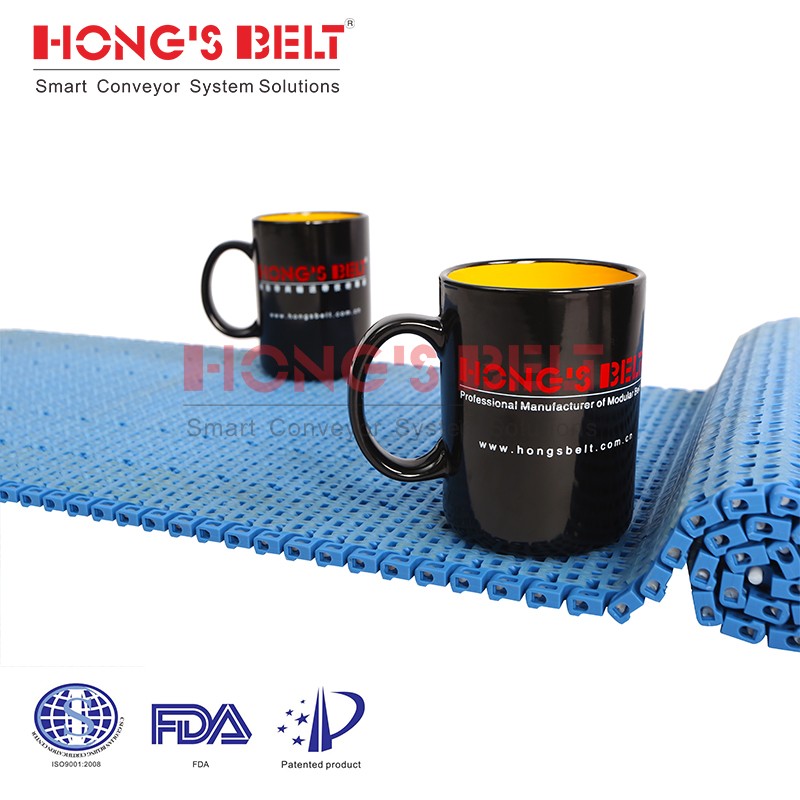

Modular Plastic Conveyor Belt for Food Industry
This modular plastic conveyor belt is designed for the food industry. It is constructed from food-grade materials and offers easy cleaning and maintenance.
Technical Specifications
Product Overview
Modular Plastic Conveyor Belt
This modular plastic conveyor belt is engineered specifically for the food industry, offering a hygienic and durable solution for high-throughput processing lines. Its modular design allows for flexible configurations and simplified maintenance, while the FDA and EU-approved materials ensure compliance with strict food safety standards. With an open area design that facilitates easy cleaning and sanitation, this belt is built to minimize downtime and maximize operational efficiency across various food processing environments.
Technical Specifications
Dimensions
15.2 mm
Pitch
10.9 mm
Thickness
152 mm
Min Width
4.5 mm
Rod Diameter
Material & Design
- Material Options: PP, POM, PE, PA
- Open Area: 28%
- Flight: Included
- Side Guard: Not available
- Curve Capability: Not available
Operational Performance
Operating Conditions
-40 °C
Min Temp
260 °C
Max Temp
1.2 tons/m²
Max Load Capacity
- Available Colors
- WhiteBlueGrayNatureDark-brown
Compliance & Compatibility
Certifications
FDA ApprovedEU Approved
- Sprocket Options
- 12T16T18T-2R24T32T32T-2R
Applications
Industry Applications
| Sector | Examples |
|---|---|
| Food Industry | Meat, Poultry, Seafood, Bakery, Snacks, Fruits & Vegetables |
| Non-Food Industry | Automotive, Packaging, Printing, Postal, Textile, Can & PET Manufacturing |
Advantages
Key Benefits
- Floating capability in water
- Suitable for food defrosting
- Extended service life compared to traditional belts
- Maintenance-free design
- Easy to clean and sanitize
- High load-bearing capacity
