Modular Conveyor Belt for Frozen Spiral Conveyors
This modular plastic conveyor belt is designed for frozen spiral conveyor applications. Its construction allows for easy assembly and maintenance.
Technical Specifications
Overview

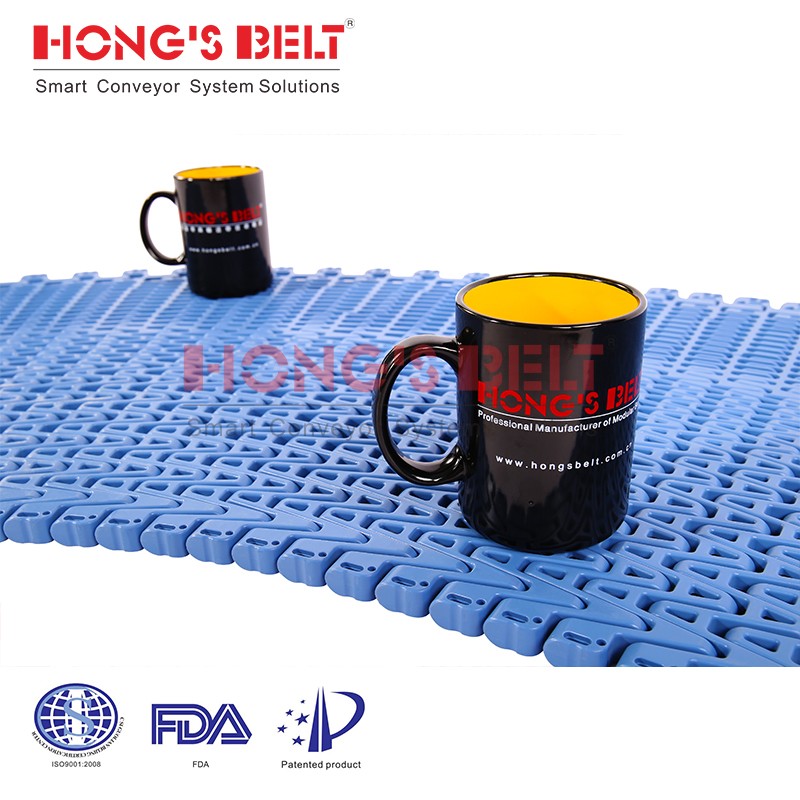

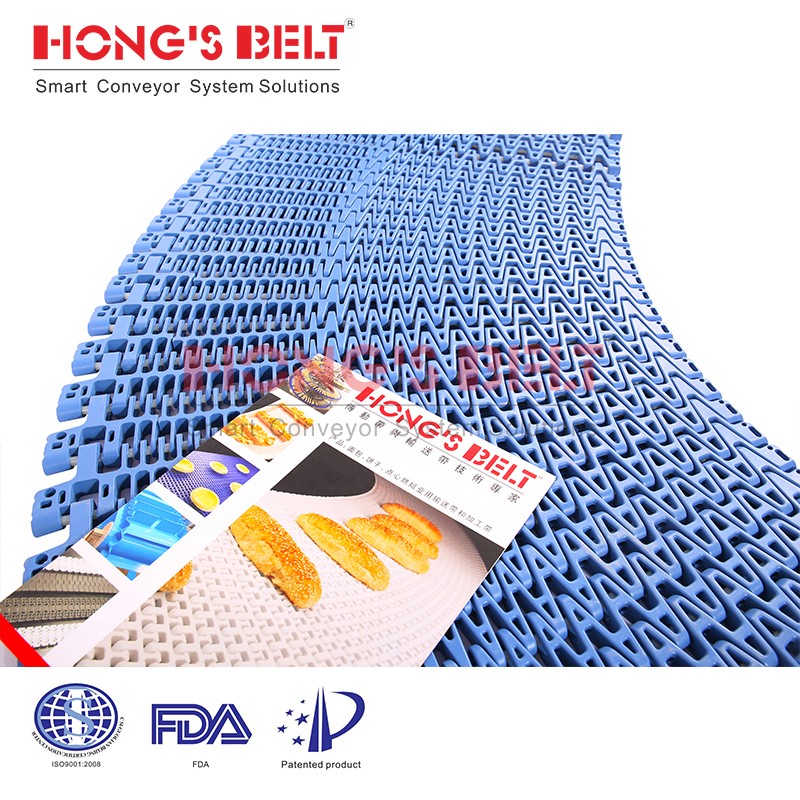

Modular Plastic Conveyor Belt
This modular plastic conveyor belt is engineered specifically for use in frozen spiral conveyor applications. It features a robust design that facilitates efficient airflow and drainage, which is critical for maintaining hygiene and preventing ice buildup in low-temperature environments. With a high load capacity of up to 1.2 tons per square meter, it offers a durable and maintenance-free solution for demanding food processing and industrial conveying tasks.
Technical Specifications
Maximum Load Capacity
1.2 tons/sqm
Max Load
- Pitch
- 50.8 mm
- Thickness
- 15.2 mm
- Minimum Width
- 507 mm
- Rod Diameter
- 6.2 mm
- Open Area
- 0%
- Working Temperature Range
- -40°C to 260°C
Features & Materials
Available Colors
WhiteBlueGrayNatureDark-brown
Design Features
- Curve capable
- No flight
- No side guard
- Material Composition
- PPPOMPEPA
- Regulatory Compliance
- FDAEU
Components
Sprocket Dimensions
| Feature | Specification |
|---|---|
| Sprocket Size | 8T |
| Bore Type | Square Bore |
Applications
Supported Industries
- Meat (beef & pork)
- Poultry
- Sea Food
- Bakery
- Snack Food
- Fruit & vegetables
- Automotive
- Tire manufacturing
- Packaging
- Printing/Paper
- Postal
- Corrugated cardboard
- Can manufacturing
- PET manufacturing
- Textile
