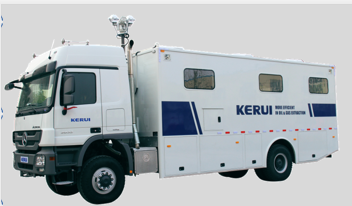

Mobile Wellhead Data Acquisition and Control Unit

Advanced Fracturing Control Center

This mobile data acquisition and control unit serves as the central command hub for fracturing operations, specifically designed for shale gas and coalbed methane extraction. It enables real-time monitoring, recording, and analysis of wellhead data while providing remote control capabilities for fracturing units and blenders. Built for harsh oilfield environments, the unit features a shockproof and sealed design to ensure secure and reliable performance during complex operations.

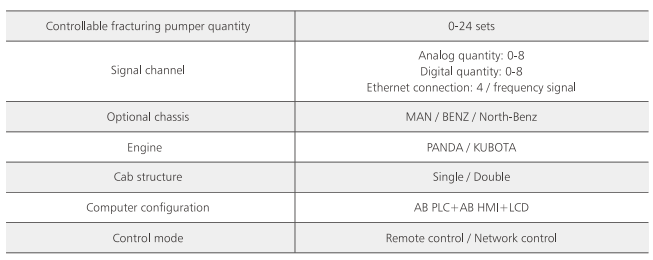

Control Capacity

System Configuration

Input/Output Channels

• Analog quantity: 0-8 channels
• Digital quantity: 0-8 channels
• Ethernet connection: 4 channels
• Frequency signal monitoring

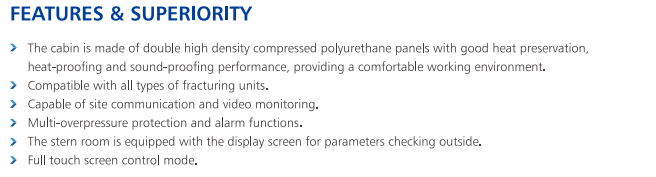

Cabin Design & Comfort

• Double high-density compressed polyurethane panels
• Superior heat preservation and heat-proofing
• Advanced sound-proofing for quiet operation
• Climate-controlled interior for harsh environments
• Shockproof and sealed performance

Smart Automation

The unit utilizes advanced control algorithms for the automatic management of blender levels and density. It integrates seamlessly with fracturing unit engines and gearboxes via a control bus, allowing for precise adjustment and customized operational parameters according to specific site requirements.
