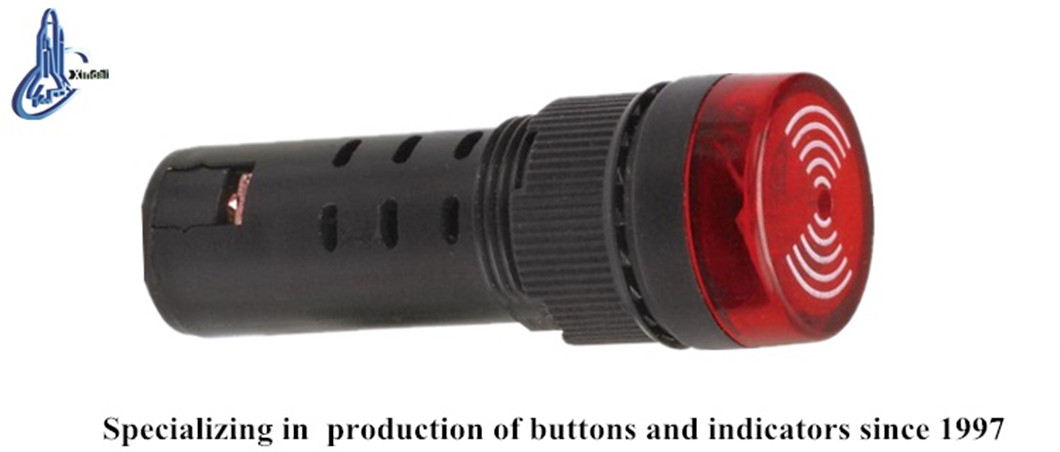

Mini Red LED Indicator Light with Buzzer
This mini LED indicator light provides visual indication with an integrated buzzer for audible alerts. It is designed for panel mounting in various industrial applications.
Technical Specifications
Product Overview
Compact LED Indicator with Integrated Buzzer
The AD22-16MSD is a high-performance mini LED indicator designed to provide both visual and audible signaling in industrial environments. Utilizing a long-life LED chip as its light source, it offers low power consumption and high brightness compared to traditional incandescent lamps. Its compact, short-base design and bolt-type connectors ensure a safe, convenient installation for control panels and machinery.
Key Performance Metrics
Key Performance Metrics
220 V
Rated Voltage
4 mA
Current Consumption
2.5 kV
Dielectric Strength
Technical Specifications
- Insulation Resistance
- ≥2MΩ
- Allowable Voltage Fluctuation
- ±20%
- Light Source Type
- LED Shining Chip
Physical Dimensions
Detailed Dimensions
| Feature | Measurement |
|---|---|
| Head Height | 10mm |
| Thread Length | 13.5mm |
| Body Length | 28mm |
| Base Diameter | 14.2mm |
| Max Panel Thickness | 6mm |
- Mounting Hole Diameter
- 16 mm
- Head Diameter
- 19 mm
Compliance & Standards
- International Standards
- IEC 60947-5-1EN60947-5-1CE
Application Areas
Suitable Industries
- Electrical Power Systems
- Telecommunications
- Machine Tools
- Watercraft & Marine
- Textile Machinery
- Printing Equipment
- Mining Machinery
Product Features
Material Features
- Polycarbonate lampshade with high intensity
- Anti-surge performance
- Bolt-type connector for safety
- Integrated audible buzzer
