Micro Refrigerated Centrifuge H-1600R
The H-1600R micro refrigerated centrifuge is compact and quiet. It is suitable for use in hospitals, scientific research institutes, colleges, and universities.
Technical Specifications
Overview
High-Performance Micro Refrigerated Centrifuge
The H-1600R is a compact, desk-top micro refrigerated centrifuge engineered for precision in medical, scientific research, and academic laboratory settings. It features a frequency motor for reliable operation, low-noise performance, and an intuitive interface with an LCD display. Designed for versatility, it supports multiple rotor configurations and includes advanced safety features like electronic lid locks and imbalance detection to ensure secure, consistent sample processing.
Performance Metrics
- Maximum Speed
- 17000 RPM
- Maximum RCF
- 24320 xg
- Speed Accuracy
- 30 RPM
Temperature Control
- Temperature Setting Range
- -20°C to +40°C
- Temperature Accuracy
- ±1°C
Technical Specifications
- Maximum Capacity
- 10/12 x 5ml
- Time Range
- 10s to 9h 59min 59s
- Noise Level
- 65 dB(A)
- Motor Type
- Frequency motor
- Dimensions
- 560 x 310 x 285 mm
- Weight
- 39 kg
- Voltage Supply
- AC 110V or 230V 50/60Hz
Key Features
Control System
- Microcomputer control
- Touch panel interface
- LCD display for Speed/RCF and time
- Automatic RCF calculation
- 10 programmable memory settings
- Safety Features
- Over-speed protectionImbalance protectionLid safety lockElectronic lockEmergency lid releaseAutomatic alarm

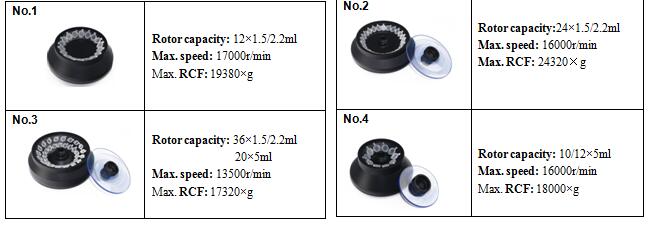

Rotor Options
Available Rotor Configurations
| Rotor Type | Capacity | Max Speed (RPM) | Max RCF (xg) |
|---|---|---|---|
| No.1 | 12 x 1.5/2.2ml | 17,000 | 19,380 |
| No.2 | 24 x 1.5/2.2ml | 16,000 | 24,320 |
| No.3 | 36 x 1.5/2.2ml / 20 x 5ml | 13,500 | 17,320 |
| No.4 | 10/12 x 5ml | 16,000 | 18,000 |
| No.5 | 48 x 0.5ml | 13,500 | 13,650 |
| No.6 | 4 x 8 x 0.2ml PCR strip | 15,000 | 20,010 |
