Metal Sheet Embossing Machine

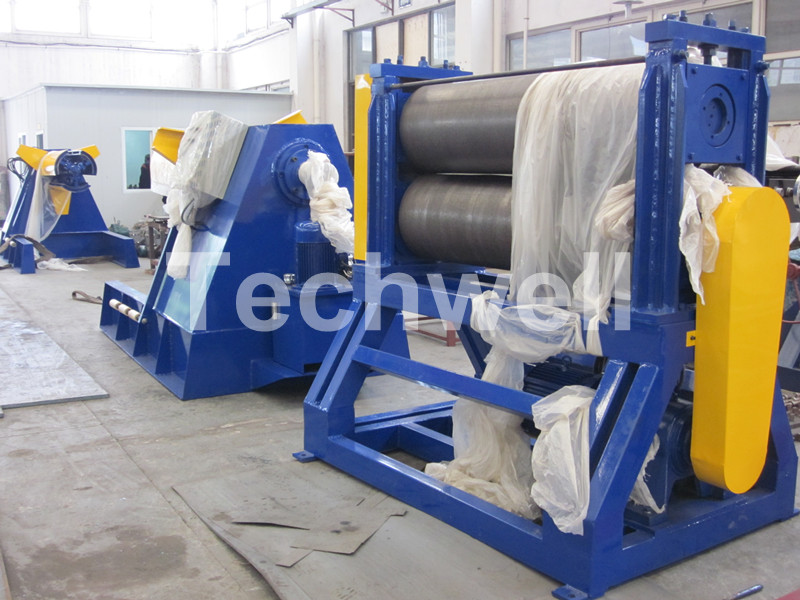

This metal embossing line is designed for processing aluminum and steel sheets. It features rollers for shaping and embossing metal sheets, and is equipped with a motor and drive system for automated operation.
Technical Specifications
Overview
Industrial Coil Embossing Line
This high-performance coil embossing line is engineered for the precise texturing of aluminum and color steel coils. Designed for continuous operation, the system features a robust roller assembly capable of producing consistent stucco or wood grain patterns. With adjustable embossing depth control and a reliable motor drive, this machine provides an efficient solution for metal processing applications requiring durability and high-volume output.
Technical Specifications
- Compatible Materials
- Color SteelAluminium
- Material Thickness
- 1 mm
- Max Coil Width
- 1250 mm
Performance
Working Speed
15 m/min
Max Speed
Main Motor Power
7.5 KW
Power
Components
Roller Specifications
| Specification | Value |
|---|---|
| Roller Material | 42CrMoV |
| Roller Size | 480mm x 1300mm |
Available Patterns
StuccoWood grain
Operation
Process Flow
- Decoiler
- Embossing
- Tension
- Recoiler
- Depth Control Method
- Screw reducer controlling
