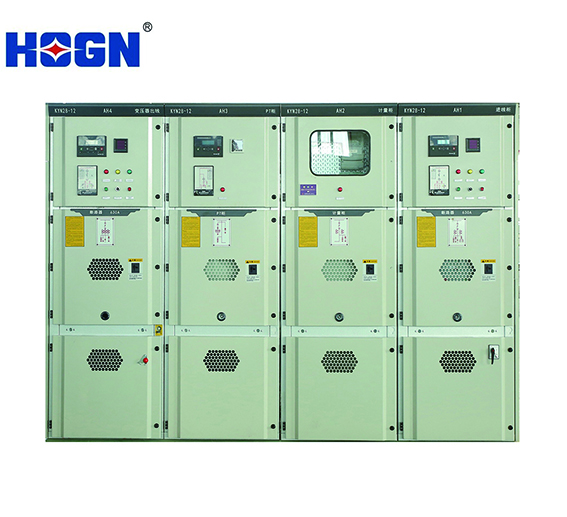

Metal-Clad Withdrawable Medium Voltage Switchgear

This metal-clad withdrawable switchgear is designed for power distribution and control in industrial and commercial applications. It features vacuum circuit breakers and comprehensive protection systems for enhanced reliability and safety.

Request a Quote Download PDFPDF

Technical Specifications

Overview

Professional Power Distribution Solution

This metal-clad withdrawable switchgear provides a robust and reliable solution for medium-voltage power distribution in industrial and commercial environments. Engineered with precision using CNC-machined aluminum-zinc plating, the unit ensures high durability and superior protection against environmental debris. Its modular design supports easy maintenance through a withdrawable circuit breaker mechanism and safety-focused interlocks, making it an efficient choice for critical electrical infrastructure.

Construction & Design

Structure Material: Aluminum-zinc plate
Fabrication: CNC machine tool bending
Key Protection Features: Debris intrusion protectionInsect intrusion protectionFive-proof interlocking systemCondensation preventionCorrosion resistance

Technical Capabilities

Circuit Breaker Compatibility

VS1 vacuum circuit breaker
VD4 vacuum circuit breaker

Performance Ratings

630 A

Rated Current

Installation & Maintenance

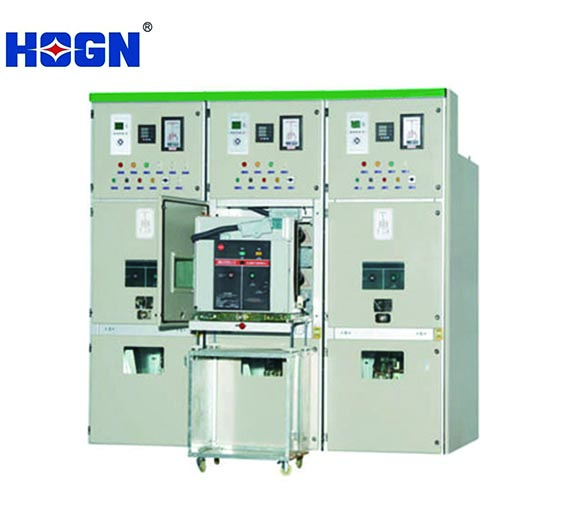

Service Access: Withdrawable rollout mechanism
Mounting Style: Wall-installation
Cable Capacity: Spacious cable room for multiple cable connections
