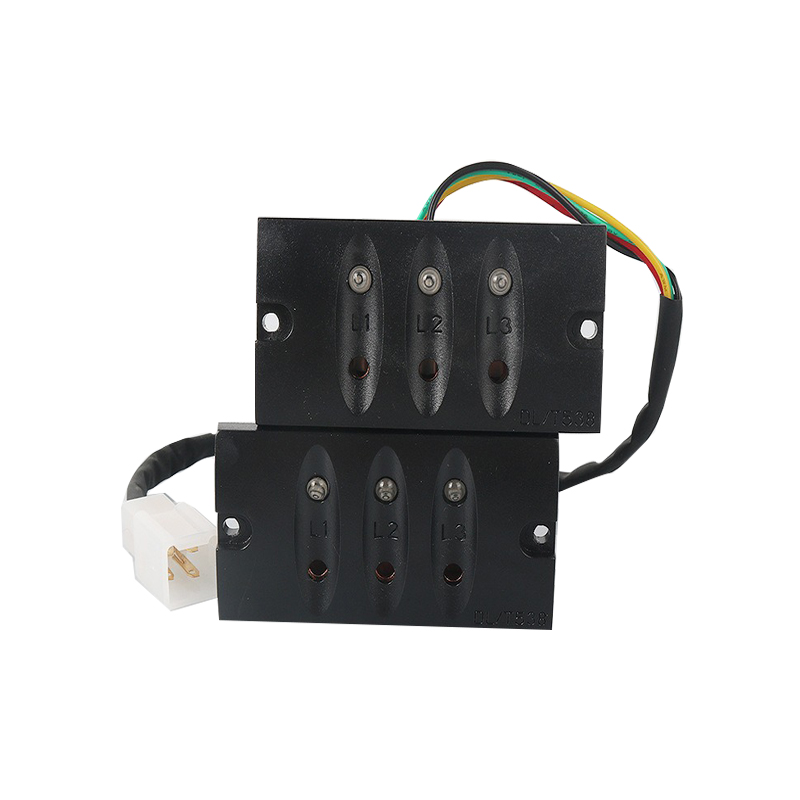

Medium Voltage Switchgear Indicator with High Voltage Sensor
This indoor switchgear indicator monitors voltage presence in medium-voltage installations. Designed for high-voltage cabinets, it enhances safety and operational awareness.
Technical Specifications
Overview

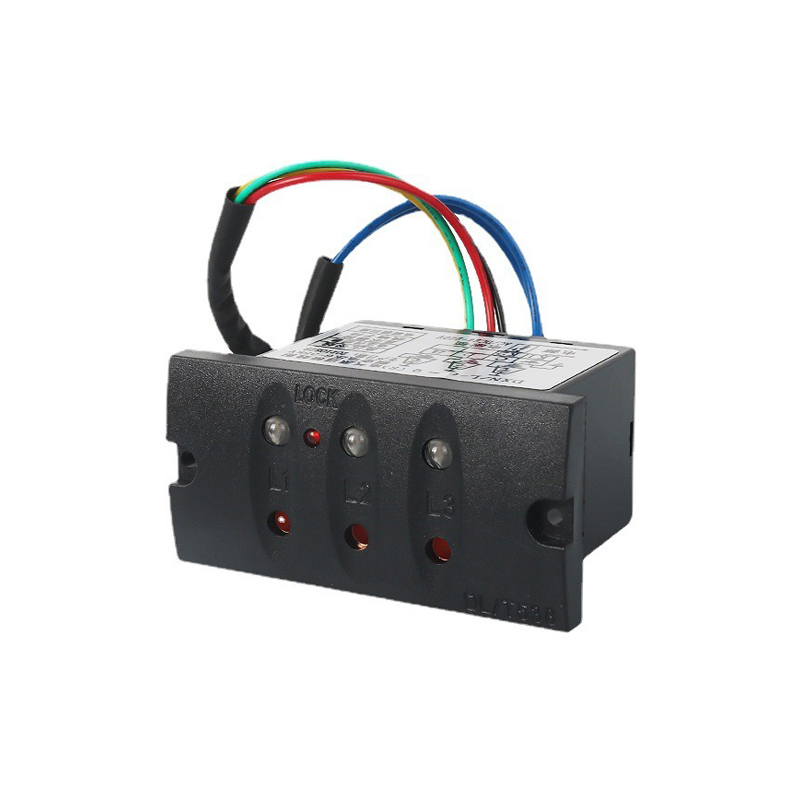

High-Voltage Live Display Device
This non-contact high-voltage live display device is designed for medium-voltage switchgear, offering reliable voltage loss testing to ensure power system safety. It utilizes an integrated three-phase continuous display to monitor electric fields without direct connection, preventing accidental entry into live spaces. Featuring self-check capabilities, sound alarms, and forced locking circuits, it is an essential safety component for 7.2kV to 40.5kV electrical equipment.
Technical Specifications
- Rated Voltage
- 24V / 110V / 220V
- Operating Voltage Range
- 1 - 52 kV
- Power Consumption
- 2 W
- Frequency
- 50/60 Hz
- Insulation Strength
- 2kV, 1min
- Compliance Standards
- IEC 61243-5IEC 62271-213
- Passive Contact Capacity
- 8A, 250VAC/48VDC
Operating Environment
Protection Class
IP40IP65
- Operating Temperature
- -25°C to 55°C
- Max Altitude
- 1000 m
Installation
- Panel Window Size
- 92 x 45 mm
- Recommended Depth
- 130 mm
- Shielded Cable Length
- 2m (customizable)
Operational Logic
Voltage Thresholds
| Function | Threshold |
|---|---|
| Voltage Presence | U > 0.40 x Unmin |
| Voltage Absence | U < 0.15 x Unmin |
| Over-voltage Protection | U < 0.30 x Unmin |
Key Features
- Fail-safe voltage testing
- Integrated self-test with button
- High voltage and disconnection alarm
- Maintenance-free (no battery required)
- Three-phase live voltage indication
- Electromagnetic lock automatic locking
