Medium Voltage Ring Network Switch Cabinet
This extensible modular switch cabinet series is metal sealed. Selected switch devices include a load switch, Fluarc SF1 or SFset circuit breaker, Rollarc 400 or 400D contactor, and isolation switch.
Technical Specifications
Product Overview

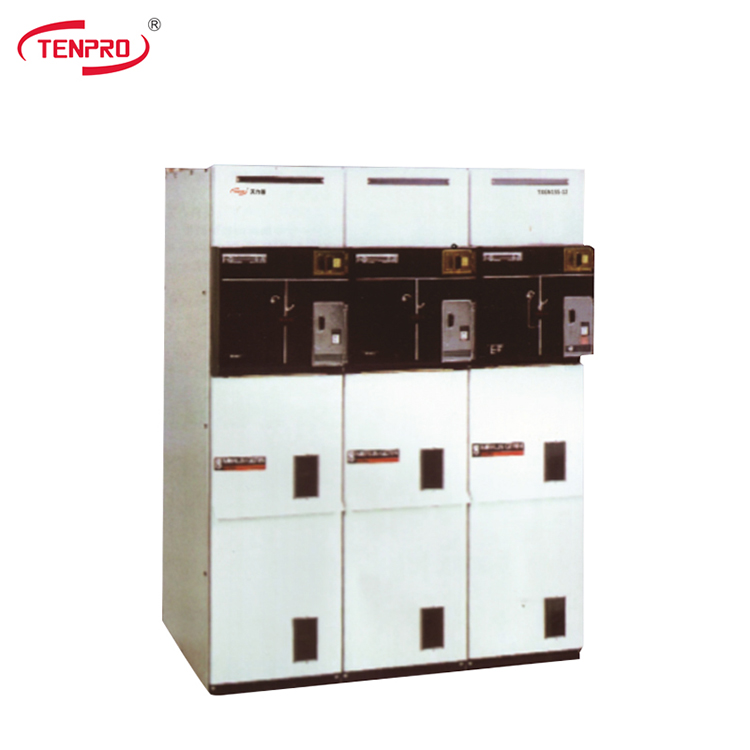

TXGN15S-12 Ring Network Switch Cabinet
The TXGN15S-12 is an extensible, modular metal-sealed switch cabinet designed for medium voltage applications up to 24kV. It offers a comprehensive solution for electrical distribution networks, integrating load switches, circuit breakers, and isolation switches within a compact, front-accessible unit. Built for safety and ease of operation, it is ideal for secondary substations in industrial and mining environments.
Technical Specifications
Cabinet Dimensions
750 mm
Maximum Width
1,600 mm
Height
840 mm
Depth
Operating Environment
- Working temperature: -5°C to +40°C
- Altitude: Less than 1000 meters
Compatibility & Standards
Standards Compliance
| Standard Category | Reference Standards |
|---|---|
| China GB | GB3804-90, GB3906, GB11022-89 |
| China DL | DL404 |
| International | IEC 298, 265N, 129C, 694, 420, 56 |
| UTE | NFC 13.100, 13.200, 64.130, 64.160 |
| EDF | HN64-S-41C, 64-3-43 |
- Switching Devices
- Load switchFluarc SF1SFset circuit breakerRollarc 400Rollarc 400D contactorIsolation switch
