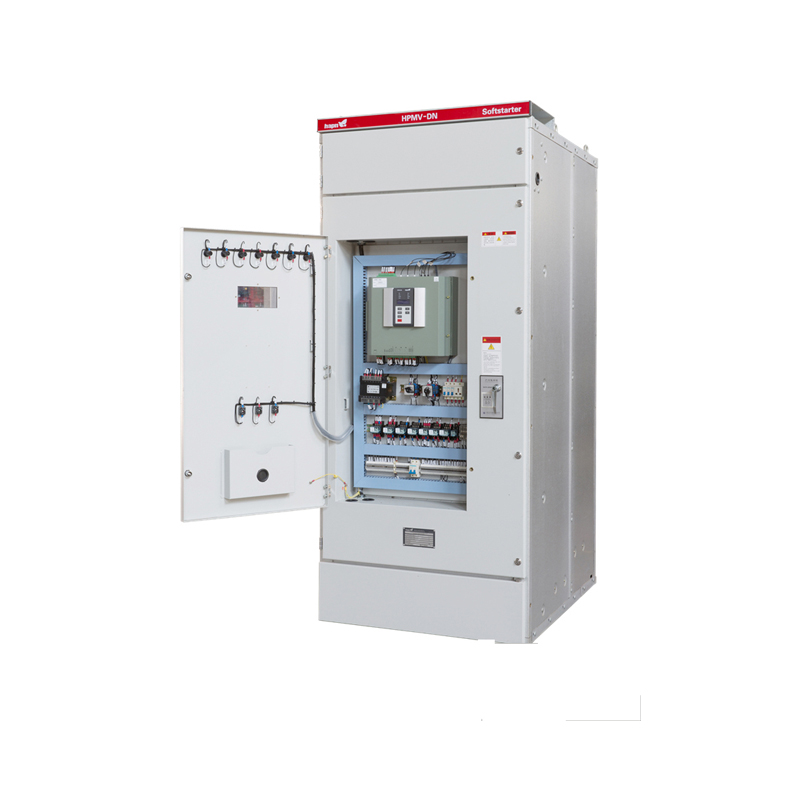

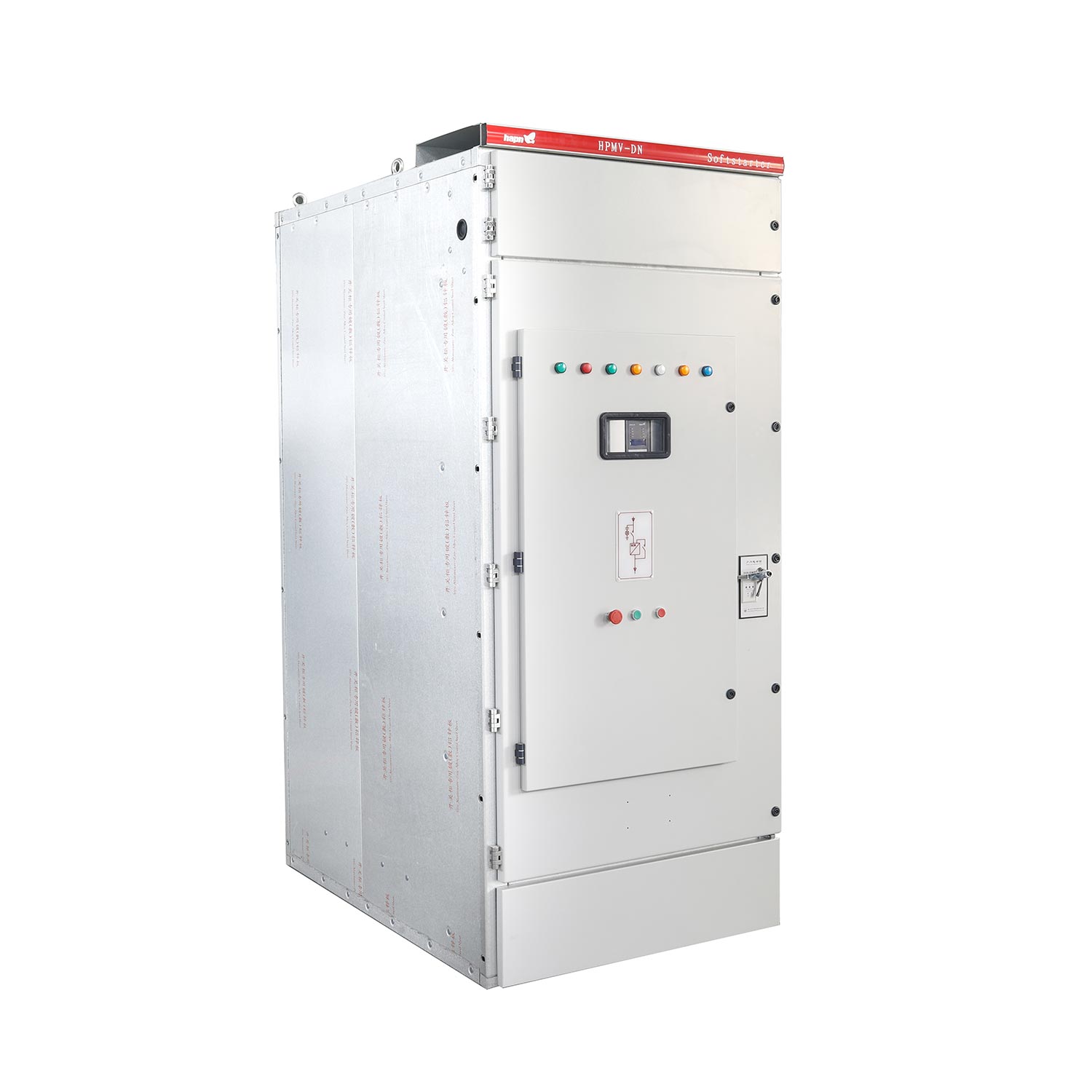

Medium Voltage Motor Soft Starter
This medium voltage soft starter is designed for efficient motor control and protection. The soft starter provides a reliable solution for reducing mechanical stress and electrical disturbances during motor starting.
Technical Specifications
Product Overview
Advanced Medium Voltage Motor Control
The HPMV-DN series is a high-performance digital soft starter designed for medium voltage applications, utilizing third-generation microprocessor technology. By employing advanced control algorithms and optical fiber trigger technology, it ensures precise, smooth acceleration and deceleration of motors while effectively minimizing voltage drops and mechanical stress. This robust system provides superior electrical isolation and reliable protection, making it an ideal solution for optimizing motor performance and extending equipment lifespan in demanding industrial environments.
Technical Ratings
Voltage Ratings
Power Capacity
| Voltage | Current | Power |
|---|---|---|
| 6kV | 900-1700A | 15000kW |
| 10kV | 900-1700A | 25000kW |
Control & Performance
Core Features
- Digital microprocessor-controlled technology
- Optical fiber trigger technology for full isolation
- Smooth ramp-up and ramp-down control
- High anti-interference capability
- Comprehensive protection functions (overload, overcurrent, undervoltage)
- Protection Types
- OverloadOvercurrentUndervoltageHigh/Low Voltage Isolation
Design & Construction
Interface Features
- Enclosure Type
- Robust metal industrial enclosure
