Mechanical Bimetal Lug
Mechanical bimetal lugs facilitate transition connections between aluminum cables and copper ends of electrical equipment. The torque-controlled shear head bolts ensure stable working performance without conductor damage.
Technical Specifications
Overview
Mechanical Bimetal Lug
The DTLL series mechanical bimetal lug is designed for the transition connection of aluminum or aluminum alloy cables to copper equipment terminals in medium voltage applications. These lugs feature friction-welded construction and are prefilled with jointing compound to ensure optimal conductivity and corrosion resistance. Engineered for efficiency, they utilize torque-controlled shear head bolts, eliminating the need for specialized crimping tools during installation.
Technical Specifications
Installation Features
- No crimping tools required
- Compatible with socket spanner or wrench
- Torque-controlled shear head bolts
- Prefilled with jointing compound
Model Specifications

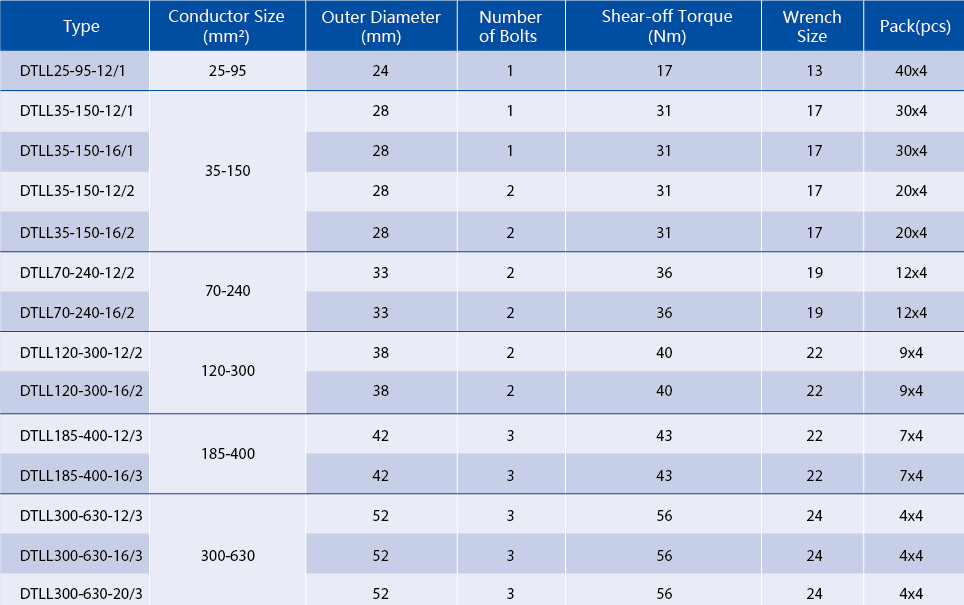

| Type | Conductor Size (mm²) | Bolts | Shear-off Torque (Nm) |
|---|---|---|---|
| DTLL25-95-12/1 | 25-95 | 1 | 17 |
| DTLL35-150-12/1 | 35-150 | 1 | 31 |
| DTLL70-240-12/2 | 70-240 | 2 | 36 |
| DTLL120-300-12/2 | 120-300 | 2 | 40 |
| DTLL185-400-12/3 | 185-400 | 3 | 43 |
| DTLL300-630-12/3 | 300-630 | 3 | 56 |
- Material Composition
- High Strength Aluminum AlloyCopper (≥99.9%)
- Standard
- IEC 61238-1:2003
