Technical Specifications
Overview
Efficient Vertical Material Transport

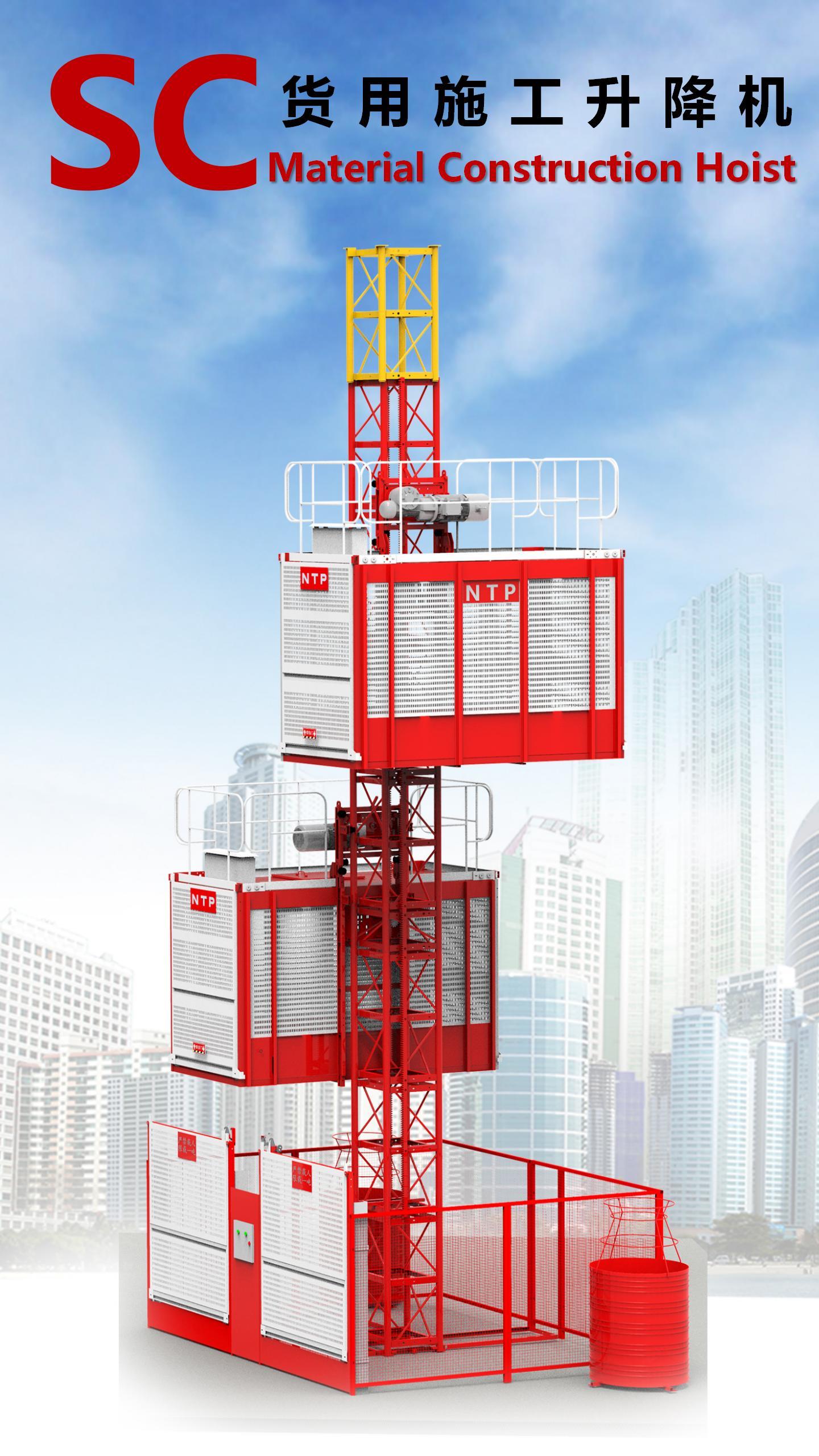

This material construction hoist is engineered for vertical delivery of goods in medium-to-high rise construction projects. Designed as an ideal, safer alternative to traditional derrick hoists, it focuses exclusively on material transport to enhance site productivity. The system features a robust, modular structure that is adaptable to various building heights and operational requirements.
Technical Specifications
Key Performance Metrics
2,000 kg
Total Rated Load
143 m
Max Lifting Height
28 m/min
Max Running Speed
11 kW
Motor Power

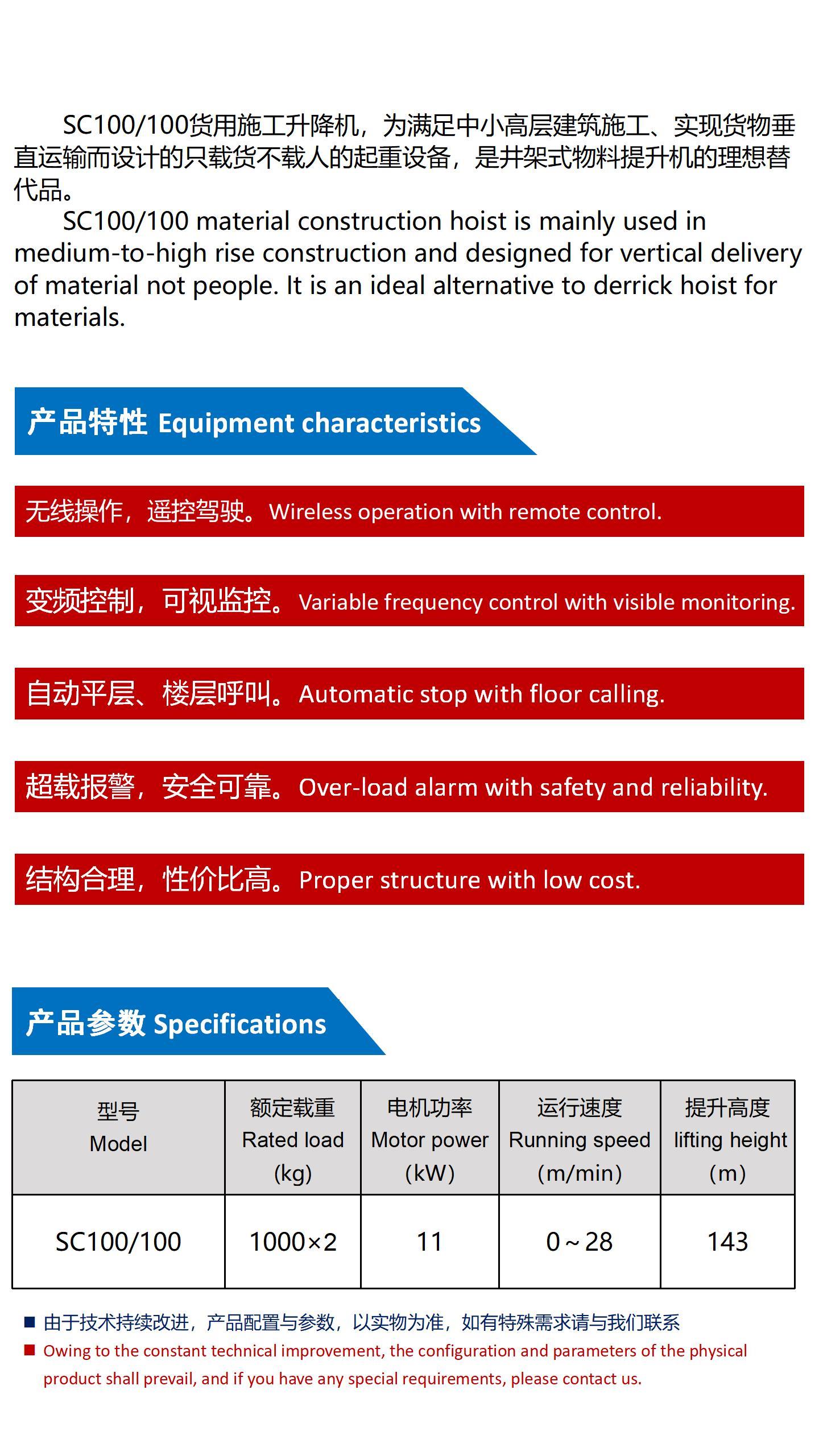

Detailed Specifications
| Parameter | Value |
|---|---|
| Model | SC100/100 |
| Rated Load | 1000x2 kg |
| Motor Power | 11 kW |
| Running Speed | 0~28 m/min |
| Lifting Height | 143 m |
Operational Features
Operational Capabilities
- Wireless operation with remote control
- Variable frequency control with visible monitoring
- Automatic stop with floor calling
- Over-load alarm system
- Modular design for easy assembly
- Safety & Reliability
- Overload ProtectionEmergency StopSafety AlarmReliable Structure
