Technical Specifications
Product Overview

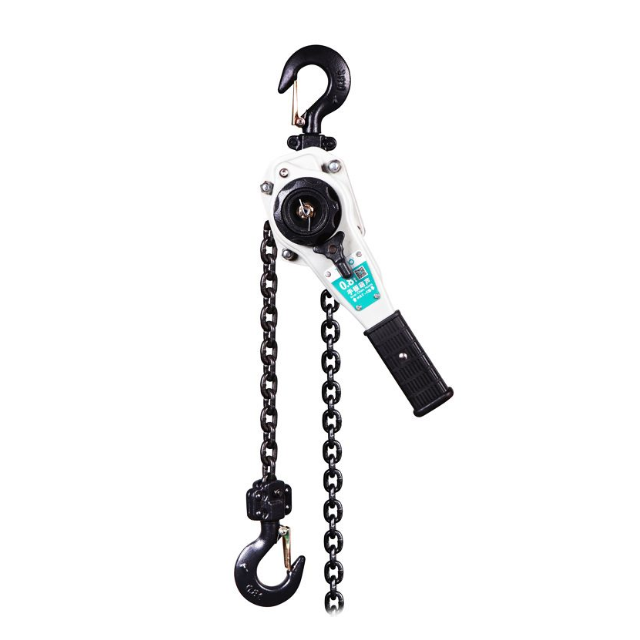

Industrial-Grade Manual Lever Hoist
This manual lever hoist features a robust carbon structural steel construction with high-frequency quenching for superior deformation resistance. It is equipped with nickel-plated chains that offer exceptional strength, wear resistance, and anti-corrosion properties. Designed for versatility, the unit includes an integrated clutch system for rapid chain adjustment and safety-focused hook latches for secure operation.
Key Features
- Key Highlights
- Lightweight DesignHigh-Frequency QuenchingNickel-Plated ChainAnti-Falling Hook TongueCorrosion Resistant
Technical Specifications
Performance Capacity
9 t
Maximum Load Capacity
1.5 m
Standard Lift
1,000 N/mm²
Chain Tensile Strength
Model Specifications
| Model | Load (t) | Net Weight (kg) | Chain Falls |
|---|---|---|---|
| C080 | 0.8 | 5.7 | 1 |
| C160 | 1.6 | 8 | 1 |
| C320 | 3.2 | 15 | 1 |
| C630 | 6.3 | 26 | 2 |
| C900 | 9 | 40 | 2 |
