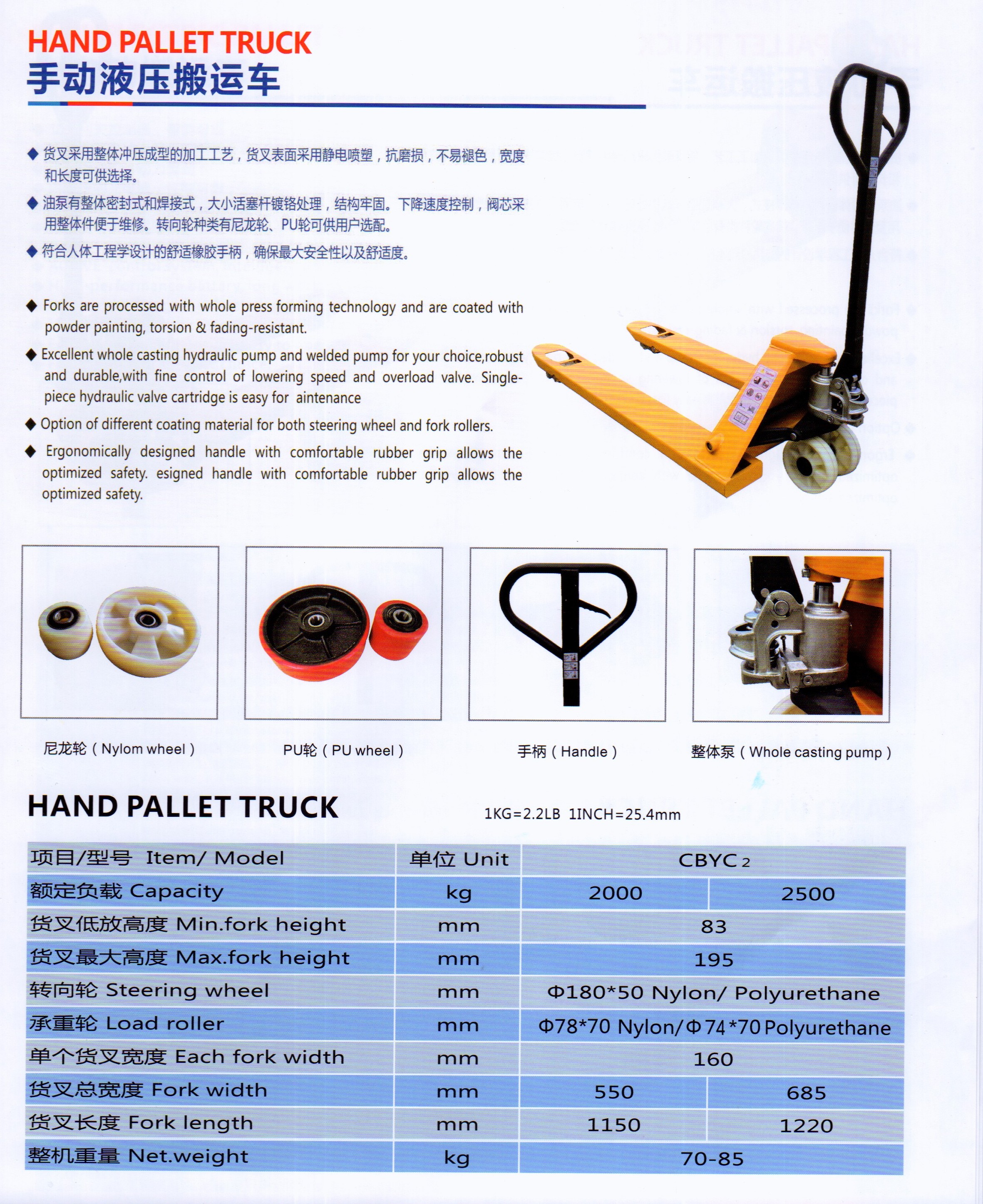

Manual Pallet Truck
This manual pallet truck features forks processed with whole press forming technology and coated with powder painting for torsion and fading resistance. It has an excellent whole casting hydraulic pump and welded pump for your choice, robust and durable, with fine control of lowering speed and overload valve.
Technical Specifications
Overview
Robust Manual Pallet Truck
This manual pallet truck is engineered with whole press forming technology and a powder-coated finish for superior durability and resistance to torsion and fading. It features a reliable hydraulic pump system, available in both whole casting and welded configurations, ensuring fine control over lowering speed and safety. Designed with ergonomics in mind, the handle includes a comfortable rubber grip to optimize safety and ease of use during operation.
Technical Specifications
Rated Capacity
Fork Dimensions
| Dimension | Value |
|---|---|
| Min Fork Height | 83 mm |
| Max Fork Height | 195 mm |
| Individual Fork Width | 160 mm |
| Total Fork Width Options | 550 mm, 685 mm |
| Fork Length Options | 1150 mm, 1220 mm |
- Wheel Material Options
- NylonPolyurethane
- Net Weight
- 70 - 85 kg
Features
Key Features
- Whole press forming technology for forks
- Powder painting for torsion and fading resistance
- Choice of whole casting or welded hydraulic pump
- Fine control of lowering speed
- Overload valve for safety
- Single-piece hydraulic valve cartridge for easy maintenance
- Ergonomic handle with comfortable rubber grip
