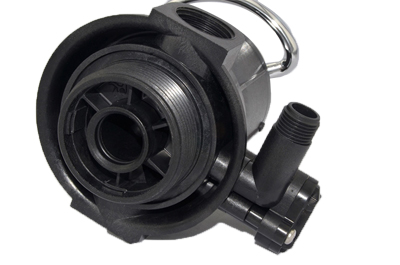

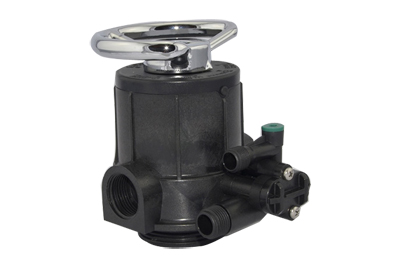

Manual Multiport Water Softener Control Valve
This manual multiport valve is designed for water softener systems. It allows manual control over various stages of the softening process, including backwash, brine draw, rinse, and service.
Technical Specifications
Overview
Manual Multiport Control Valve
This manual multiport control valve is engineered for precise management of water softener systems, supporting essential cycles including service, backwash, brine draw, slow rinse, brine refill, and fast rinse. Operated via a simple handwheel, it offers reliable control for ion exchange and water softening applications. Its robust design is compatible with a wide range of filter tank sizes, making it a versatile solution for boiler systems and RO pretreatment setups.
Technical Specifications
Flow Rate
4 m³/h
Max Flow Rate
Operating Conditions
| Parameter | Range |
|---|---|
| Water Pressure | 0.15 - 0.6 Mpa |
| Water Temperature | 5 - 50 °C |
| Water Turbidity | < 5 FTU |
- Available Models
- F64A1 (61104)F64A2 (61204)
Installation & Connections
Connection Ports
- Inlet/Outlet: 1" Female
- Drain: 1/2" Male
- Brine Line Connector: 3/8" Male
- Mounting Base: 2.5"-8NPSM
- Riser Pipe: 1.05" OD
- Mounting Type
- Top mount
Compatibility
Recommended Applications
Ion Exchange EquipmentBoiler System SofteningRO Pretreatment
- Compatible Filter Tanks
- 6" - 18"
