Manual Multiport Water Softener Control Valve
This manual multiport softener control valve is designed for efficient operation in water softening systems. Its robust construction and multiple port configurations provide flexibility in system design, making it suitable for residential and light commercial applications.
Technical Specifications
Overview

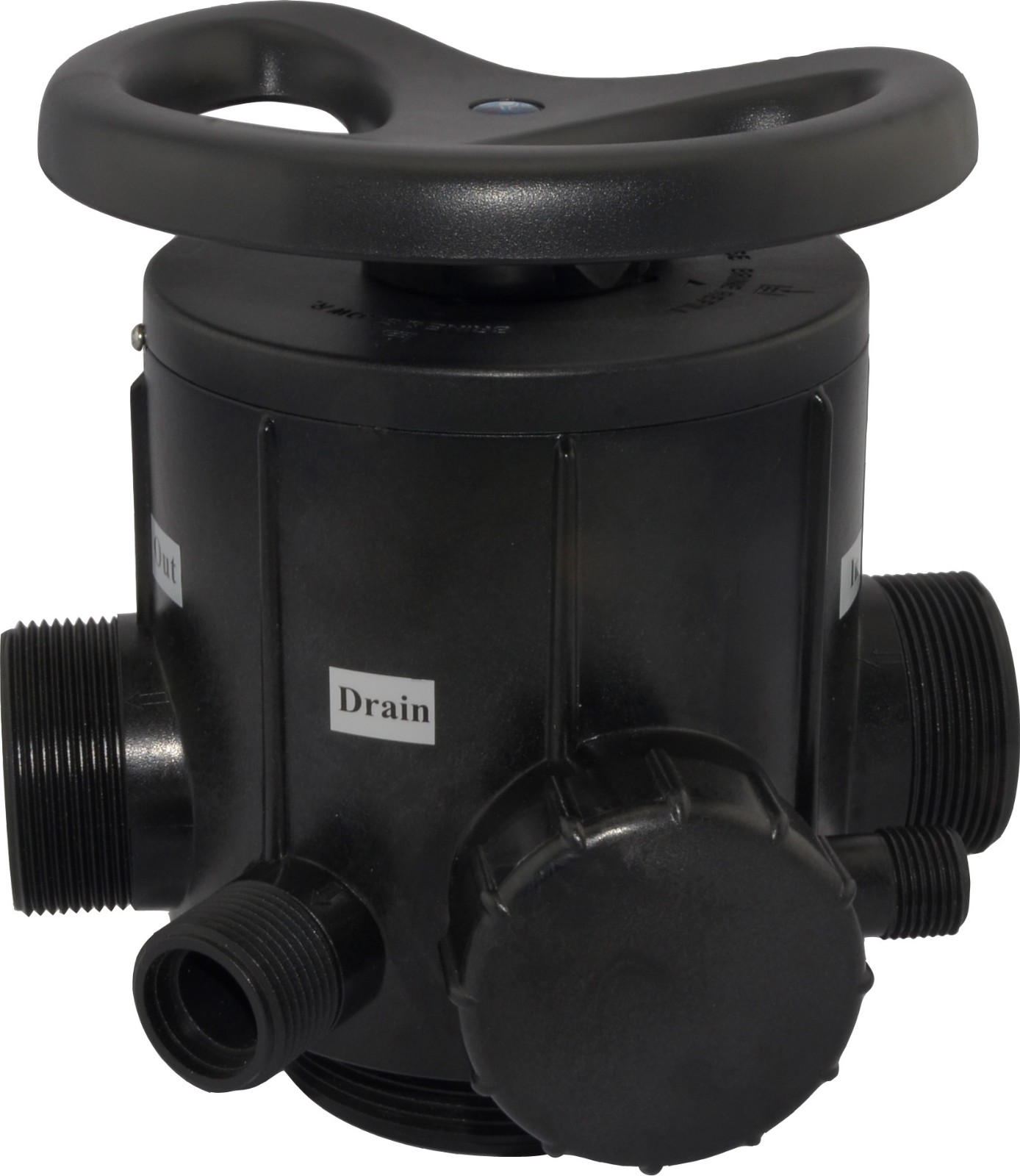

Manual Multiport Softener Control Valve
The N64D is a robust manual multiport control valve designed for efficient water softening and filtration systems. Featuring a durable plastic handle, it provides precise manual control over critical process cycles including service, backwash, brine draw, slow rinse, and fast rinse. This versatile unit is engineered for reliability in both residential and light commercial water treatment environments.
Performance Metrics
Flow Rate
10 m3/h
Flow Rate
Operating Conditions
| Parameter | Range |
|---|---|
| Water Pressure | 0.15-0.6 Mpa |
| Water Temperature | 5-50 ℃ |
| Water Turbidity | < 5 FTU |
Technical Specifications
Connection Sizes
- Inlet/Outlet: 2"M
- Drain: 1"M
- Brine line connector: 1/2"M
- Mounting base: 2.5"-8NPSM
- Riser pipe: 1.5"D-GB
- Compatibility
- Top mountSide mount10"-30" Filter tank
Applications
Typical Applications
Ion exchange equipmentBoiler system water softenerRO pretreatment system
