Manual Multiport Valve for Water Softener Systems
This manual multiport valve is designed for water softener systems. It controls backwash, brine draw, slow rinse, fast rinse, and service cycles with a user-friendly handwheel.
Technical Specifications
Product Overview

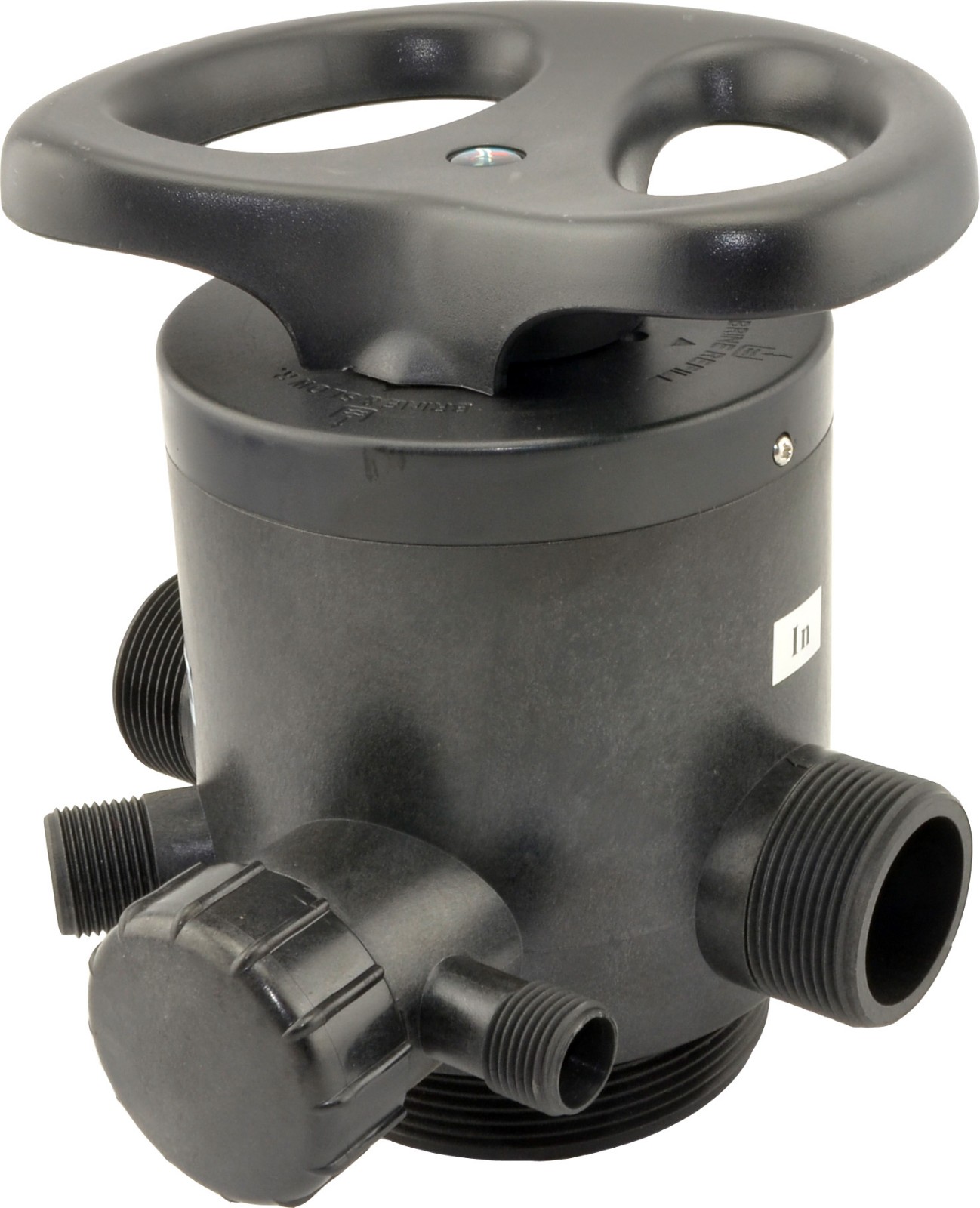

Manual Multiport Control Valve
This manual multiport valve is designed specifically for water softener systems, providing comprehensive control over the entire treatment cycle. Users can easily manage service, backwash, brine draw, slow rinse, brine refill, and fast rinse functions simply by rotating the handwheels. It is an ideal solution for ion exchange equipment, boiler system water softeners, and RO pretreatment systems.
Technical Specifications
- Model
- F64F (61206)
- Handwheel Material
- Plastic
- Mount Type
- Top mount
- Mounting Base
- 2.5"-8NPSM
- Riser Pipe Diameter
- 1.25"D-GB
Performance Metrics
Key Performance Metrics
6 m3/h
Flow Rate
0.15 Mpa
Min Water Pressure
0.6 Mpa
Max Water Pressure
- Operating Temperature
- 5-50°C
- Max Water Turbidity
- < 5 FTU
Connections
Port Connections
| Connection Type | Size |
|---|---|
| Inlet/Outlet | 1.5"M |
| Drain | 3/4"M |
| Brine Line | 1/2"M |
Compatibility
Compatible Filter Tank Sizes
- 10"
- 11"
- 12"
- 13"
- 14"
- Recommended Applications
- Ion Exchange EquipmentBoiler Water SoftenersRO Pretreatment
