Manual Multiport Softener Control Valve
This manual multiport softener control valve is designed for efficient water softening applications. It allows manual control of the softening process, including backwash, brine draw, slow rinse, fast rinse, and service modes.
Technical Specifications
Overview

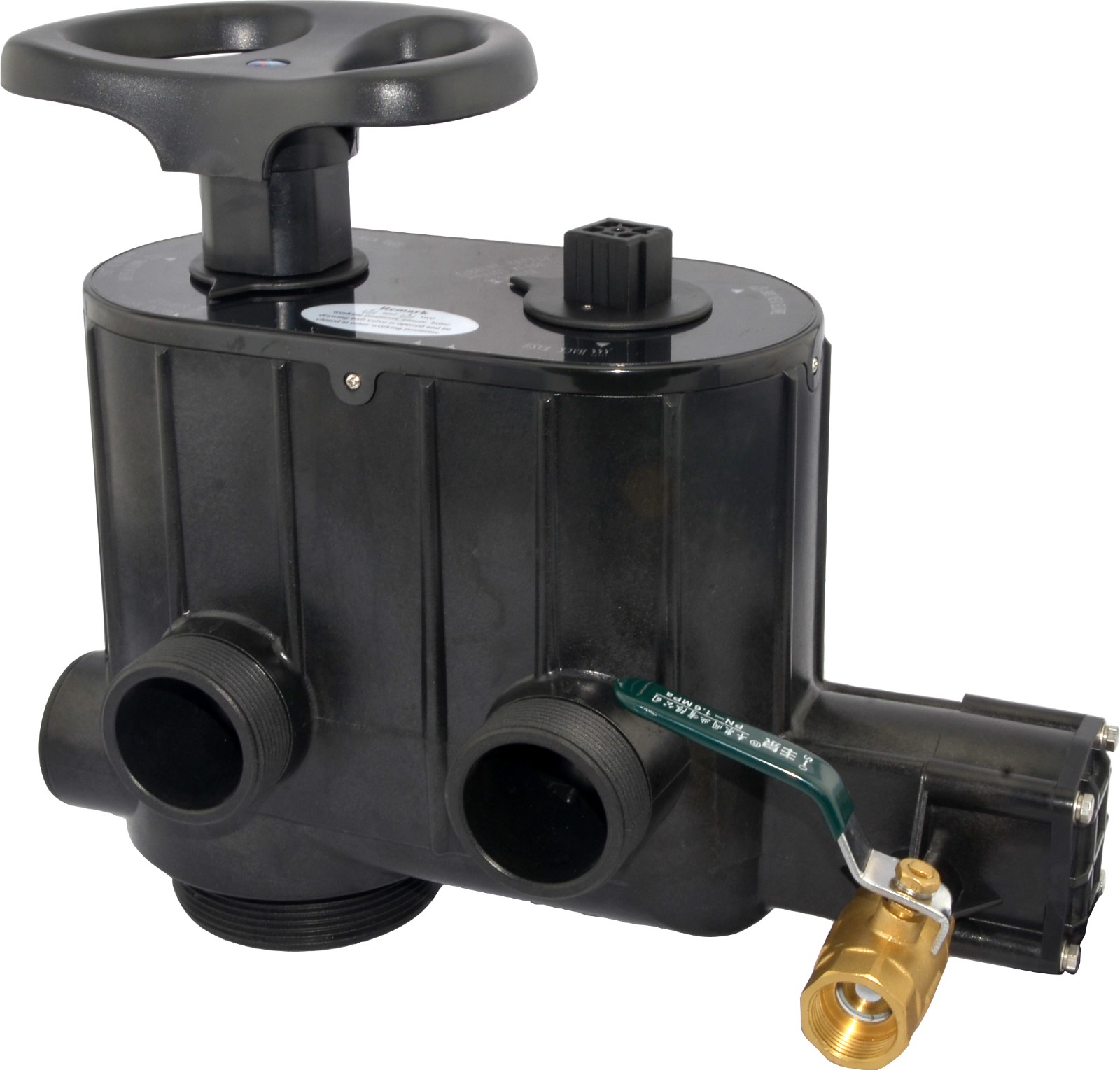

Manual Multiport Softener Control Valve
The F77AS manual multiport softener control valve is designed for reliable and efficient water treatment management. Equipped with dual valve cores, it provides precise control over inflow and outflow, supporting essential cycles like backwash, brine draw, and rinse. Its robust construction makes it an ideal solution for residential and light commercial water softening systems, including boiler and RO pretreatment applications.
- Model Number
- F77AS (61215)
- Suitable Applications
- Ion exchange equipmentBoiler water softeningRO pretreatment
Technical Performance
Key Performance Metrics
15 m3/h
Flow Rate
0.6 Mpa
Max Pressure
50 ℃
Max Temperature
- Max Water Turbidity
- < 2 FTU
- Compatible Filter Tank Size
- 24" - 42"
Installation & Design
Connection Specifications
| Connection Type | Specification |
|---|---|
| Inlet/Outlet | 2" M |
| Drain | 2" M |
| Brine Line | 3/4" M |
| Mounting Base | 4" - 8UN |
| Riser Pipe | 1.5" D-GB |
Mounting Options
Top mountSide mount
- Handle Material
- Plastic
Operational Modes
Operating Cycles
- Service
- Backwash
- Brine draw
- Slow rinse
- Brine refill
- Fast rinse
