Manual Multiport Control Valve for Water Softeners
This manual multiport control valve is designed for water softener applications. It features multiple ports for efficient water flow management during softening, backwashing, and rinsing cycles.
Technical Specifications
Product Overview

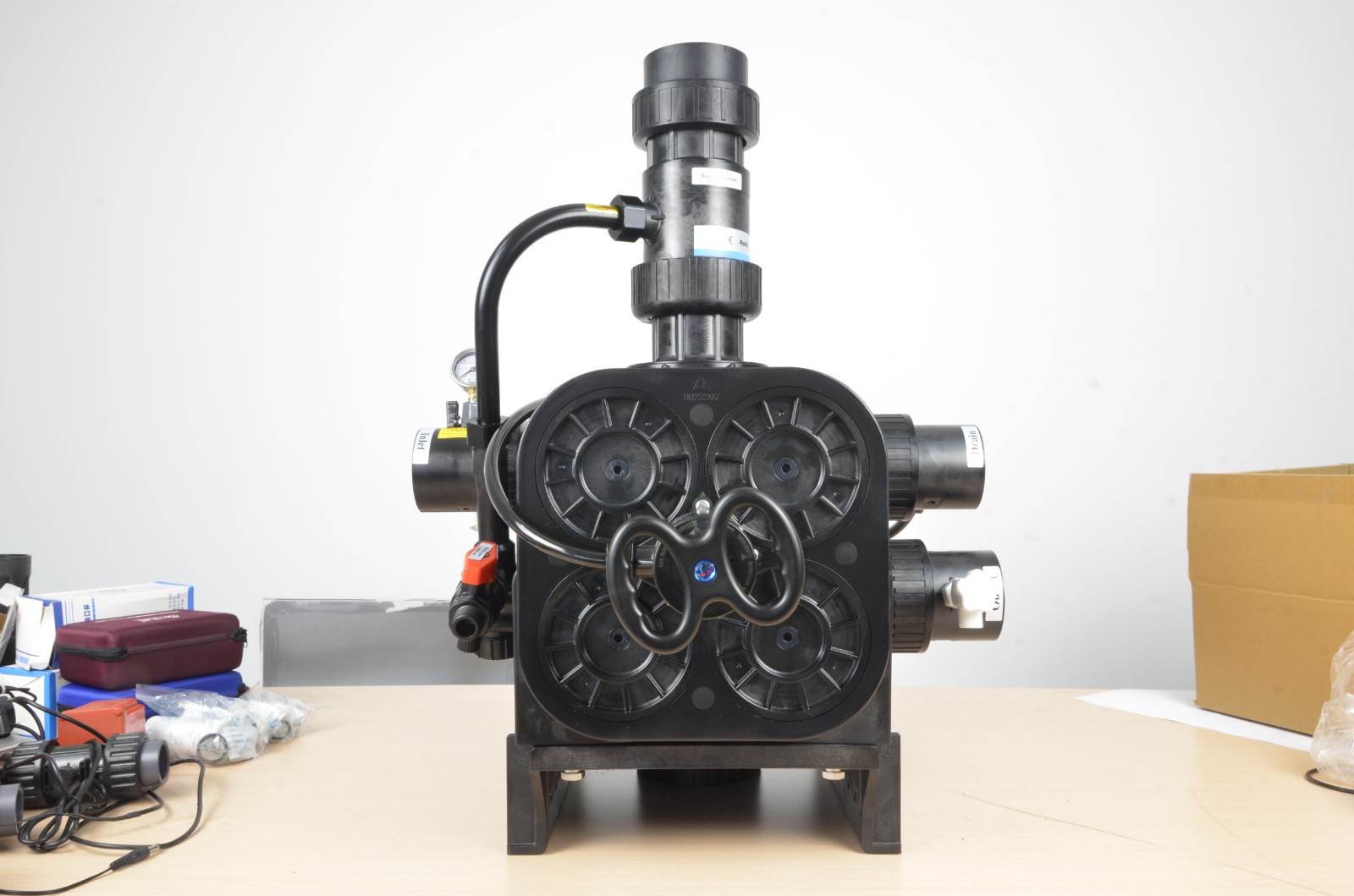

Manual Multiport Control Valve
This manual multiport control valve is designed for efficient management of water softener systems. Featuring a 4-port T-configuration, it allows for easy control of flow passages through hydraulically balanced pistons. The unit supports essential regeneration cycles including backwash, brine and slow rinse, fast rinse, and brine refill, making it a reliable solution for industrial and commercial water treatment.
Technical Specifications
Flow Rate
40 m3/h
Max Flow Rate
Operating Parameters
| Parameter | Value |
|---|---|
| Water Pressure | 0.2-0.6 MPa |
| Water Temperature | 5-50 °C |
| Max Turbidity (Regen) | <5 FTU |
- Model Number
- F112AS (61240)
Installation & Connections
Connection Specifications
- Inlet/Outlet: DN65
- Drain: DN65
- Brine line connector: 3/4 inch
- Mounting base: Top mount
- System Compatibility
- Ion exchange equipmentWater treatment systemRO pretreatment system
Construction & Design
Design Features
T-configurationHydraulically balanced pistonsTop mountManual operation
- Material Specifications
- Plastic handwheel
- Compatible Tank Size
- 36"-63"
