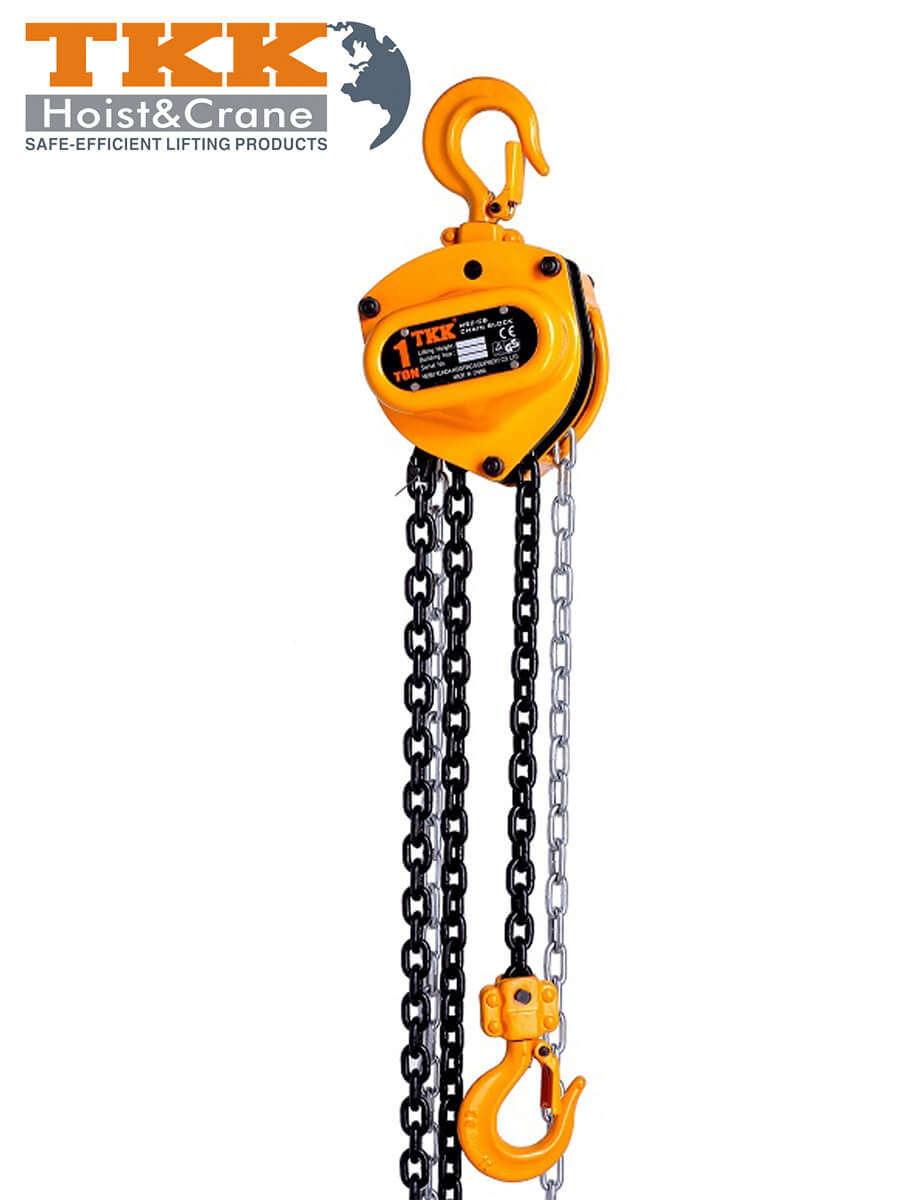

Manual Chain Hoist
This manual chain hoist is a reliable lifting device for industrial and commercial applications. It features durable steel construction and a high-strength alloy steel chain for exceptional lifting capacity and safety.
Technical Specifications
Product Overview
Robust Manual Lifting Solution
This manual chain hoist is a reliable lifting device engineered for demanding industrial and commercial environments. Constructed with durable steel and featuring high-strength alloy steel chains, it ensures both longevity and safety during operation. The compact design allows for easy portability and installation, while precise gearing technology provides smooth, efficient load handling with minimal physical effort.
Technical Specifications
Performance Data Table
| Model | Capacity (t) | Test Load (t) | Falls | Chain Size (mm) | Net Weight (kg) |
|---|---|---|---|---|---|
| VD010 | 1 | 1.25 | 1 | 6×18 | 11.3 |
| VD015 | 1.5 | 1.87 | 1 | 7.1×21 | 16 |
| VD020 | 2 | 2.5 | 1 | 8×24 | 17.7 |
| VD030 | 3 | 3.75 | 1 | 10×30 | 26.6 |
| VD050 | 5 | 6.25 | 2 | 9×27 | 37.25 |
| VD100 | 10 | 12.5 | 4 | 9×27 | 75.5 |
| VD200 | 20 | 25 | 8 | 9×27 | 192 |
Key Features
- Operational Highlights
- Mechanical load brakeHigh-strength alloy steel chainCompact designPrecision gearingLoad-sharing technology
Certifications
Regulatory Compliance
CEGS
Performance Metrics
Core Lifting Specs
20 t
Max Capacity
3 m
Standard Lift
