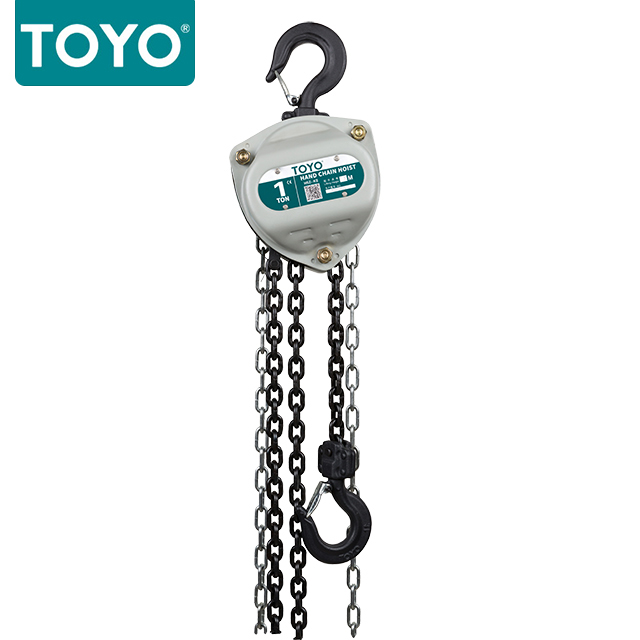

Manual Chain Hoist
This manual chain hoist is designed for heavy-duty lifting in industrial and construction settings. It features a durable steel construction and a high-strength alloy steel chain for reliable and safe operation.
Technical Specifications
Product Overview
Heavy-Duty Manual Chain Hoist
This manual chain hoist is engineered for demanding industrial and construction lifting tasks. Featuring robust steel construction and high-strength alloy steel chains, it provides reliable performance and enhanced safety. The integrated braking system allows for secure load holding and precise control, making it an essential tool for workshops, warehouses, and construction sites.
Technical Performance
Key Performance Indicators
20 ton
Max Capacity
3 mm
Standard Lift
382 N
Max Force
Model Specifications
| Model | Capacity (ton) | Test Load (ton) | Net Weight (kg) |
|---|---|---|---|
| KⅡ010-1 | 1 | 1.25 | 11.3 |
| KⅡ015-1 | 1.5 | 1.87 | 16 |
| KⅡ020-1 | 2 | 2.5 | 17.7 |
| KⅡ030-1 | 3 | 3.75 | 26.6 |
| KⅡ030-2 | 3 | 3.75 | 22.5 |
| KⅡ050-2 | 5 | 6.25 | 37.25 |
| KⅡ100-4 | 10 | 12.5 | 75.5 |
| KⅡ200-8 | 20 | 25 | 192 |
Chain Configuration
- Standard Lift: 3mm
- Load chain sizes range from 6x18mm to 10x30mm depending on model
- Falls of load chain range from 1 to 8
Compliance & Safety
- Safety Standards
- CE CompliantMechanical Load Brake
