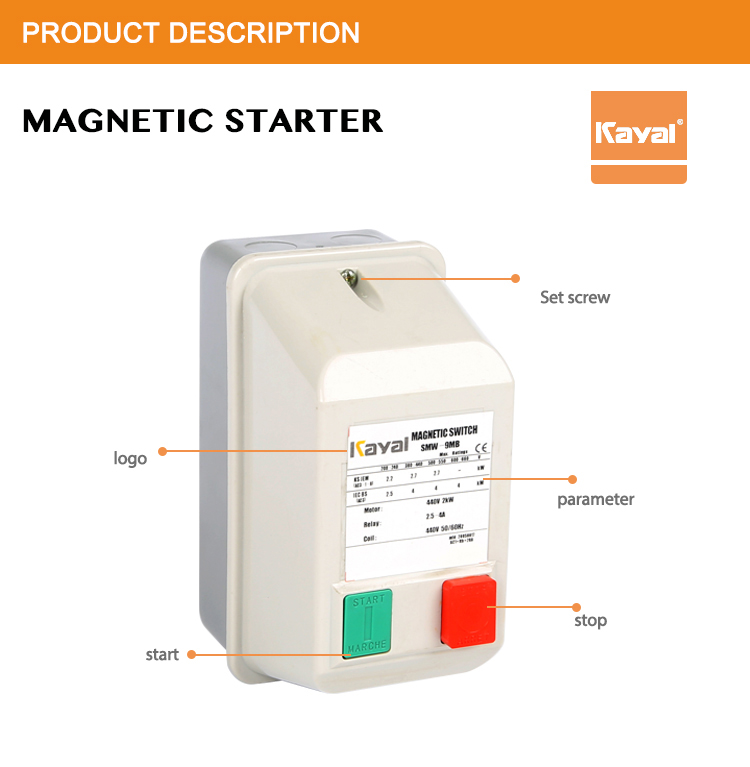

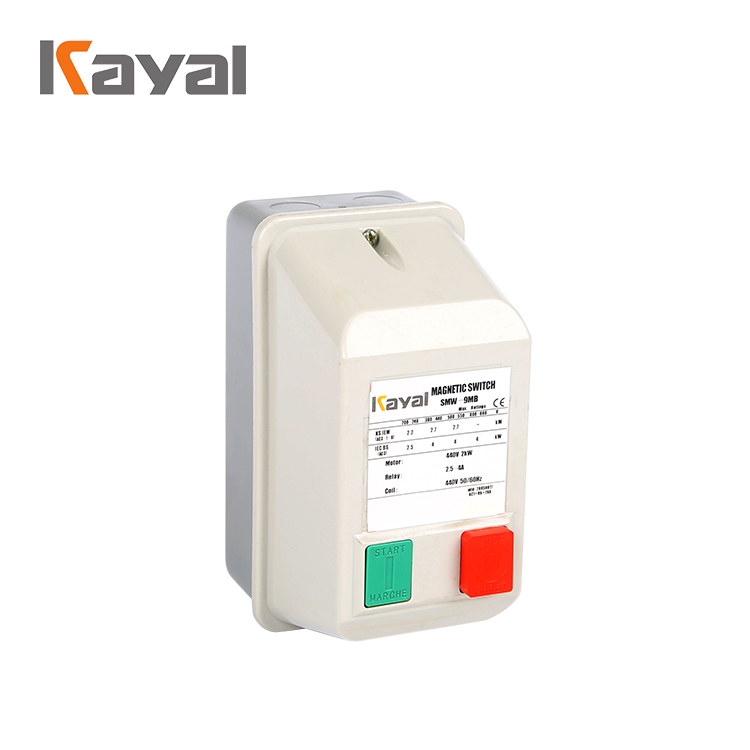

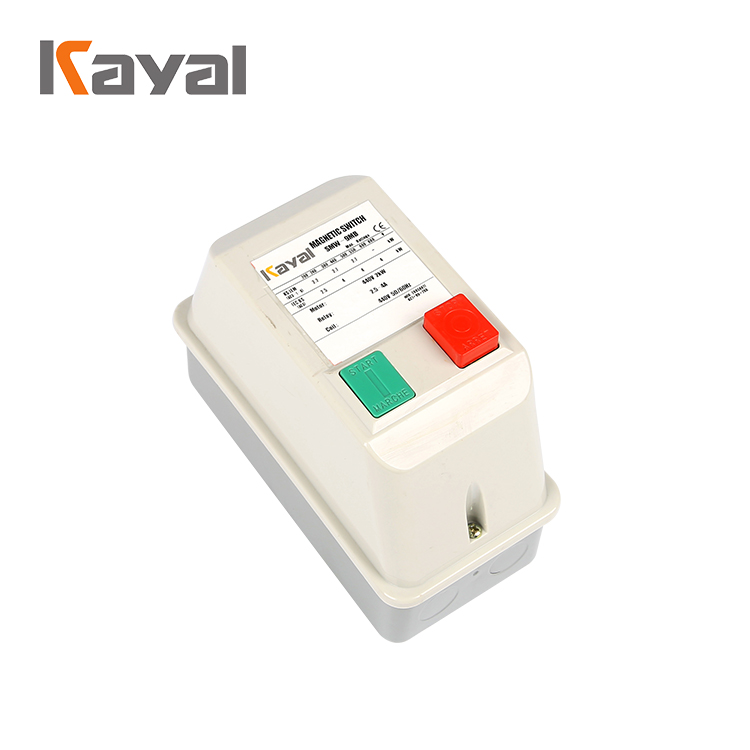

Magnetic Motor Starter
This magnetic starter is designed for AC circuits up to 550V. It is used for remote making and breaking of circuits, as well as frequent motor control.
Technical Specifications
Overview
Professional Motor Control Solution
This magnetic motor starter is designed for reliable circuit control in AC systems operating at 50 or 60Hz with voltages up to 550V. Engineered for remote circuit switching and frequent motor starts, it offers a compact, lightweight design with low power consumption and high efficiency. It provides safe, dependable performance for industrial and commercial environments, including control rooms, medical facilities, and automated systems.
Technical Specifications
Enclosure Types
IP42IP65
- Voltage Rating
- 550 V
- Frequency
- 50Hz60Hz
Performance Data
Maximum Power (AC3 Duty)
| Voltage (V) | Power (kW) |
|---|---|
| 220-230V | 1.1 |
| 380-400V | 2.2 |
| 415V | 22 |
| 440V | 22 |
Key Operating Parameters
6 A
Rated Current
9 A
Long Life Rated Current
Features
Key Advantages
- Compact and lightweight design
- Low power consumption
- High efficiency performance
- Integrated overload protection
- Safe and reliable operation
