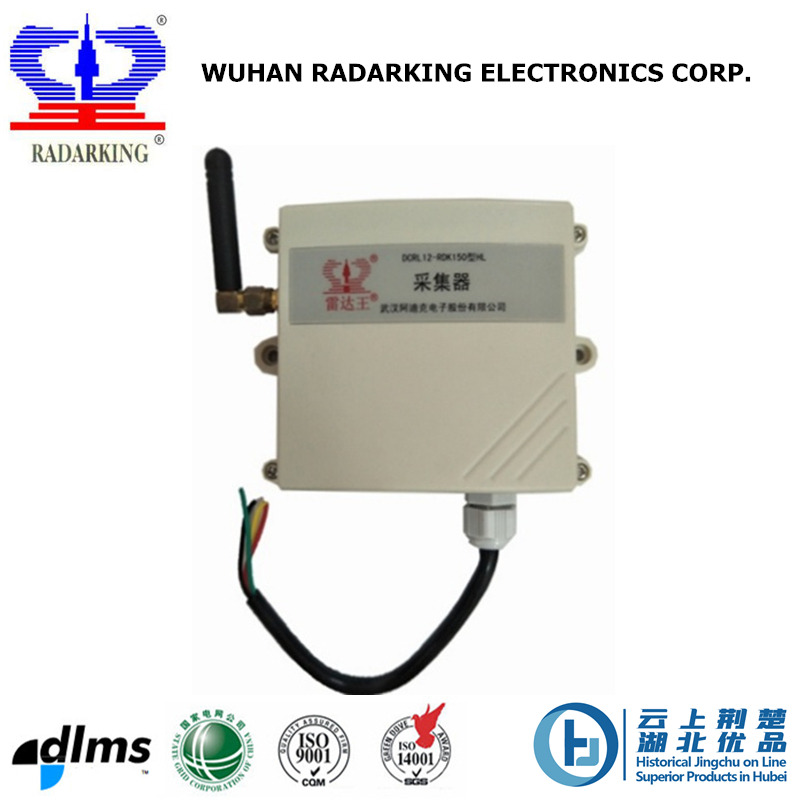

LoRaWAN Universal Data Collector
This LoRaWAN universal data collector is designed for various applications, enabling long-range wireless communication. It supports data acquisition, processing, and transmission, making it suitable for remote monitoring and control systems.
Technical Specifications
Overview
Universal LoRaWAN Data Collector

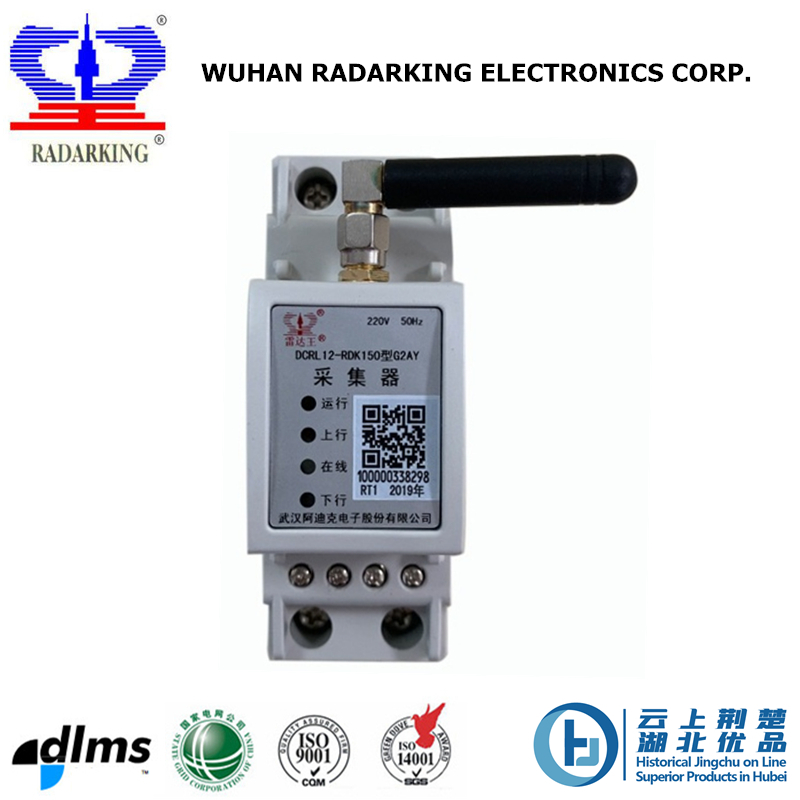

This universal data collector leverages edge computing to bridge RS485 interface standards with LoRaWAN wireless networks. Designed for industrial reliability, it supports automatic data acquisition and two-way transmission, overcoming traditional LoRaWAN data volume limitations. Its compact rail-mount design and high adaptability make it an efficient solution for remote monitoring and complex IoT deployments.
Wireless Performance
Key Wireless Metrics
20 dBm
RF Power
-143 dBm
Receive Sensitivity
- Supported Frequencies
- 433MHz470MHz868MHz923MHz
Electrical & Hardware
Power & Capacity
| Parameter | Specification |
|---|---|
| Input Voltage | AC 220V or DC 12V/24V |
| Power Consumption | ≤ 3W (Active) |
| RS485 Load Capacity | Up to 32 devices |
| RS485 Max Distance | 800 meters |
Environmental & Safety
Certifications
ISO 9001ISO 14001
Operating Environment
- Temperature: -20°C to +60°C
- Humidity: ≤ 95% RH
- Impact Voltage: 2kV
- Electrostatic Discharge: 4kV
