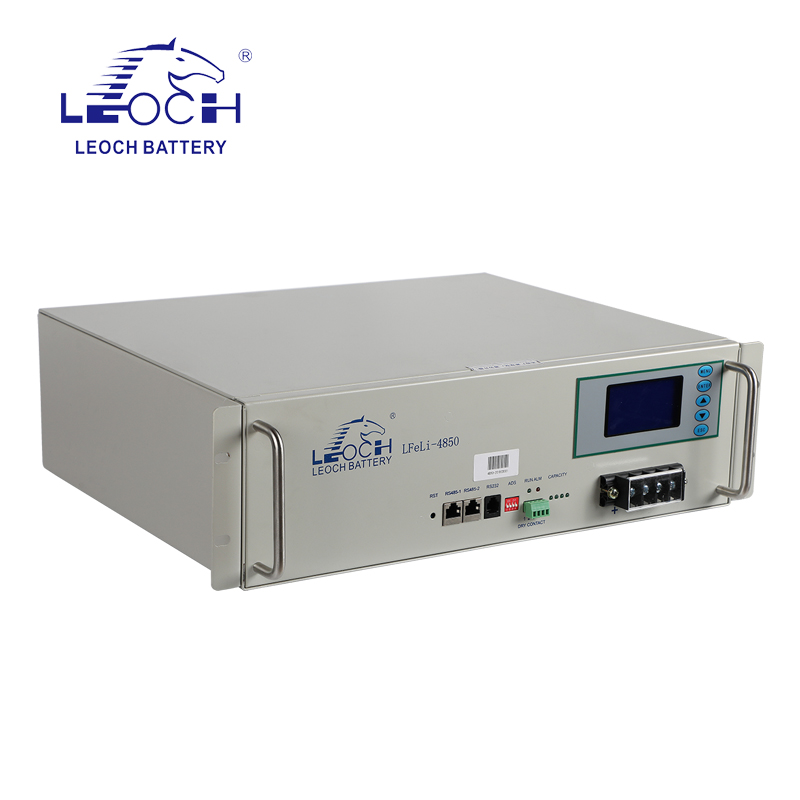

Lithium Iron Phosphate Battery for UPS
This lithium iron phosphate (LiFePO4) battery system is designed for uninterruptible power supply (UPS) applications. The battery module provides stable power backup for critical systems in demanding environments.
Technical Specifications
Product Overview
High-Performance LiFePO4 Energy Storage
This advanced Lithium Iron Phosphate (LiFePO4) battery system is engineered for reliable uninterruptible power supply (UPS) applications. It delivers superior cycle life, enhanced safety, and high energy density compared to traditional lead-acid alternatives. Featuring an integrated Battery Management System (BMS), the unit provides real-time monitoring, remote control capabilities, and intelligent protection to ensure optimal performance in demanding environments.
Technical Specifications
Cycle Life Performance
| Configuration | Cycles (80% DOD) | Cycles (100% DOD) |
|---|---|---|
| Type C | Up to 5000 | ≥3500 |
| Standard | Up to 3000 | ≥2000 |
- Operating Temperature Range
- -20°C to 60°C
- Self-Discharge Rate
- ≤2% per month
- Fast Charging Performance
- Reaches 95% capacity in 30 minutes at 1C current
Features & BMS
BMS Capabilities
- Voltage, current, and temperature protection
- Real-time parameter monitoring
- Remote control via computer management
- Modbus protocol communication
- Secondary cut-off protection for low voltage
- Communication Ports
- RS485RS232RSTDry Contact
Design & Installation
Mounting Type
19-inch RackWall-mounted
- Cooling System
- Passive cooling (low noise)
Applications
Primary Applications
- Wireless Hut back-up power
- Wireless Repeater back-up
- Fiber-Optic access network back-up power
- Outdoor Billboard lighting
- 48V Switchgear & Control Back-up Power
- Long duration Industrial UPS Systems
- FTTB & LAN/WIFI Connection Power
- Street & Highway Monitoring & Surveillance
