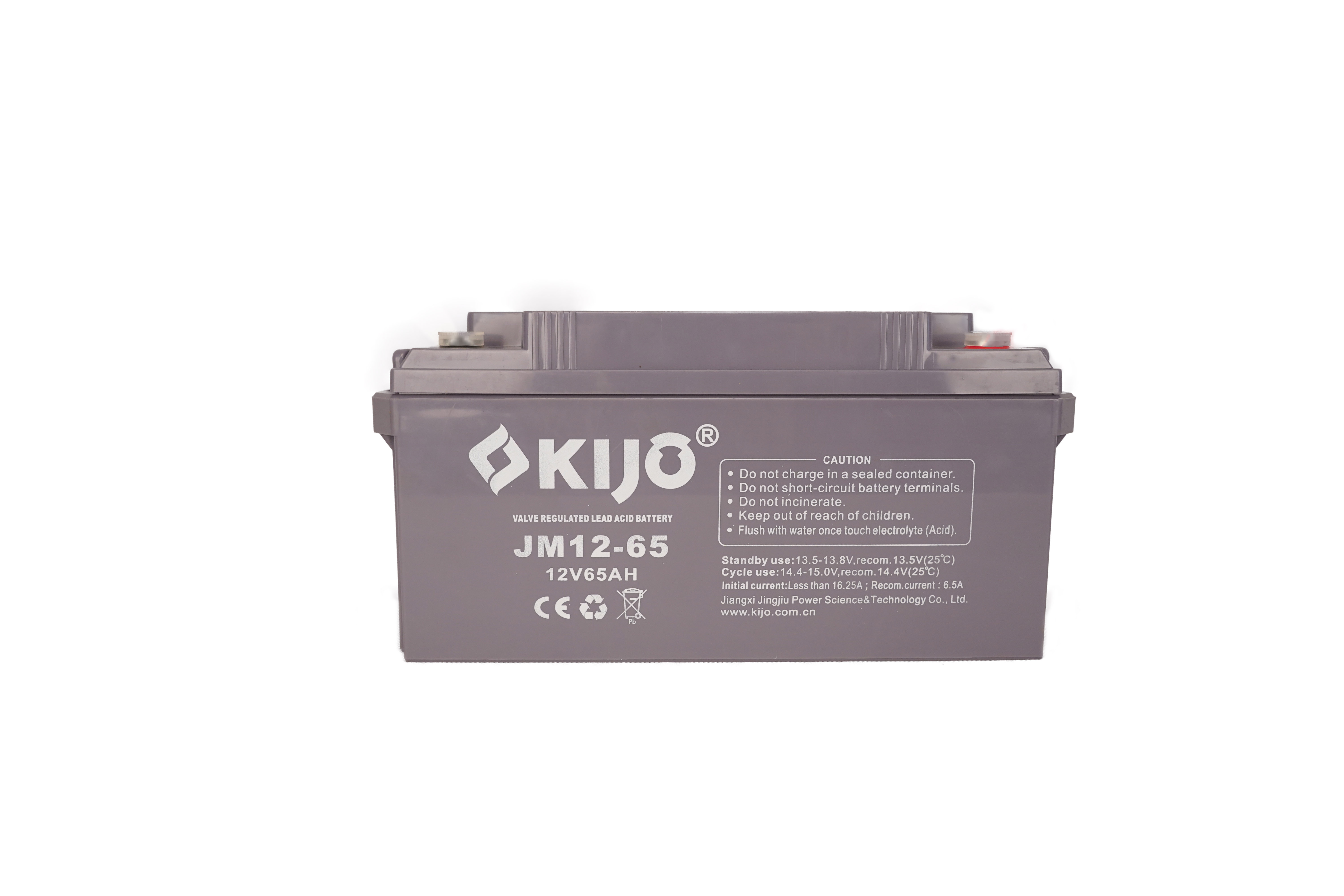

12V 65Ah AGM UPS Battery
This valve-regulated lead-acid (VRLA) battery is designed for standby and cycle use in UPS systems. Its AGM construction ensures no free electrolyte and maintenance-free operation.
Technical Specifications
Overview
High-Performance AGM UPS Battery
This 12V 65Ah AGM battery is engineered for reliability in both standby and cycle use applications, including UPS/EPS power supplies, medical equipment, and electric wheelchairs. Featuring advanced absorbent glass mat technology, it offers a maintenance-free operation with efficient gas recombination and low self-discharge rates. The robust design includes corrosion-resistant grids and silver-ion enhancement for an extended service life and superior performance in varying temperature conditions.
Core Specifications
- Nominal Voltage
- 12 V
- Nominal Capacity
- 65 Ah
- Design Life
- 10 years
- Terminal Type
- M8
- Approximate Weight
- 21 kg
- Container Material
- ABS
Performance Metrics
Capacity at Different Discharge Rates
| Discharge Rate | Capacity |
|---|---|
| 10 Hour Rate (6.50A to 10.8V) | 65Ah |
| 3 Hour Rate (17.5A to 10.8V) | 52.5Ah |
| 1 Hour Rate (42.6A to 10.5V) | 42.6Ah |
Operating Temperature Range
-20 °C
Min Temperature
50 °C
Max Temperature
Operational Guidelines
Recommended Charging Settings
- Standby Use: 13.5V to 13.8V (Recommended 13.5V at 25°C)
- Cycle Use: 14.4V to 15.0V (Recommended 14.4V at 25°C)
- Initial Current: Less than 16.25A
- Recommended Current: 6.5A
Key Features
- Battery Characteristics
- Maintenance-FreeAGM TechnologyLow Self-DischargeHigh Temperature PerformanceGas Recombination
Applications
Suitable Applications
UPS/EPS Power SupplyMedical EquipmentElectric WheelchairsLampsComputersToys
