Liquid Detergent Production Line
This automated production line is designed for manufacturing liquid detergents. It features filling, capping, and labeling stations to ensure high-volume output.
Technical Specifications
Overview
Industrial Liquid Detergent Production Line
This complete liquid detergent production line is engineered for both civil and industrial applications, including the manufacturing of dishwashing liquid, laundry detergent, shampoo, and shower gel. Utilizing a mature intermittent production process, the system ensures stable and reliable operation with strong scalability. The line supports flexible control options ranging from manual operation to fully centralized computer control, providing a robust solution for facilities with output requirements exceeding 5000 tons per year.
Technical Capabilities
Annual Production Capacity
5,000 tons/year
Minimum Annual Output
- Control Options
- Manual OperationSemi-AutomaticCentralized Computer Control
Process Workflow
Production Process Flow
- Material measurement and feeding into slurry tank
- Mixing, stirring, and chemical reaction
- Cooling and settling in static tank
- Air bubble removal for phase stability

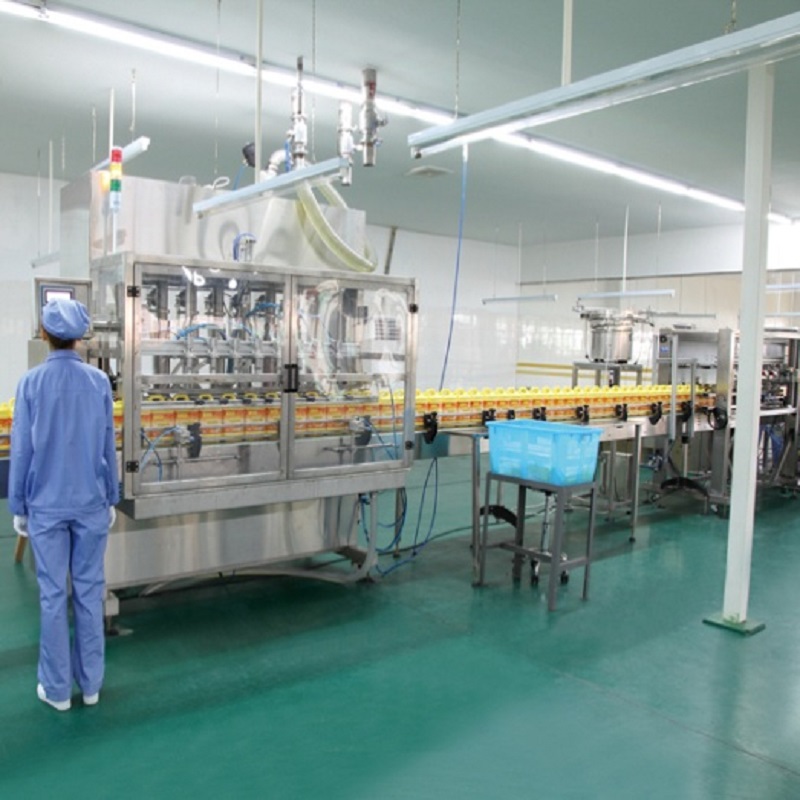

- Gravity-fed transport to filling line
- Packaging and storage
Equipment Features
Key System Components
Slurry TankStatic TankFilling LineStainless Steel ConveyorPrecision Filling Nozzles

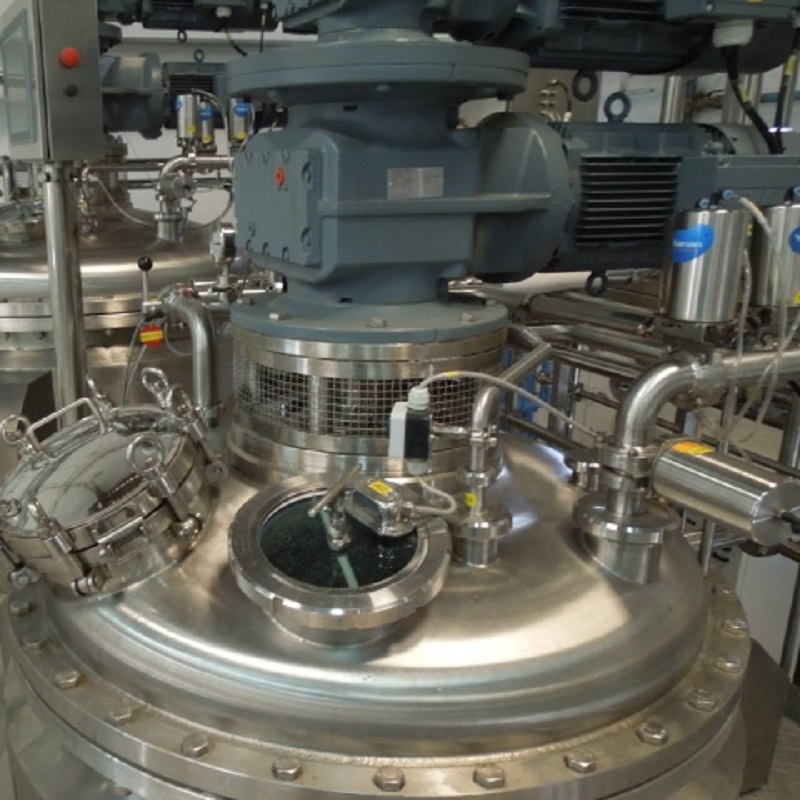

Reactor Specifications
| Feature | Description |
|---|---|
| Construction | Stainless Steel |
| Agitation | Top-mounted drive with gear reducer |
| Temperature Control | Jacketed vessel design |
| Monitoring | Integrated sight glass and instrumentation |
Services
Included Services
- Consultation
- System Design
- Equipment Supply
- Installation
- Debugging Training
