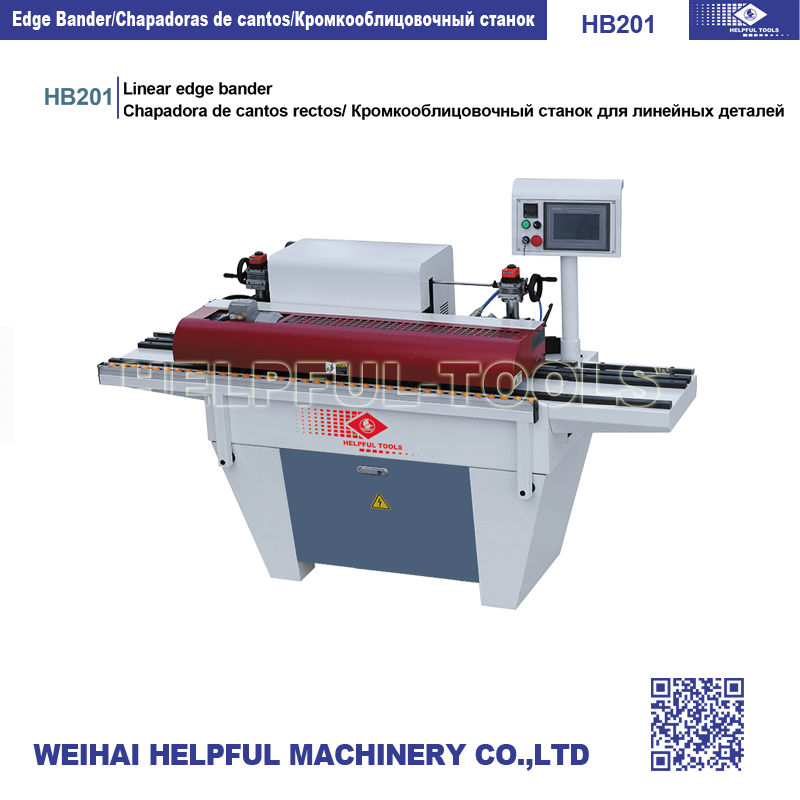

Linear Edge Bander for Woodworking
This linear edge bander applies edge banding to straight panels. It is designed for woodworking and furniture manufacturing, providing a clean and professional finish.
Technical Specifications
Overview
Professional Linear Edge Bander
This linear edge banding machine is engineered for precision application of edge banding to straight panels in woodworking and furniture manufacturing. It features a robust construction suitable for small to medium-sized workshops, offering consistent and high-quality finishing for materials such as particleboard, MDF, and plywood. The system handles various edge banding types including PVC, ABS, veneer, and melamine, ensuring a clean, durable, and professional edge finish.
Key Features
Operation Mode
Manual Operation
- Compatible Edge Materials
- PVCABSVeneerMelamine
Technical Specifications

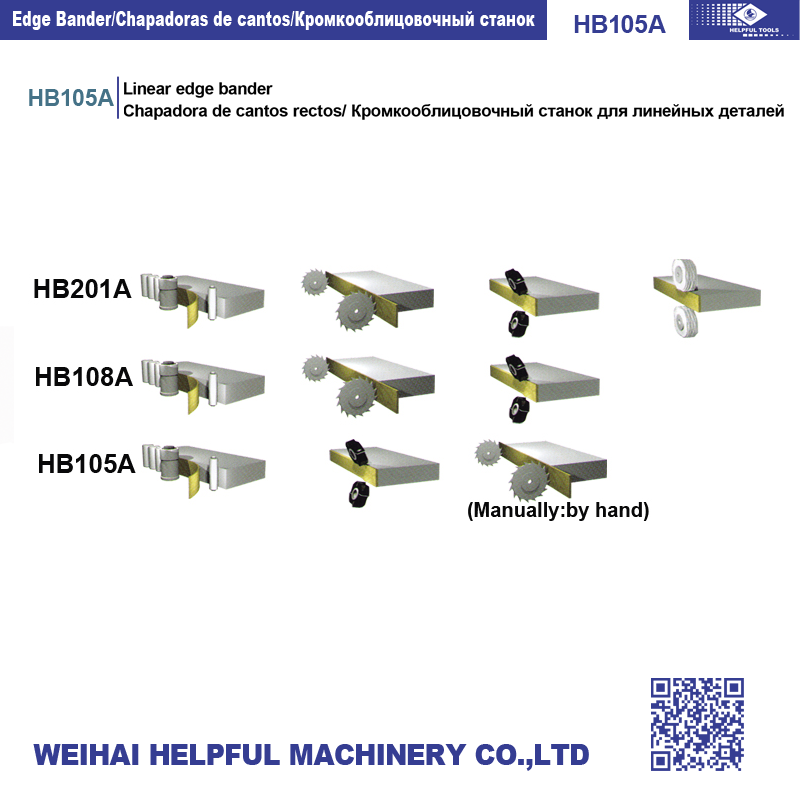

Model Comparison Table
| Specification | HB201 / HB201A | HB108 / HB108A | HB105 / HB105A |
|---|---|---|---|
| Max Worktable Size (mm) | 2320*800 | 2050*800 | 2050*800 |
| Min Panel Length (mm) | 280 | 280 | 160 |
| Panel Thickness (mm) | 10-45 | 10-45 | 10-45 |
| Edge Belt Thickness (mm) | 0.4-3 | 0.4-3 | 0.4-3 |
| Feeding Speed (m/min) | 6.3 | 6.3 | 6 |
| Total Power (w) | 2350 | 2170 | 2300 |
Performance Metrics
Trimming Motor Speed
11,000 rpm
Motor Speed
Logistics
- Packing Dimensions
- 2100 x 820 x 1120 mm
