Overview
Industrial Lime Briquetting Solution

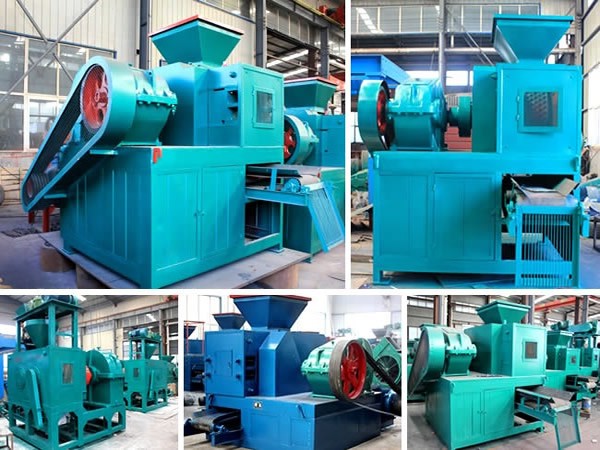

This lime briquetting machine is a next-generation solution designed to convert various industrial powders, including quicklime, coal, iron, and gypsum, into manageable briquettes. By utilizing advanced roller technology and high-pressure compression, it significantly improves material utilization, reduces waste, and enhances transport efficiency. The machine features a robust construction suitable for demanding environments in metallurgy, chemical processing, and power generation.
Applications
- Supported Materials
- Coal PowderIron PowderCokeAluminum PowderScrap IronSinterTonerCarbon DustSlagGypsumTailingsSludgeKaolinActivated CarbonQuicklime
Technical Specifications
Performance Metrics by Model
| Metric | FTM-360 | FTM-400 | FTM-500 | FTM-650 |
|---|---|---|---|---|
| Hourly Output (t/h) | 4 | 8 | 11 | 18 |
| Annual Output (million tons/y) | 1 | 2 | 3 | 5 |
| Power (kW) | 7.5 | 11-15 | 18.5-22 | 20-30 |
| Mainshaft Speed (r/min) | 18 | 15 | 13 | 13 |
Roller Configuration
- Roller material: 65Mn, 9cr2Mn, Alloy steel
- Roller breadth: 250mm - 336mm
- Roller diameter: 360mm - 650mm
Pressure Systems
Oblique Iron Constant PressureAxle Bed Pull RodHydraulic Type
- Spherical Size
- User defined
