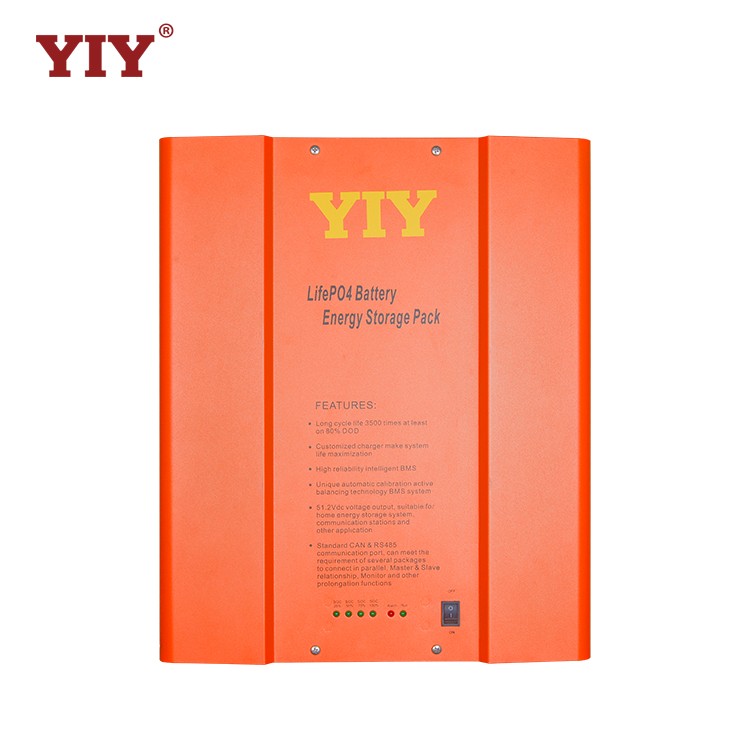

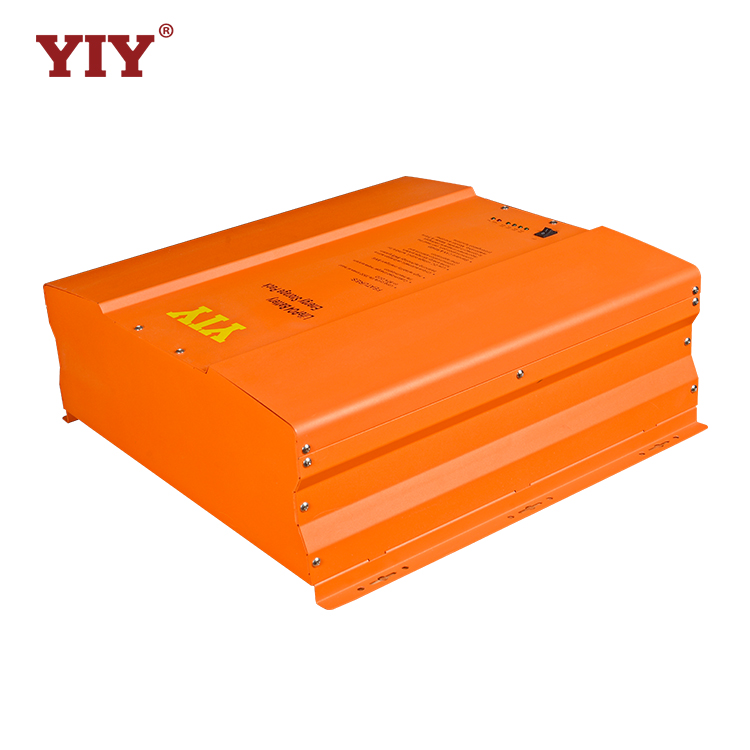

LiFePO4 Battery Energy Storage Pack, 2.56-10.24 kWh, 48V 100AH
This LiFePO4 battery pack provides reliable energy storage for home energy systems and communication stations. It features long cycle life and an intelligent battery management system.
Technical Specifications
Overview
High-Performance LiFePO4 Energy Storage

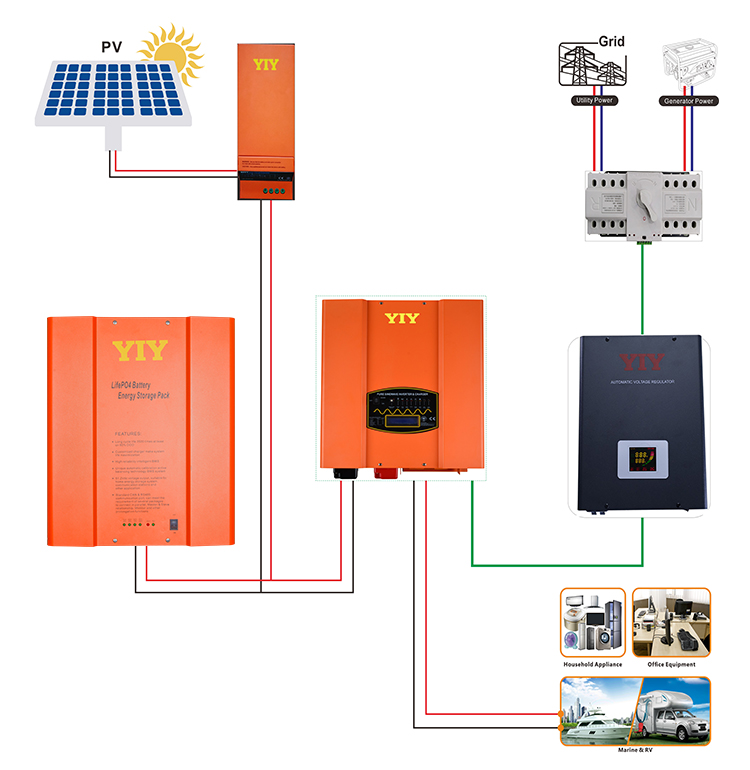

This LiFePO4 battery energy storage pack provides a reliable and efficient power solution for home energy storage, communication stations, and renewable energy systems. Featuring advanced Lithium Iron Phosphate technology, it offers a long cycle life of over 3,500 cycles at 80% Depth of Discharge (DOD). The system includes an intelligent Battery Management System (BMS) with active balancing, ensuring optimal performance, safety, and longevity for your energy storage needs.
Key Features
Performance Metrics
3,500 cycles
Cycle Life
48 V
Nominal Voltage
100 Ah
Capacity
- Core Features
- LiFePO4 ChemistryIntelligent BMSActive BalancingParallel Connection SupportLong Cycle LifeIndoor Rated
Technical Specifications
Model Specifications
| Model | Energy | Voltage | Capacity |
|---|---|---|---|
| LFP12200M | 2.56 kWh | 12.8V | 200Ah |
| LFP24100M | 2.56 kWh | 25.6V | 100Ah |
| LFP48100M | 5.12 kWh | 51.2V | 100Ah |
| LFP24400H | 10.24 kWh | 25.6V | 400Ah |
| LFP48200H | 10.24 kWh | 51.2V | 200Ah |
Communication & Connectivity

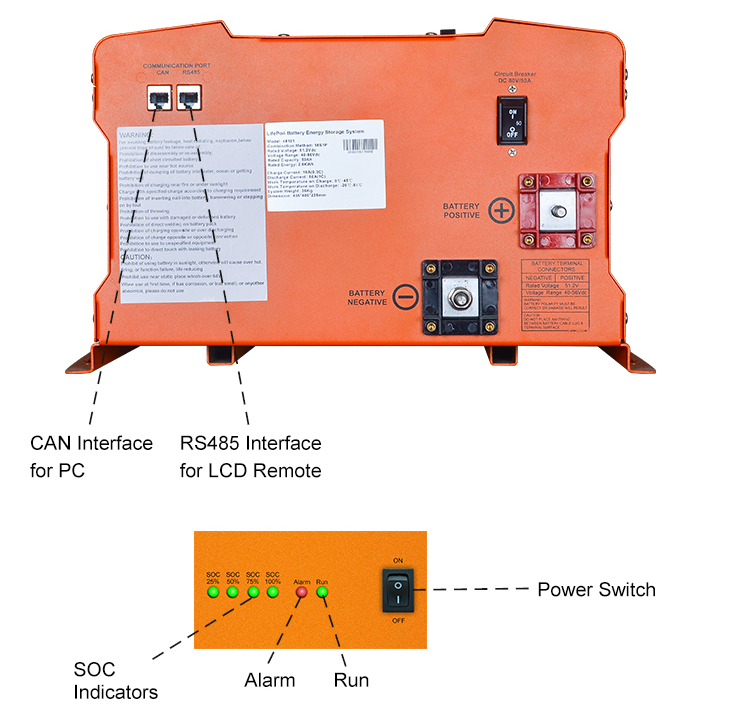

Communication Ports
- CAN Bus
- RS485
- Parallel Connection Support (Master/Slave)

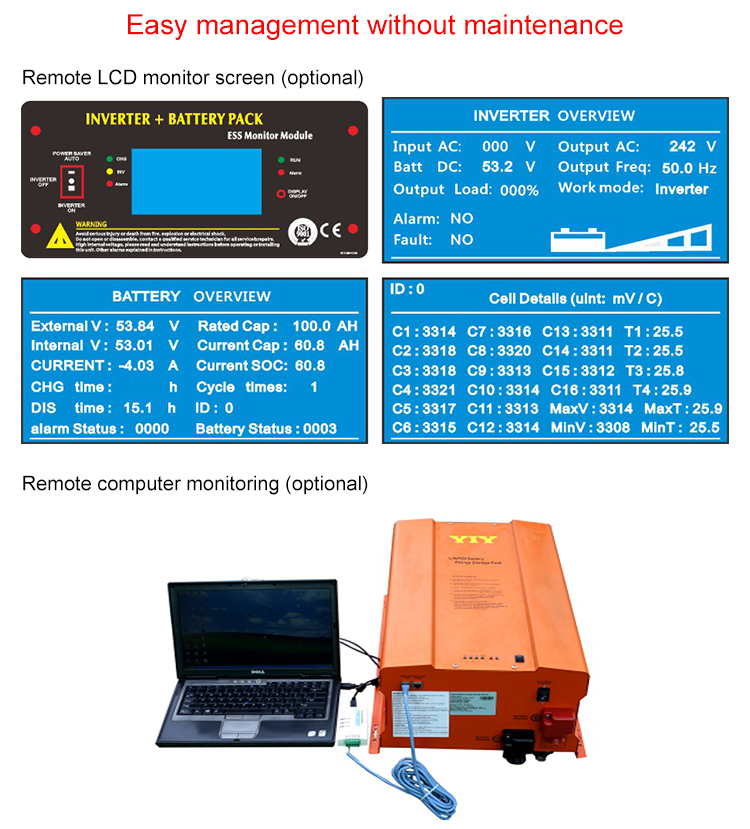

- Remote Monitoring Compatible
Operational Environment
Operational Environment
- Operating Temperature: 0-30°C
- Humidity: 65%
- Protection Rating: IP31
- Indoor Use Only
