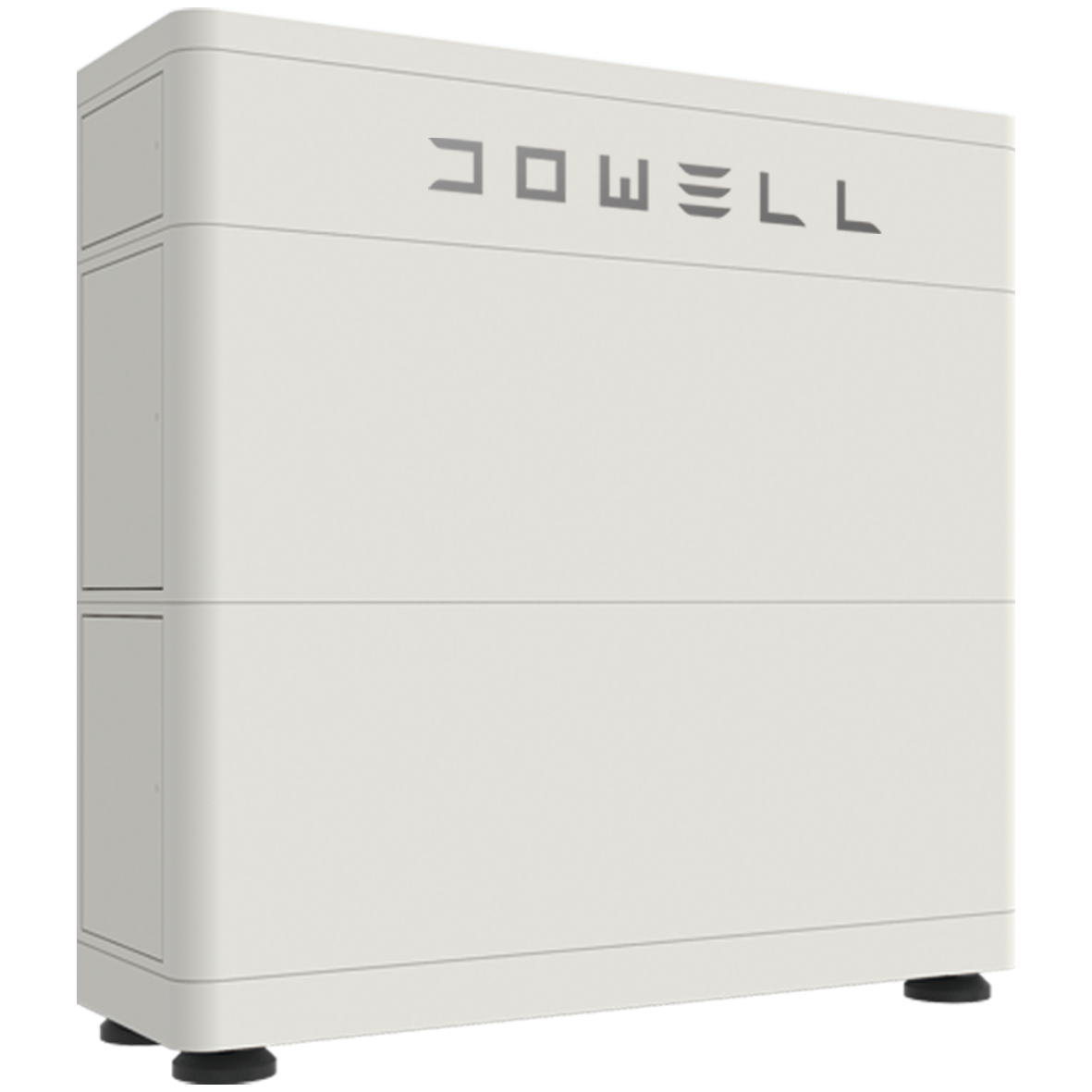

Residential Energy Storage Battery Pack
This battery pack series stores electricity for residential energy systems. The LFP cell technology ensures a long service life.

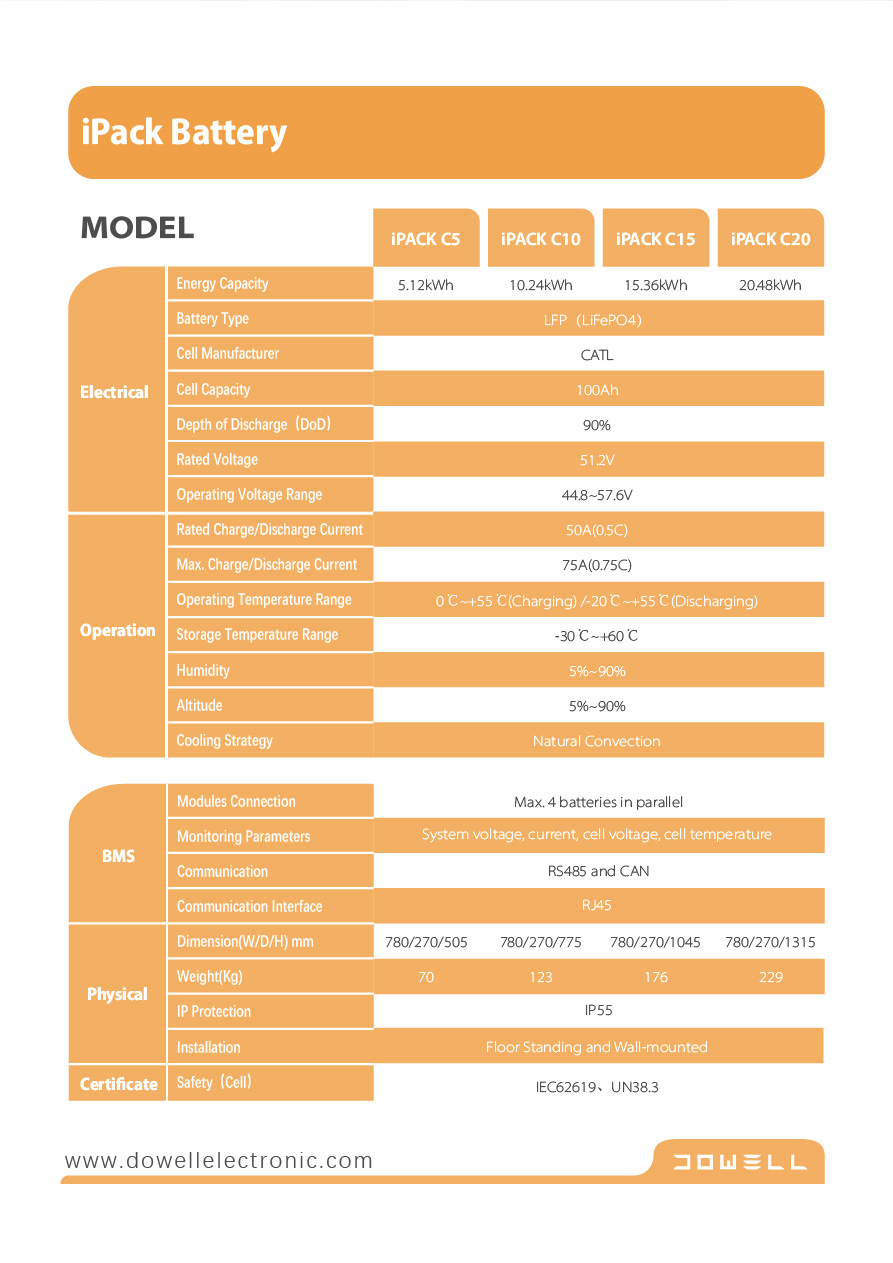

Technical Specifications
Overview
High-Performance Residential Energy Storage

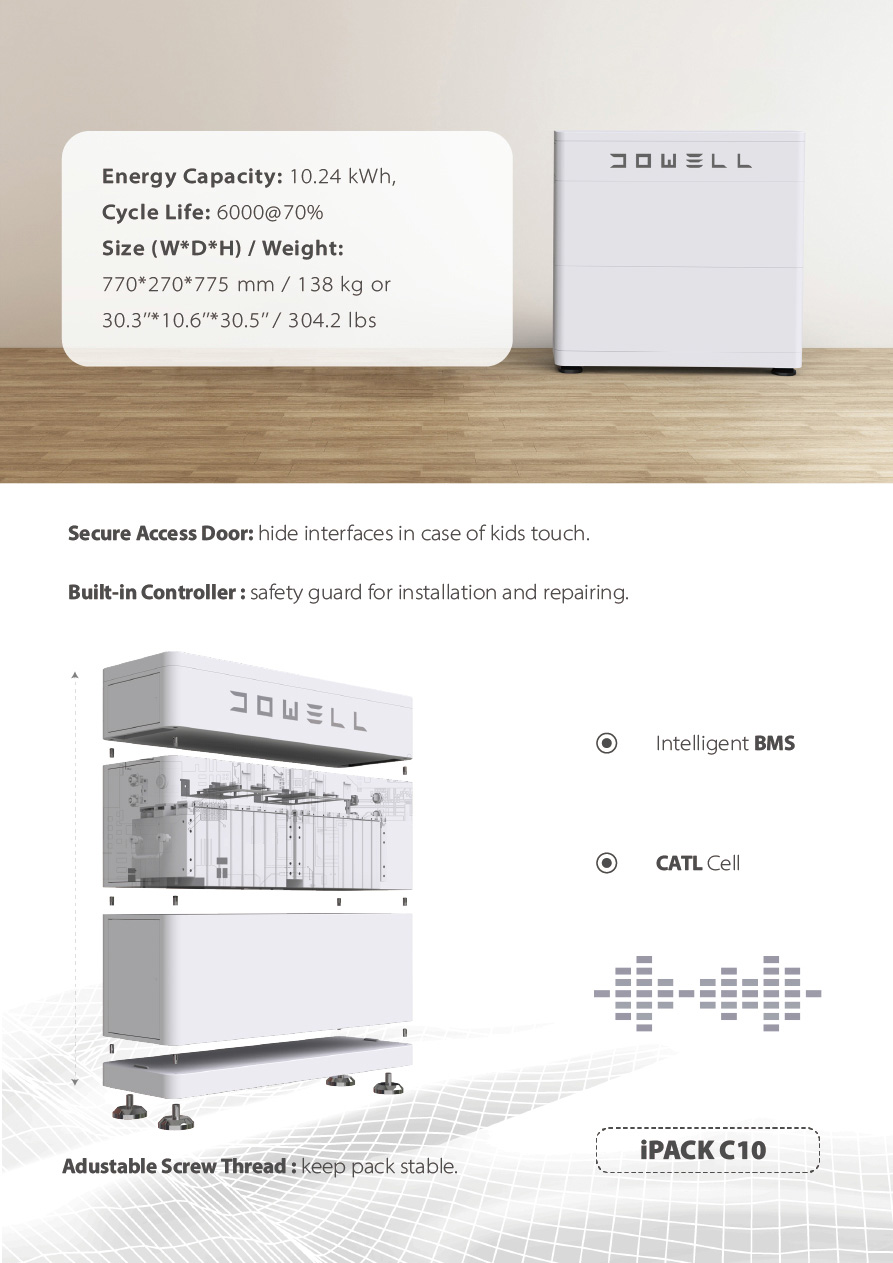

The iPack series offers a robust and scalable energy storage solution specifically designed for residential applications. Utilizing advanced Lithium Iron Phosphate (LFP) technology, these units ensure long-term reliability with a service life designed for 10 years. The system features a modular design, allowing for flexible capacity configuration, silent operation, and seamless integration into modern smart homes.
Electrical Specifications
- Rated Voltage
- 51.2 V
- Cell Capacity
- 100 Ah
- Depth of Discharge
- 90 %
- Max Charge/Discharge Current
- 75 A
Performance Metrics
Key Performance Indicators
6,000 cycles
Cycle Life
55 °C
Max Operating Temp
4 units
Max Parallel Units
Physical and Environmental
IP Protection
IP55
- Cooling Strategy
- Natural Convection
- Installation
- Floor StandingWall-mounted
Model Comparison
Model Specifications
| Model | Energy Capacity | Weight |
|---|---|---|
| IPACK C5 | 5.12 kWh | 70 |
| IPACK C10 | 10.24 kWh | 123 |
| IPACK C15 | 15.36 kWh | 176 |
| IPACK C20 | 20.48 kWh | 229 |
Certifications
- Safety Standards
- IEC62619UN38.3
