All-in-One Home Energy Storage System

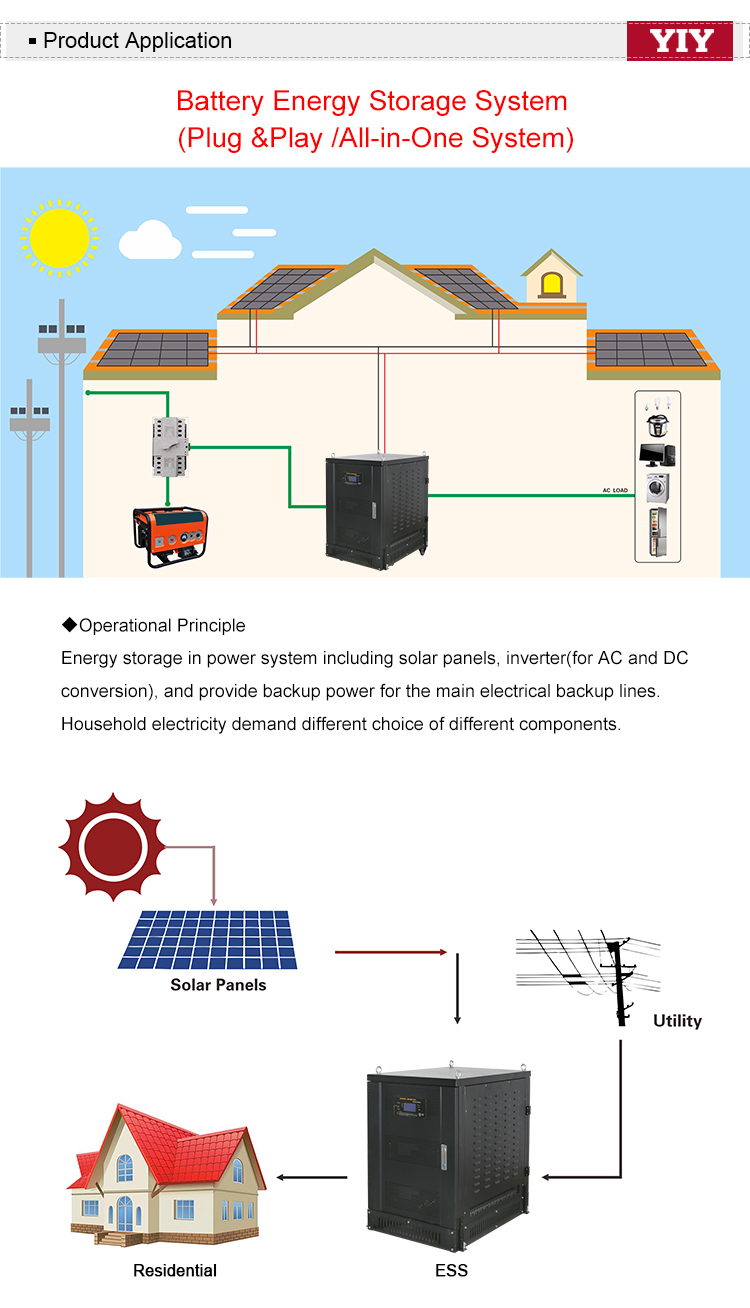

This all-in-one energy storage system is designed for residential applications. It optimizes energy usage by storing excess solar power and providing it when needed, reducing reliance on the grid and lowering electricity costs.
![[DEMO] Plug & Play all-in-one Energy Storage System for home - Image 1](https://cdn.merheinflare.com/public-site/products/demo-plug-play-all-in-one-energy-storage-system-for-home/1.jpg)
![[DEMO] Plug & Play all-in-one Energy Storage System for home - Image 2](https://cdn.merheinflare.com/public-site/products/demo-plug-play-all-in-one-energy-storage-system-for-home/0.jpg)
Technical Specifications
Overview
All-in-One Residential Energy Storage
This integrated ESS-10 system provides a comprehensive off-grid power solution, combining a high-performance inverter, MPPT charge controller, and LFP battery storage. Designed for plug-and-play installation, it optimizes energy from solar, utility, and generators to protect homes and businesses from power outages. Real-time monitoring via a mobile app ensures you can manage your personal power resources from anywhere.
Key Performance Metrics
Performance Highlights
6 kW
Inverter Power
10 kWh
Min. Energy Capacity
102.5 kWh
Max. Energy Capacity

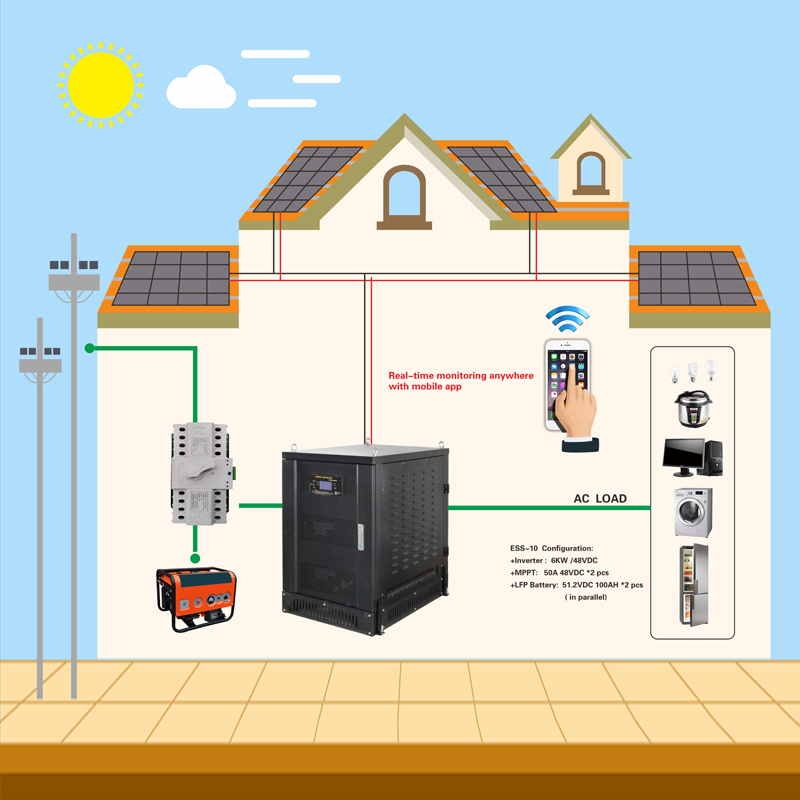

System Configuration
ESS-10 Standard Configuration
| Component | Specification |
|---|---|
| Inverter | 6KW / 48VDC Low Frequency Pure Sinewave |
| MPPT Controller | 50A 48VDC x 2 units |
| LFP Battery | 51.2VDC 100AH x 2 units (Parallel) |
| PV Input Range | 60-145Vdc |
Technical Features
System Features
- True Plug & Play All-in-One design
- 19-inch standard rack design for all modules
- Smart BMS for battery maintenance and management
- Central LCD display for real-time status monitoring
- Mobile App support for remote monitoring
- Pure Sinewave output for sensitive electronics
Applications
- Primary Applications
- Home Energy StorageRemote Access Network EquipmentMobile Communication BackupOff-Grid Solar SystemsCritical Business Backup
Battery Technology
Battery Chemistry
LFPLithium Iron PhosphatePrismatic Cells
Scalability
- Solar Input Options
- Optional configurations from 6kW to 18kW
