Lever Chain Hoist
This lever hoist features alloy steel hooks that deform under overload to prevent fracture. Its safety-lock hooks rotate 360 degrees for versatile operation.
Technical Specifications
Overview
Professional Lever Chain Hoist
This industrial-grade lever chain hoist is designed for versatile lifting and pulling applications. It features a robust alloy steel construction that ensures safety under load, including an overload protection mechanism that prevents sudden fractures. The closed-body design protects internal components from environmental pollution, while the 360-degree rotating hooks and ergonomic handle allow for effortless, precise operation.
Certifications
- Safety Certifications
- CETUVRheinland
Performance Metrics
Capacity Range
250 kg
Min Rated Capacity
6,000 kg
Max Rated Capacity
Technical Specifications
Model Specifications
| Model | Rated Load (kg) | Net Weight (kg) | Chain Size |
|---|---|---|---|
| HSH-KA250 | 250 | 2.2 | 4*12 |
| HSH-KA500 | 500 | 3.2 | 4*12 |
| HSH-KA1500 | 1,500 | 7.6 | 7*21 |
| HSH-KA3000 | 3,000 | 14 | 9*27 |
| HSH-KA6000 | 6,000 | 22 | 9*27 |

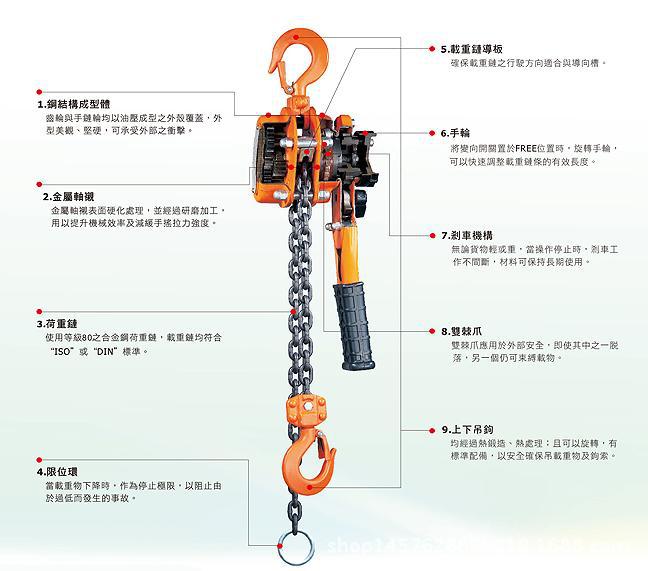

Construction
Key Features
- Anti-aging high-strength alloy steel hooks
- 360-degree rotating hooks with safety locks
- Closed-type housing for contamination protection
- Double pawl brake system for redundancy
- Grade 80 load chain per ISO/DIN standards
- Surface-hardened and ground metal bushings
