LED Indicator Signal Light
This LED indicator signal light provides clear signaling for industrial equipment. It features energy-efficient LED technology and a durable construction for long-lasting performance.
Technical Specifications
Overview
High-Performance LED Signaling

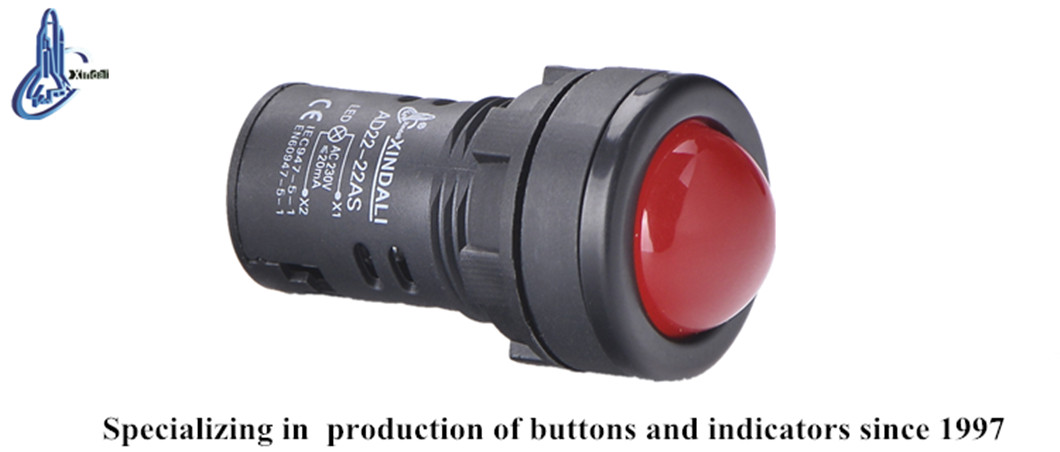

The AD22-22AS series represents a modern advancement in indicator technology, utilizing high-brightness LED chips to replace traditional incandescent and neon lamps. Designed for industrial reliability, these indicators offer a compact, lightweight form factor with significantly lower power consumption and a longer operational lifespan. The robust polycarbonate lens provides superior anti-surge performance and high intensity, making it ideal for demanding environments like power plants, telecommunications, and heavy machinery.
Key Metrics
Performance Highlights
230 V
Standard Voltage
20 mA
Max Current
2.5 kV
Dielectric Strength
Technical Specifications
- Insulation Resistance
- ≥2MΩ
- Voltage Wave Allowed
- ±20%
- Working Frequency Voltage
- 2.5kV (AC valid value), 1min

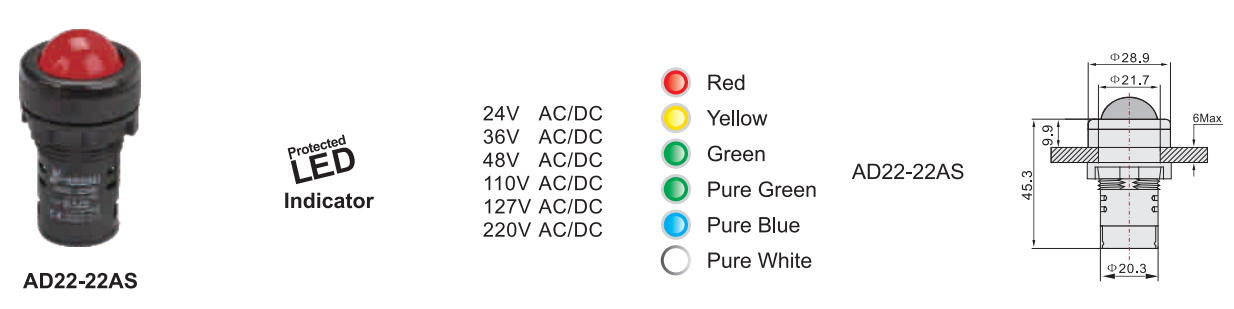

Physical Dimensions
Mounting Dimensions
| Dimension Type | Measurement |
|---|---|
| Head Diameter | Φ28.9 mm |
| Body Diameter | Φ21.7 mm |
| Installation Diameter | Φ20.3 mm |
| Total Length | 45.3 mm |
| Height Above Panel | 9.9 mm |
| Max Panel Thickness | 6 mm |
Configuration Options
Available Colors
RedYellowGreenPure GreenPure BluePure White
Supported Voltages (AC/DC)
- 24V
- 36V
- 48V
- 110V
- 127V
- 220V
Applications
- Target Industries
- Electrical PowerTelecommunicationsMachine ToolsWatercraftTextilesPrintingMine Machinery
Compliance
- Standards & Certifications
- CEIEC947-5-1EN60947-5-1
Design Features
Construction Features
- High-intensity polycarbonate lampshade
- Superior anti-surge performance
- Safe and convenient bolt-type connectors
- Compact short-base design (S-type)
- Available in double-color and buzzer variants
