LED Indicator Light with Marking
This LED indicator light provides visual signaling in control panels and machinery. It is suitable for electrical power applications.
Technical Specifications
Overview
High-Performance LED Pilot Indicator
The AD22 series LED indicators utilize high-brightness LED chips as a light source, offering a long-life and low-consumption alternative to traditional incandescent and neon lamps. Designed for reliability and aesthetic appeal, these indicators feature a high-intensity polycarbonate lampshade with superior anti-surge performance. The bolt-type connector design ensures a safer and more convenient installation process for professional electrical applications.
Technical Performance
Key Performance Metrics
2.5 kV
Working Frequency Voltage
2 MΩ
Insulation Resistance
- Voltage Wave Allowance
- ±20%
Installation & Dimensions
Mounting Specifications

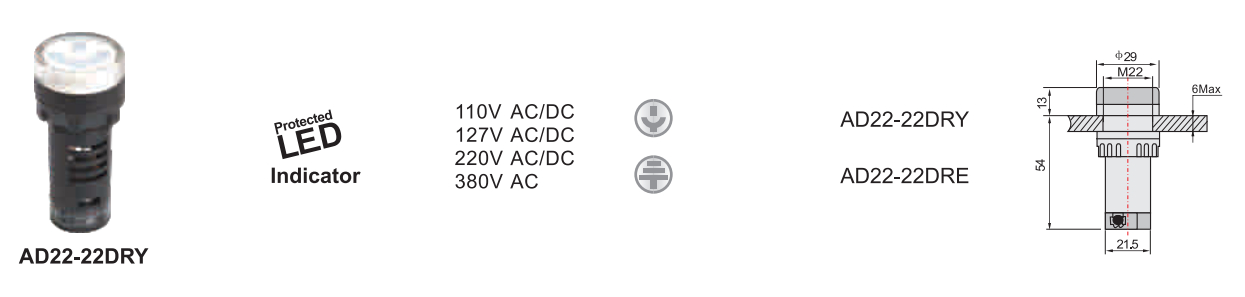

| Parameter | Dimension |
|---|---|
| Mounting Hole Diameter | M22 / 22mm |
| Head Diameter | φ29mm |
| Total Length | 54mm |
| Protruding Height | 13mm |
| Base Diameter | 21.5mm |
| Max Panel Thickness | 6mm |

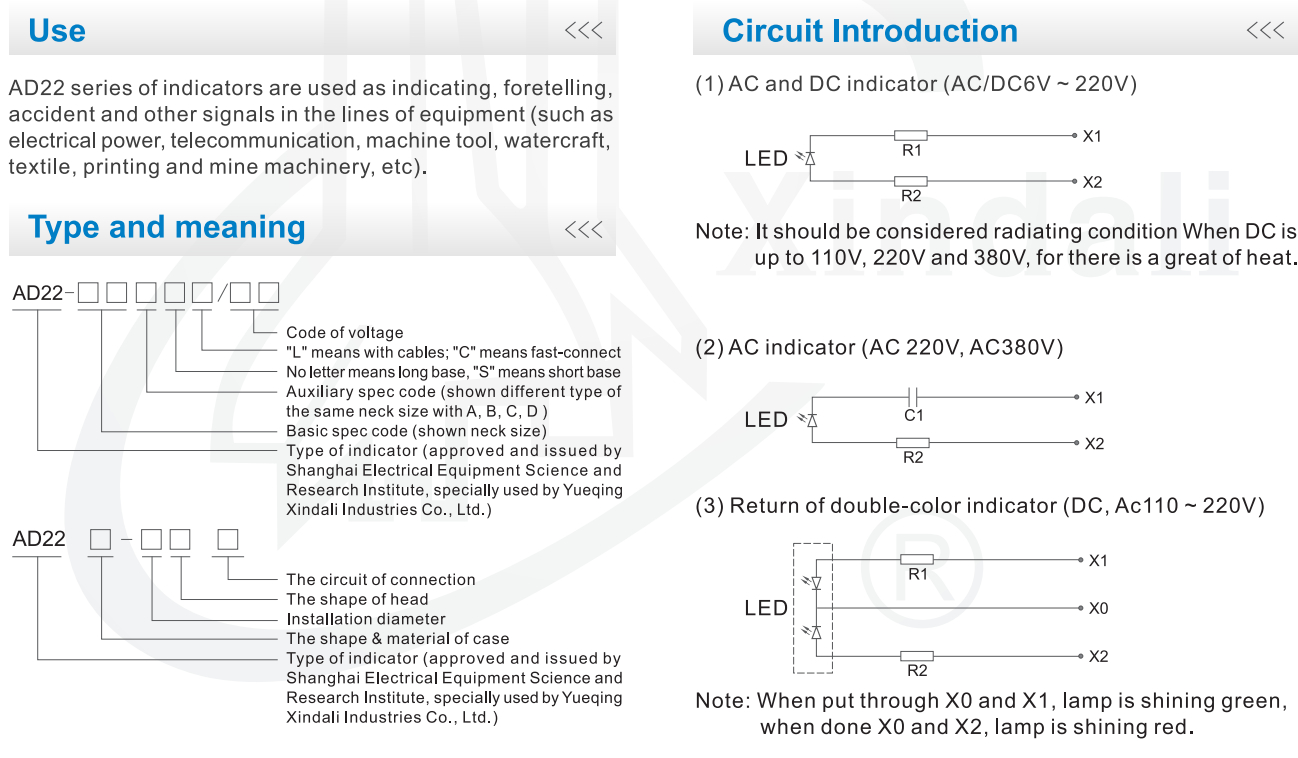

Electrical Configuration
Connection Variants
| Code | Description |
|---|---|
| L | With cables |
| C | Fast-connect |
| No Letter | Long base |
| S | Short base |
- Supported Voltages
- 6V-220V AC/DC110V AC/DC127V AC/DC220V AC380V AC
Application Areas
Industry Applications
- Electrical Power Systems
- Telecommunications Equipment
- Machine Tools
- Watercraft & Marine
- Textile Machinery
- Printing Equipment
- Mining Machinery
Product Features
Key Features
Long LifeLow ConsumptionHigh BrightnessAnti-SurgePolycarbonate Lens
Primary Functions
- Status Indicating
- Accident Foretelling
- Signal Signaling
