Technical Specifications
Overview
Reliable Visual and Audible Signaling

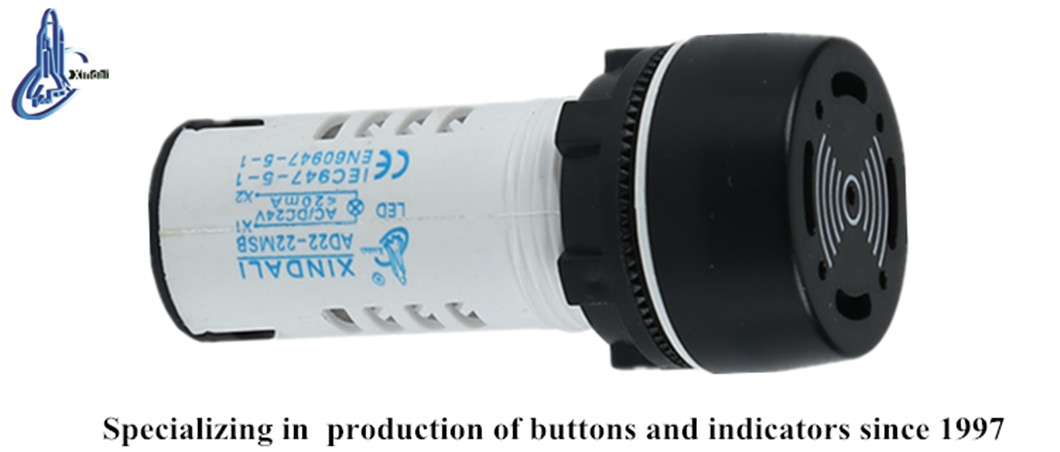

The AD22 series LED indicator light with an integrated buzzer provides a dual-alert system for industrial control panels and machinery. Utilizing high-brightness LED chips, it offers a long-lasting, low-consumption alternative to traditional incandescent and neon lamps. Designed with a durable polycarbonate lampshade, it features excellent anti-surge performance and a secure bolt-type connector for easy installation.
Technical Performance
Key Performance Metrics
20 mA
Max Current
2.5 kV
Dielectric Strength
2 MΩ
Insulation Resistance
- Voltage Wave Allowance
- ±20%
Electrical Specifications
Available Operating Voltages
- 24V AC/DC
- 36V AC/DC
- 48V AC/DC
- 110V AC
- 220V AC
- 380V AC

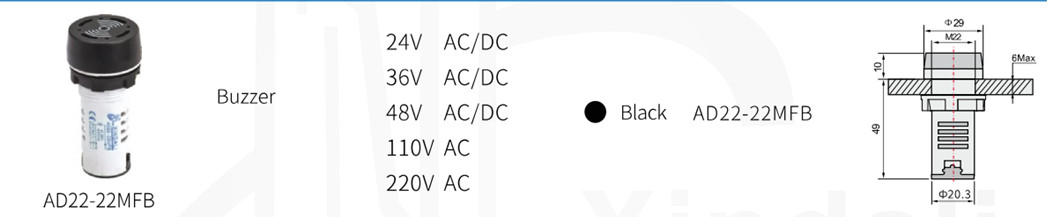

Physical Dimensions
Mounting Dimensions
| Feature | Measurement |
|---|---|
| Mounting Hole Diameter | 22mm |
| Top Head Diameter | 29mm |
| Total Height | 49mm |
| Max Panel Thickness | 6mm |
| Base Diameter | 20.3mm |
Compliance & Standards
- Standards Compliance
- IEC 947-5-1EN 60947-5-1CE
Application Areas
Recommended Industries
- Electrical Power Systems
- Telecommunications
- Machine Tools
- Watercraft & Marine
- Textile Machinery
- Printing Equipment
- Mining Machinery
Product Features
Core Advantages
High BrightnessLow Power ConsumptionAnti-SurgeIntegrated BuzzerLong Service Life
