Technical Specifications
Overview
Advanced Visual and Audible Signaling
The AD22-30MSD is a high-performance LED indicator combined with an integrated buzzer, designed to provide both bright visual illumination and clear audible alerts. Utilizing long-life LED chips, it offers low power consumption and high reliability, making it an ideal modern replacement for traditional incandescent or neon lamps. Its robust polycarbonate construction ensures excellent anti-surge performance and durability in demanding industrial environments.
Technical Performance
Key Technical Metrics
2.5 kV
Working Frequency Voltage
2 MΩ
Insulated Resistance
- Voltage Wave Allowance
- ±20%
- Light Source
- High-brightness LED shining chip
Electrical Specifications
- Supported Operating Voltages
- 24V AC/DC36V AC/DC48V AC/DC110V AC/DC127V AC/DC220V AC/DC380V AC

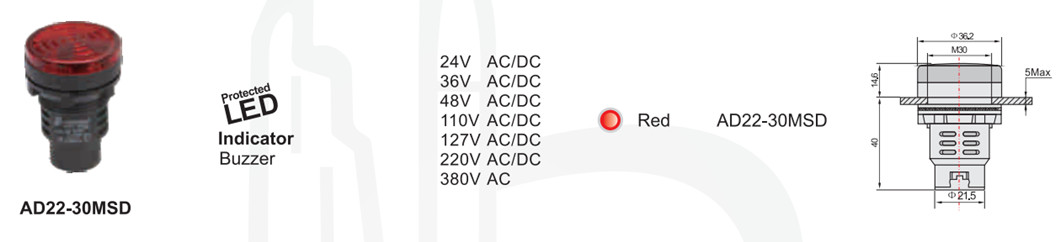

Physical Dimensions
Mounting Specifications
| Parameter | Dimension |
|---|---|
| Installation Diameter | M30 / 30mm |
| Head Diameter | 36.2mm |
| Base Diameter | 21.5mm |
| Total Height | 40mm |
| Height Above Panel | 14.6mm |
| Max Panel Thickness | 5mm |
Application Areas
Common Applications
- Electrical Power Systems
- Telecommunications Equipment
- Machine Tool Status Indication
- Watercraft and Marine Systems
- Textile and Printing Machinery
- Mining Machinery Alarms
Features & Construction
Product Features
Long LifeLow ConsumptionAnti-SurgeHigh BrightnessCompact DesignEasy Installation
- Material & Safety
- Lampshade made of high-intensity polycarbonate with bolt-type connectors for enhanced safety.
