Technical Specifications

Overview

High-Brightness LED Indicator Lights

These high-brightness LED indicator lights are engineered for reliable status signaling in industrial control panels and distribution boxes. Designed with versatility in mind, they support a wide range of input voltages and are available in multiple colors to suit various facility monitoring needs. The robust construction ensures durability, with optional protection grades for demanding environments.

Technical Specifications

Cutout Sizes

16mm
22mm

Protection Grades

IP40IP65 (with cover)

Supported Input Voltages

AC/DC 12V
AC/DC 24V
AC/DC 36V
AC/DC 48V
AC 110V
AC 220V
AC 240V

Light Source: LED chip
Available Colors: WhiteYellowRedBlueGreen

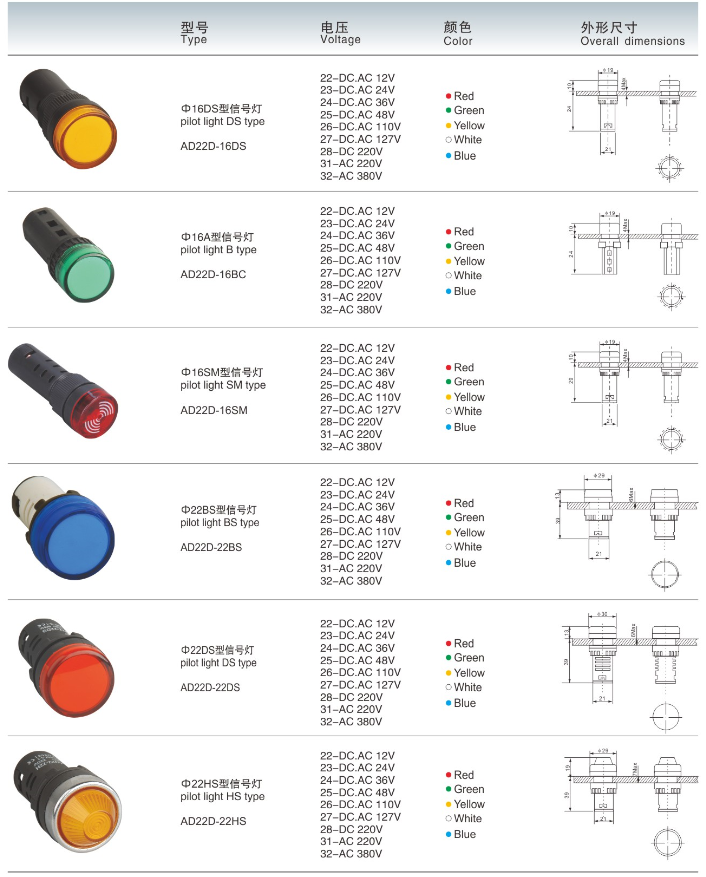

Technical diagram showing various AD22D series pilot light models and their specifications — Technical reference guide for AD22D series indicator lights, detailing model types and voltage configurations.

Application

Typical Applications: Panel boxesControl boardsFacility status indication

Interested in Sourcing This Product?

Submit a request to connect with verified manufacturers who produce this product.

LED Indicator Light for Control Panels

This high-brightness LED indicator light is commonly used in panel boxes and control boards to indicate facility status. It is available in multiple colors and voltage options.

Request a Quote Download PDFPDF

LED Indicator Light for Control Panels - Image 1
