Latching Relay with Multiple Control Points
This latching relay is controlled by buttons from multiple locations. It can replace three-way or crossbar switches, offering simplified and faster installation due to its parallel button connection using only two wires.
Technical Specifications
Product Overview

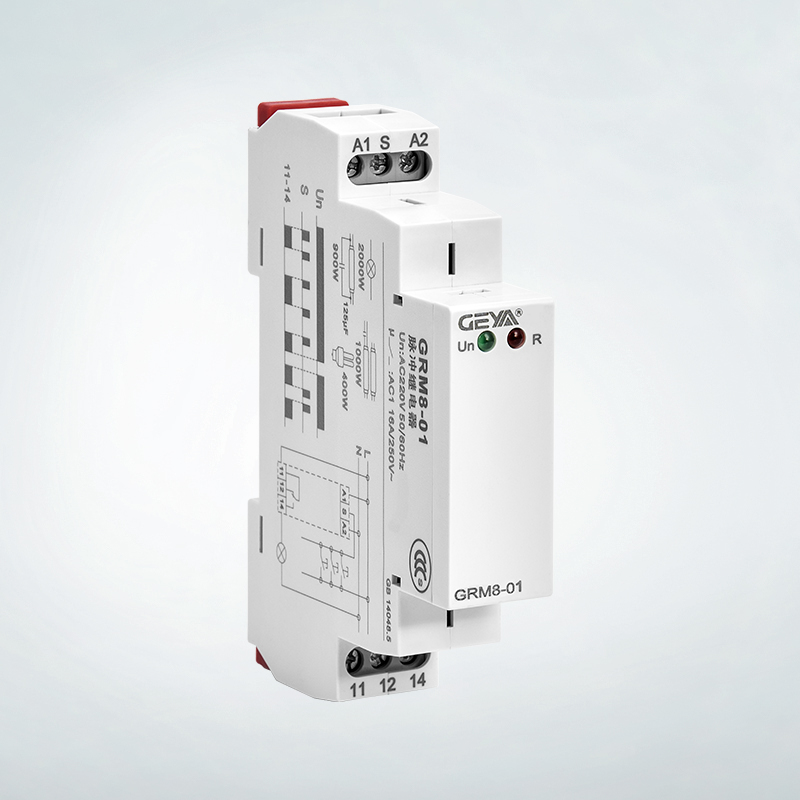

Professional Latching Relay
This pulse relay is designed for reliable control in AC 220V 50/60Hz electrical systems. Engineered for versatility, it supports a wide range of load types including incandescent, fluorescent, and inductive loads. The compact 1-module design allows for efficient installation on standard 35mm DIN rails, while integrated LED indicators provide clear status monitoring for maintenance.
Electrical Specifications
Switching Capacity
16 A
Rated Current
250 V
Rated Voltage
Supported Load Types
| Load Type | Max Power |
|---|---|
| Incandescent Lamp | 2,000 |
| Fluorescent Lamp | 1,000 |
| Inductive Load | 900 |
| Capacitive Load (125µF) | 400 |
- Voltage Range
- AC230V, AC/DC12V-240V
Installation & Compliance
- Mounting Type
- 35mm DIN rail
- Module Width
- 1-MODULE
- Compliance Standards
- GB 14048.5
Features
Status Monitoring
- LED indicator for Un
- LED indicator for R
- LED indicator for S
Connection Terminals
- Control Inputs: A1, S, A2
- Output Connections: 11, 12, 14
