Latching Electromagnet Solenoid Coil for Switchgear
This latching electromagnet solenoid coil is designed for switchgear operation. It is used for locking purposes to prevent false actions in high voltage equipment.
Technical Specifications
Product Overview
High-Performance Latching Electromagnet
This latching electromagnet solenoid coil is engineered for high-voltage switchgear assemblies, providing critical locking mechanisms to prevent operational errors. Designed for reliability, it features low energy consumption and is suitable for indoor cabinet door interlocks. Its robust construction ensures consistent performance in demanding power distribution environments.

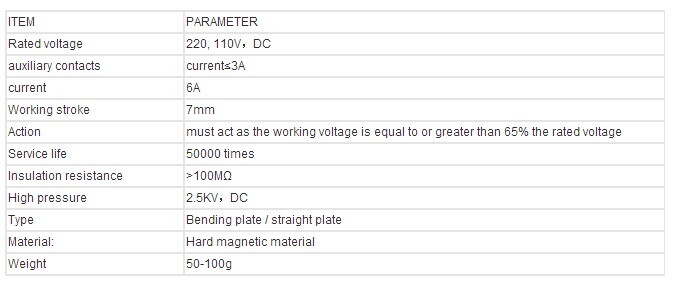

Technical Specifications
Available Configurations
Bending PlateStraight Plate
- Rated Voltage
- AC/DC 220V110V
- Coil Current
- 6 A
- Auxiliary Contacts Current
- ≤3A
- Working Stroke
- 7 mm
- Action Threshold
- ≥ 65% of rated voltage
- Service Life
- 50000 cycles
- Insulation Resistance
- >100MΩ
- High Pressure Withstand
- 2.5KV, DC
Environmental Ratings
- Protection Degree
- IP30IP41
- Operating Temperature
- -5°C to 40°C
- Humidity Tolerance
- ≤ 50% at 40°C; up to 90% at 20°C
- Altitude Limit
- 2000 m
