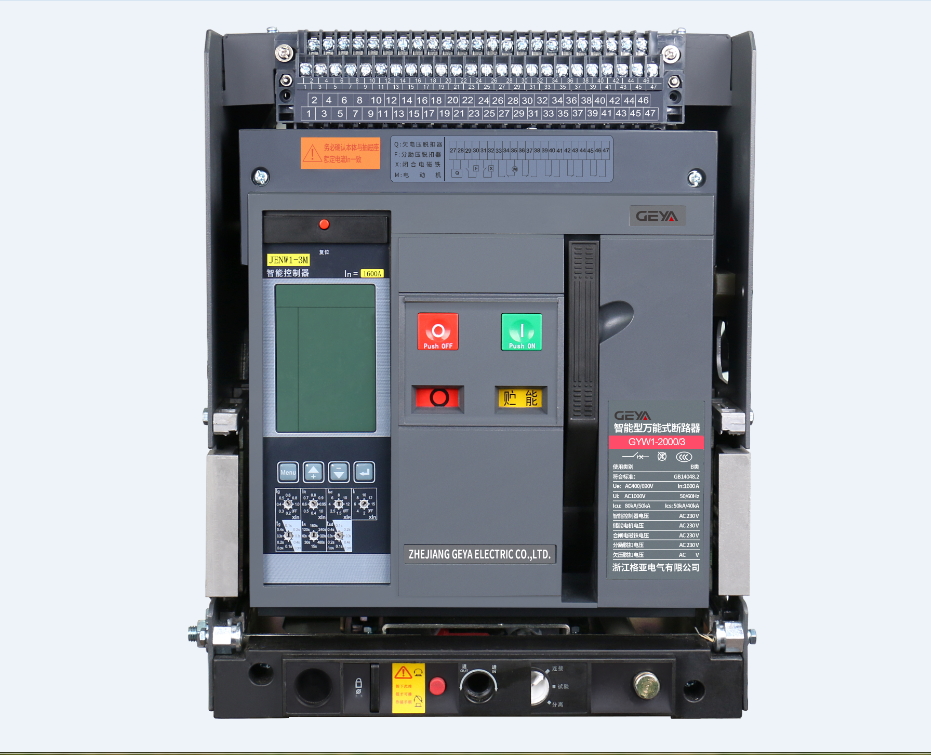

Intelligent Air Circuit Breaker 1600A
This intelligent air circuit breaker is designed for AC 400/690V systems. It complies with GB14048.2 standards and features a rated current (In) of 1600A.
Technical Specifications
Overview
Intelligent Air Circuit Breaker 1600A
This intelligent air circuit breaker is engineered for robust performance in AC 400/690V power distribution systems. Equipped with an advanced intelligent controller and intuitive push-button operation, it ensures reliable energy management and protection. Designed for industrial and commercial applications, it features comprehensive release mechanisms including undervoltage, shunt, and closing electromagnet capabilities.
Technical Specifications
Rated Current (In)
1,600 A
Rated Current
Short-Circuit Breaking Capacity (Icu)
- 85kA
- 50kA
- 40kA
- Insulation Voltage (Ui)
- 1000 V
- Operating Voltage (Ue)
- AC 400VAC 690V
Control & Operation
Release Mechanisms
Undervoltage ReleaseShunt ReleaseClosing Electromagnet
- Control Voltage
- 230 V
- Intelligent Controller
- JENV1-3M
Compliance
- Compliance Standards
- GB14048.2
